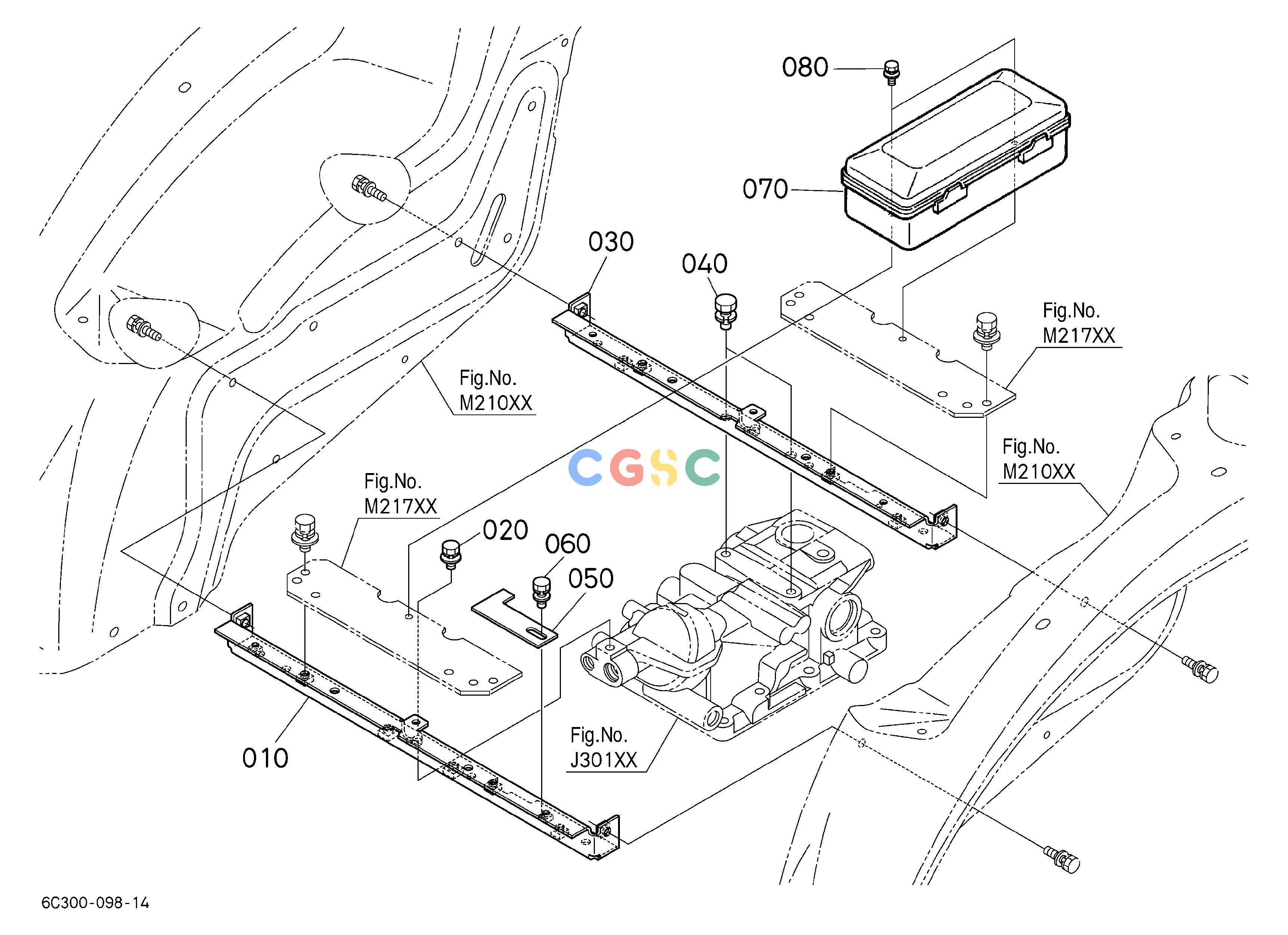

久保田零件查询M21200 FENDER STAY HOOD/BONNETEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
789 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C30051383
|
[1] |
STAY,FRONT
|
2.5630(lbs); 1.165
|
| 010. |
6C30051384
|
[1] |
STAY,FRONT
|
2.5366(lbs); 1.153
|
| 010. |
6C30051385
|
[1] |
STAY,FRONT
|
2.5366(lbs); 1.153
|
| 020. |
0112350816
|
[1] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 020. |
0112550820
|
[1] |
BOLT,W SEMS
|
0.0308(lbs); 0.014
|
| 030. |
6C30051393
|
[1] |
STAY,REAR
|
2.5300(lbs); 1.150
|
| 030. |
6C30051394
|
[1] |
STAY,REAR
|
2.5300(lbs); 1.150
|
| 040. |
0112351020
|
[2] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 050. |
6C30051410
|
[1] |
PLATE
|
0.1276(lbs); 0.058
|
| 060. |
0112550820
|
[1] |
BOLT,W SEMS
|
0.0308(lbs); 0.014
|
| 070. |
6C04052790
|
[1] |
CASE,TOOLS
|
0.5060(lbs); 0.230
|
| 080. |
0102550625
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 080. |
0102550616
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 080. |
0102550620
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
