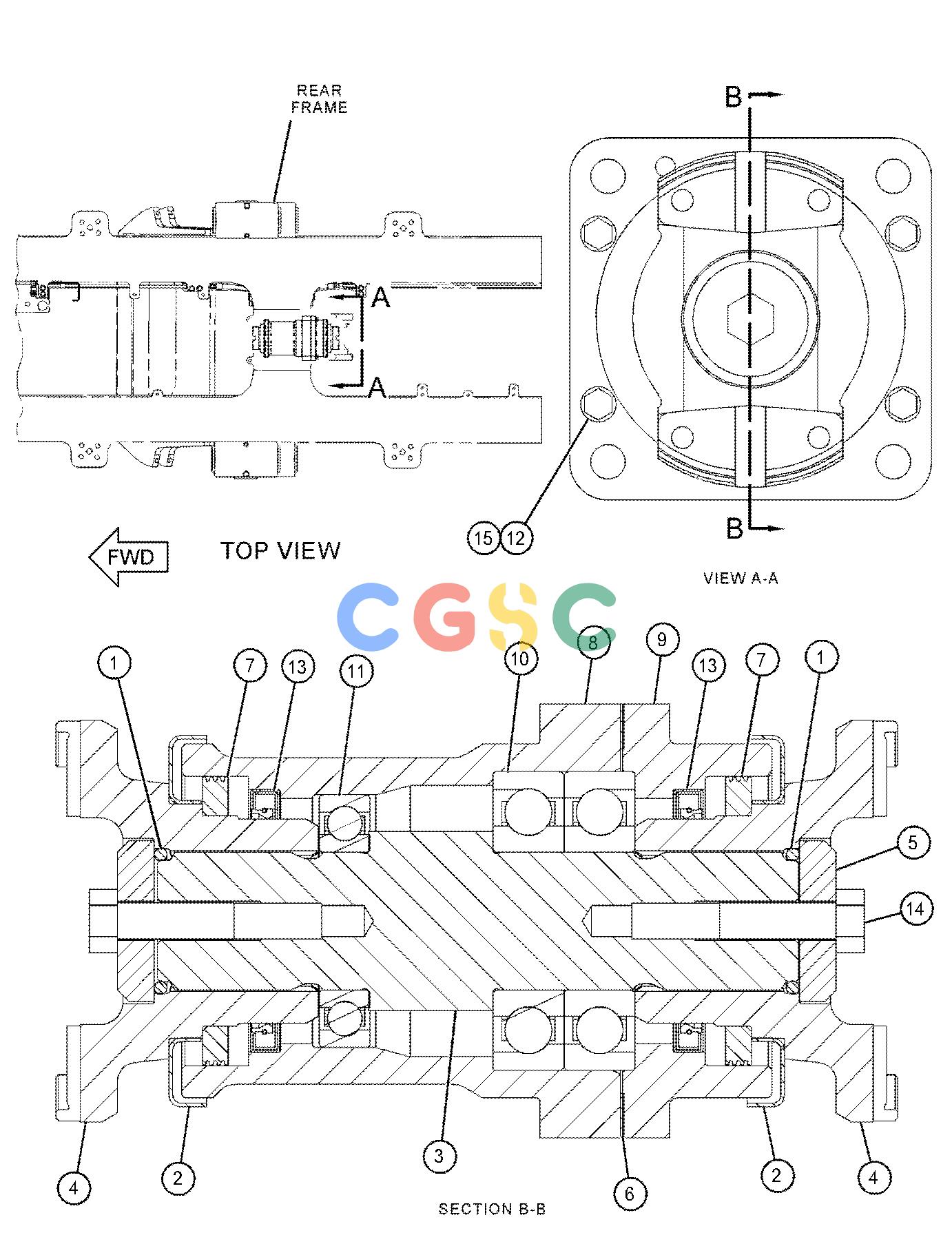

卡特零件查询（725C） 457-2767: SHAFT GP-DRIVE
广数供应链运营团队, 14 02月, 2025，浏览：
961 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2U-1574 | [2] | SEAL-O-RING | |
| 2. | 105-5088 | [2] | GUARD | |
| 3. | 131-8401 | [1] | SHAFT | |
| 4. | 142-1280 | [2] | YOKE-DRIVE | |
| 5. | 142-1281 | [2] | RETAINER | |
| 6. | 142-1282 | [1] | SHIM PACK | |
| 7. | 142-2670 | [2] | RING-SEAL | |
| 8. | 457-2768 | [1] | HOUSING | |
| 9. | 457-2769 | [1] | HOUSING | |
| 10. | 131-1010 | [2] | BALL BEARING | |
| 11. | 1F-2771 | [1] | BALL BEARING | |
| 12. | 4L-9337 | [4] | BOLT(3/8-16X1.5-IN) | |
| 13. | 5P-1086 | [2] | SEAL-LIP TYPE | |
| 14. | 7X-0350 | [2] | BOLT(5/8-11X3.5-IN) | |
| 15. | 8T-4896 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
