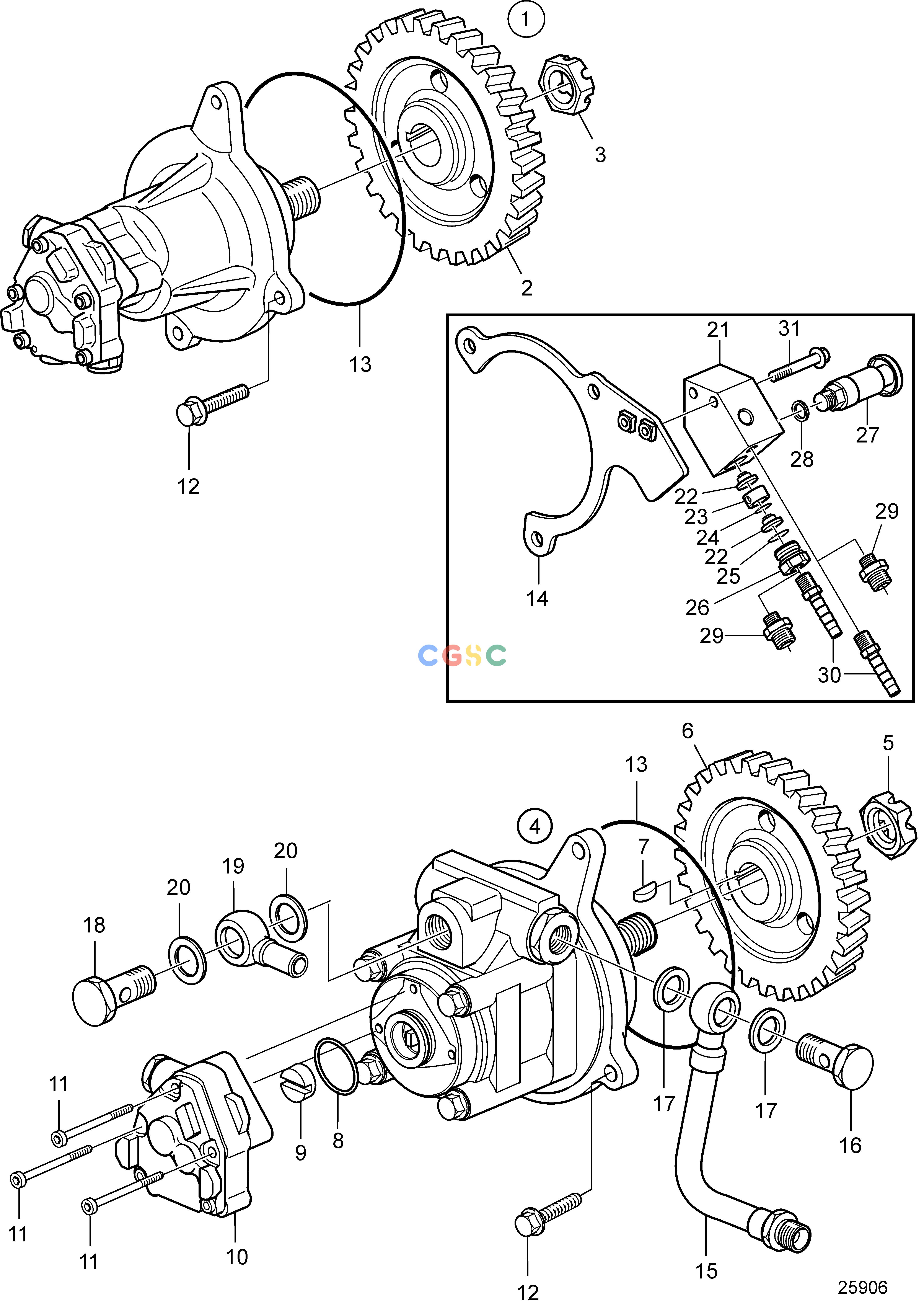

沃尔沃零件查询D13C1-A MP; D13C2-A MP; D13C3-A MP; D13C4-A MP; D13C6-A MPFuel SystemFuel PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
146 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22677520
|
[1] |
Fuel pump
|
Without servo pump., Compl
|
| 2. |
8131292
|
[1] |
Gear
|
|
| 3. |
20367040
|
[1] |
Castle nut
|
|
| 4. |
20902698
|
[1] |
Tandem pump
|
With servo pump., 16L/min, Compl
|
| 5. |
20367040
|
[1] |
Castle nut
|
|
| 6. |
8131292
|
[1] |
Gear
|
|
| 7. |
1505357
|
[1] |
Woodruff key
|
|
| 8. |
85103703
|
[1] |
O-ring
|
|
| 9. |
85103779
|
[1] |
Constant velocity jo
|
|
| 10. |
20997341
|
[1] |
Fuel pump
|
|
| 11. |
85103780
|
[3] |
Hex. socket screw
|
|
| 12. |
994386
|
[1] |
Flange screw
|
L=55mm
|
| 12. |
984736
|
[2] |
Flange screw
|
L=30mm
|
| 13. |
977030
|
[1] |
O-ring
|
|
| 14. |
21559978
|
[1] |
Bracket
|
For engine without heat exchanger
|
| 15. |
21406534
|
[1] |
Servo pipe
|
|
| 16. |
941686
|
[1] |
Hollow screw
|
|
| 17. |
982724
|
[2] |
Gasket
|
|
| 18. |
191620
|
[1] |
Hollow screw
|
|
| 19. |
1598185
|
[1] |
Banjo nipple
|
|
| 20. |
982508
|
[2] |
Gasket
|
|
| 21. |
3889704
|
[1] |
Housing
|
|
| 22. |
244834
|
[2] |
Non-return valve
|
|
| 23. |
8148331
|
[1] |
Spacer sleeve
|
|
| 24. |
976971
|
[1] |
O-ring
|
|
| 25. |
1526474
|
[1] |
O-ring
|
|
| 26. |
21168724
|
[1] |
Nipple
|
|
| 27. |
3837393
|
[1] |
Hand pump
|
|
| 28. |
947622
|
[1] |
Gasket
|
|
| 29. |
977677
|
[2] |
Nipple
|
|
| 30. |
3825000
|
[2] |
Hose nipple
|
|
| 31. |
994386
|
[2] |
Flange screw
|
|
