日立零件查询（MA200-G）REGULATOR (R) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
350 次

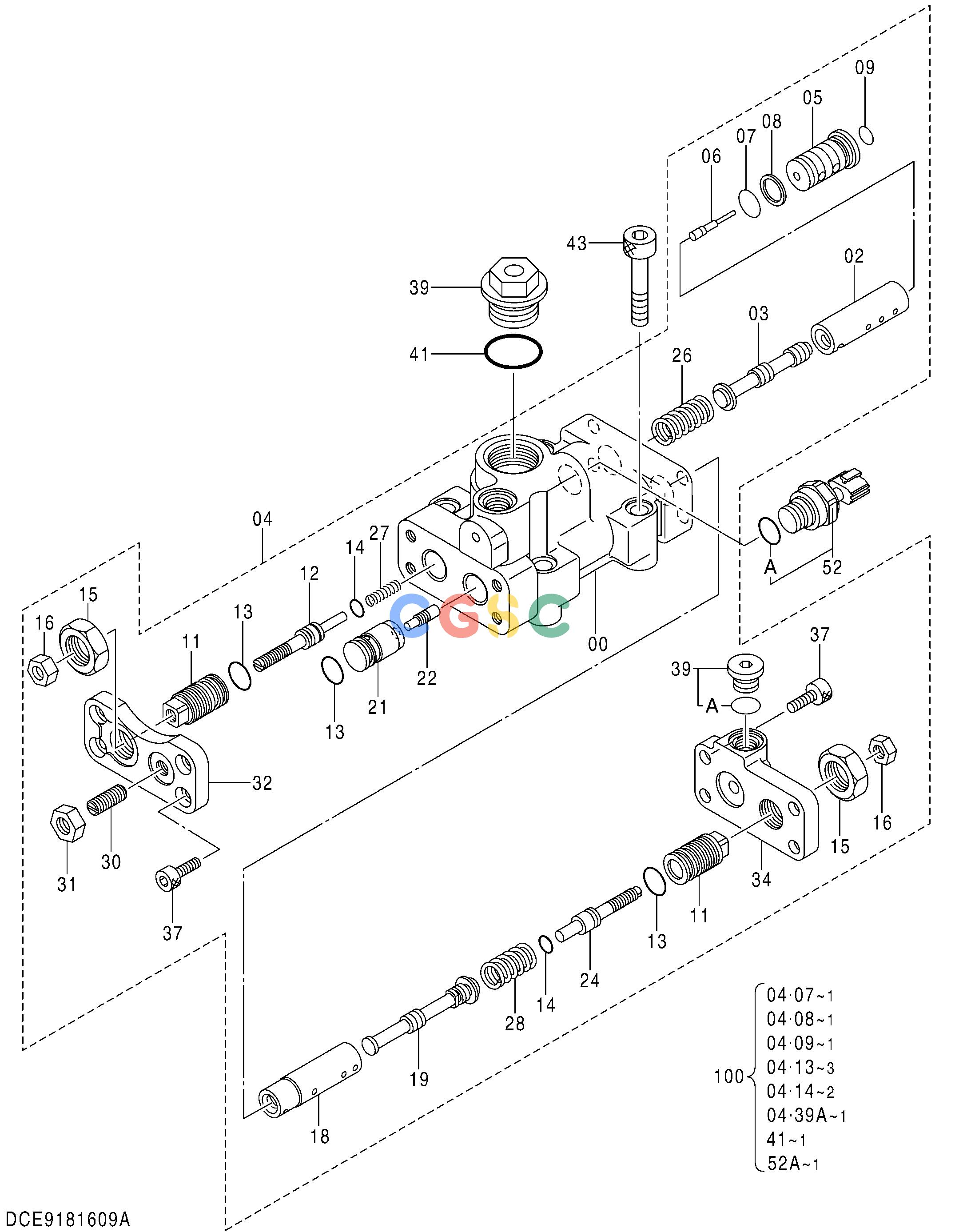

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9181609 | [1] | REGULATOR;R | I9198936 |
| | 9198936 | [1] | REGULATOR;R | |
| 04. | 9317133 | [1] | REGULATOR;ASSY | |
| 04-00. | 1033182 | [1] | CASING;REG. | |
| 04-02. | 4179155 | [1] | SLEEVE | |
| 04-03. | 4179156 | [1] | SPOOL | |
| 04-05. | 4422202 | [1] | CYL.;LOAD | |
| 04-06. | 4422188 | [1] | PISTON | |
| 04-07. | 4150302 | [1] | O-RING | |
| 04-08. | 4085607 | [1] | RING;BACK-UP | |
| 04-09. | 4180349 | [1] | O-RING | |
| 04-11. | 4179161 | [2] | STOPPER | |
| 04-12. | 4368619 | [1] | STOPPER | |
| 04-13. | 4342843 | [3] | O-RING | |
| 04-14. | 4342841 | [2] | O-RING | |
| 04-15. | 4068898 | [2] | NUT | |
| 04-16. | M500807 | [2] | NUT | |
| 04-18. | 4346522 | [1] | SLEEVE | |
| 04-19. | 4346521 | [1] | SPOOL | |
| 04-21. | 4451498 | [1] | CYL. | |
| 04-22. | 4179171 | [1] | PISTON | |
| 04-24. | 4347107 | [1] | STOPPER;INNER | |
| 04-26. | 4194176 | [1] | SPRING;COMPRES. | |
| 04-27. | 4423345 | [1] | SPRING;COMPRES. | |
| 04-28. | 4350928 | [1] | SPRING;COMPRES. | |
| 04-30. | 4265964 | [1] | SCREW;SET | |
| 04-31. | J950010 | [1] | NUT | |
| 04-32. | 4433327 | [1] | COVER | |
| 04-34. | 3075775 | [1] | COVER;REAR | |
| 04-37. | M340820 | [8] | BOLT;SOCKET | |
| 04-39. | 9134110 | [1] | PLUG | |
| 04-39A. | 957366 | [1] | O-RING | |
| 39. | 4447264 | [1] | PLUG | |
| 41. | 4342846 | [1] | O-RING | |
| 43. | M341056 | [4] | BOLT;SOCKET | |
| 52. | 4436536 | [1] | SENSOR;PRES. | |
| 52A. | 4153095 | [1] | O-RING | |
| 100. | 4455719 | [1] | KIT;SEAL | |
