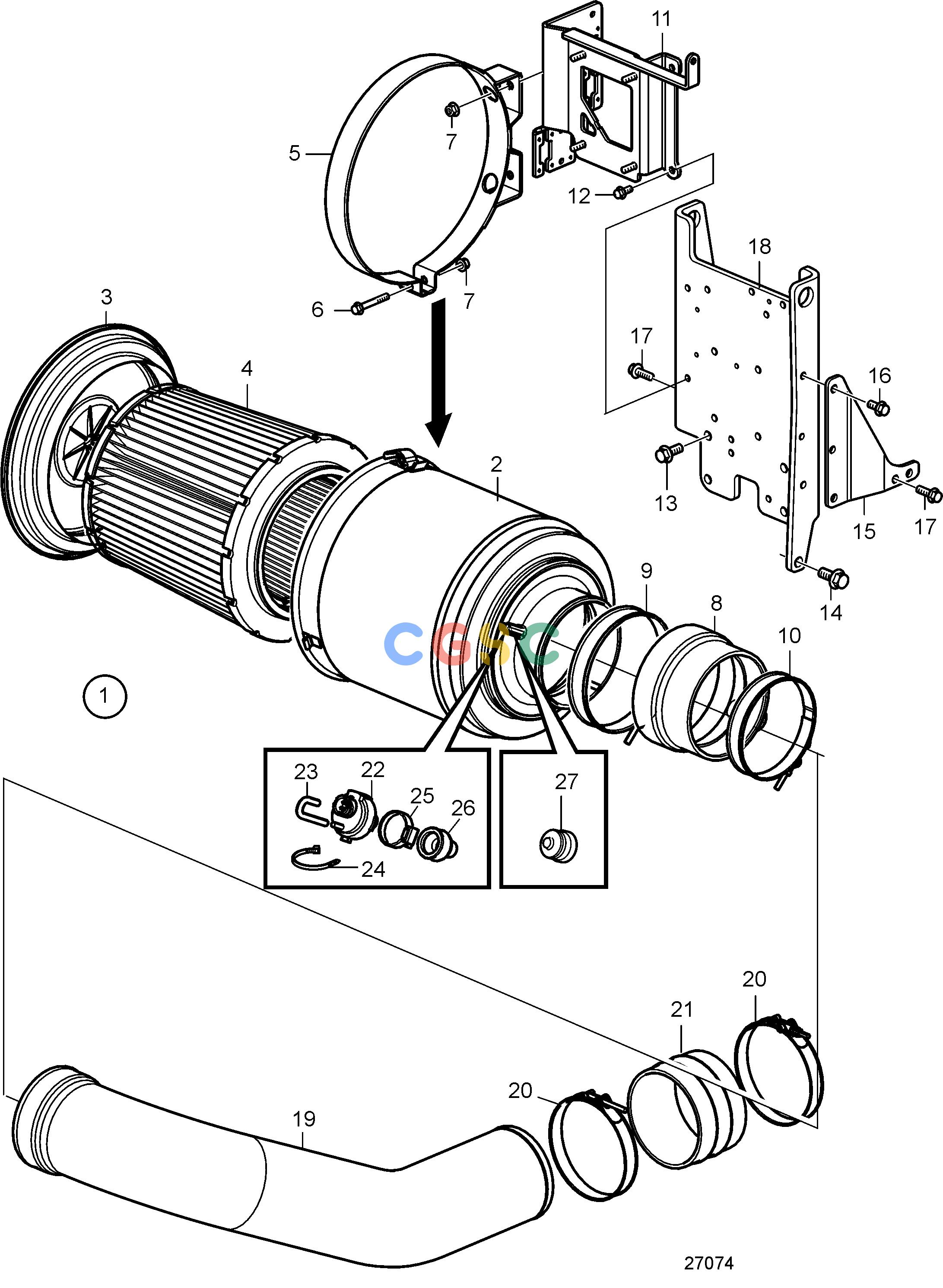

沃尔沃零件查询D13C1-A MP; D13C2-A MP; D13C3-A MP; D13C4-A MP; D13C6-A MPIntake and Exhaust SystemAir FilterEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
228 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22088516
|
[1] |
Air cleaner
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
21196919
|
[1] |
Air filter insert
|
|
| 5. |
21194368
|
[1] |
Mounting strap
|
|
| 6. |
994386
|
[1] |
Flange screw
|
|
| 7. |
990940
|
[2] |
Flange nut
|
|
| 8. |
21254093
|
[1] |
Rubber collar
|
|
| 9. |
1674223
|
[1] |
Hose clamp
|
|
| 10. |
1544736
|
[1] |
Hose clamp
|
|
| 11. |
21184837
|
[1] |
Bracket
|
|
| 12. |
984733
|
[2] |
Flange screw
|
|
| 13. |
984815
|
[4] |
Flange screw
|
|
| 14. |
984851
|
[1] |
Flange screw
|
|
| 15. |
|
|
|
|
| 16. |
984752
|
[2] |
Flange screw
|
|
| 17. |
946472
|
[4] |
Flange screw
|
|
| 18. |
|
|
|
|
| 19. |
21166628
|
[1] |
Air tube
|
|
| 20. |
1544735
|
[2] |
Hose clamp
|
|
| 21. |
21390540
|
[1] |
Rubber collar
|
|
| 22. |
20565673
|
[1] |
Vacuum switch
|
Elektrisk givare för tryckfall , D13C1-A MP
|
| 23. |
949931
|
[1] |
Hose
|
L=150mm
|
| 24. |
948702
|
[1] |
Cable tie
|
|
| 25. |
994561
|
[1] |
Hose clamp
|
|
| 26. |
22092074
|
[1] |
Retainer
|
|
| 27. |
3828765
|
[1] |
Pressure drop indica
|
Mechanical Pressure drop sensor, D13C3-A MP
|
