沃尔沃零件查询ECR58 Connecting rod and pistonNone8279150-8279151NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
171 次

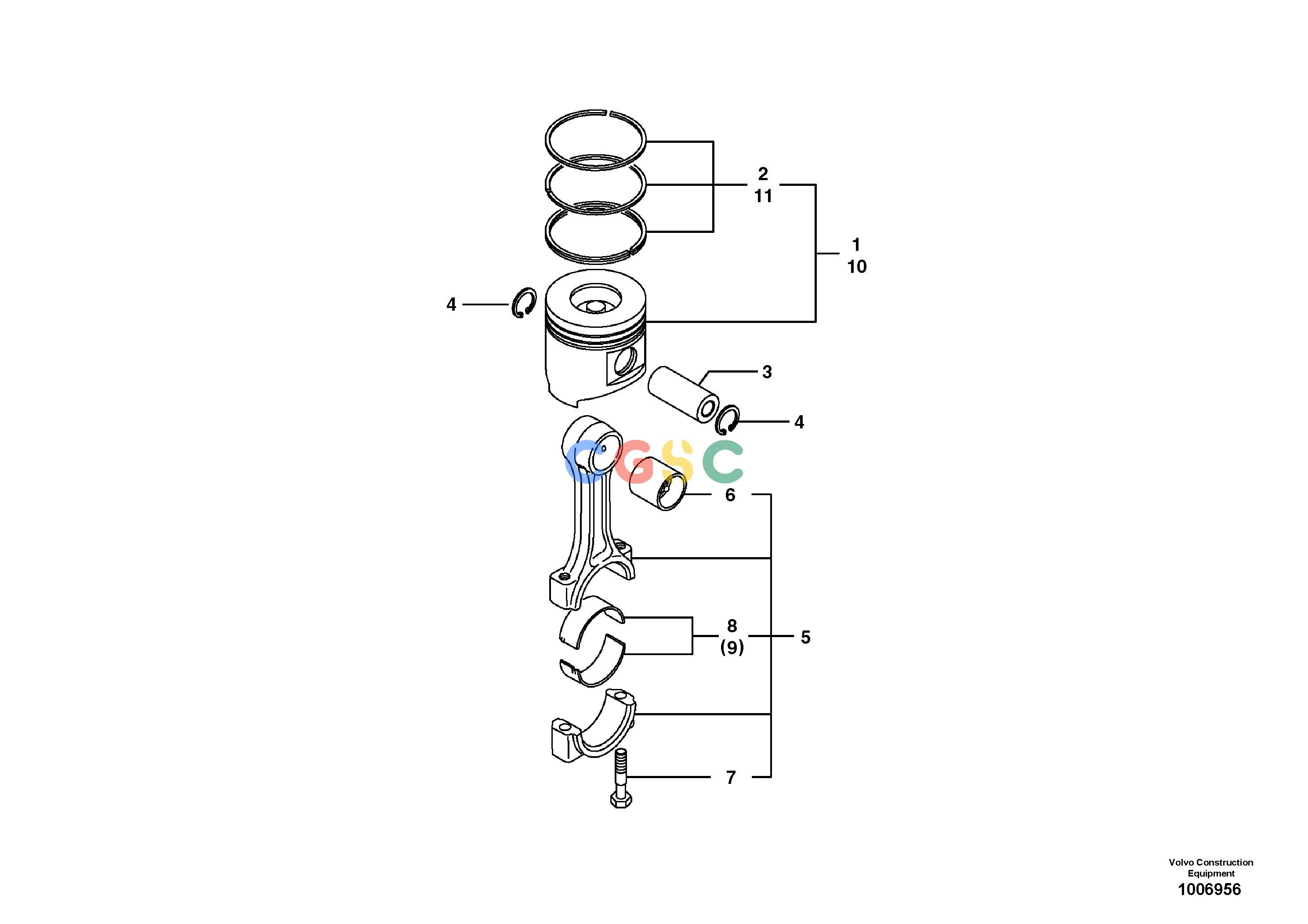

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE15190240
|
[4] |
Piston
|
|
| 2. |
VOE14521567
|
[4] |
Ring
|
|
| 3. |
VOE11714797
|
[4] |
Gudgeon pin
|
|
| 4. |
SA8240-01140
|
[8] |
Snap ring
|
|
| 5. |
VOE11714799
|
[4] |
Connecting rod
|
SER NO 10001-10733
|
| |
VOE11714799
|
[4] |
Connecting rod
|
SER NO 10734-
|
| 6. |
VOE11714800
|
[4] |
Bushing
|
SER NO 10001-10733
|
| |
VOE11714800
|
[4] |
Bushing
|
SER NO 10734-
|
| 7. |
VOE11714801
|
[8] |
Screw
|
|
| 8. |
VOE15057777
|
[4] |
Big-end bearing kit
|
|
| 9. |
VOE11714803
|
[4] |
Piston Bearing
|
0.25 U SZ
|
| 10. |
VOE14521568
|
[4] |
Piston
|
0.25 O SZ
|
| 11. |
VOE14521569
|
[4] |
Ring
|
0.25 O SZ
|
