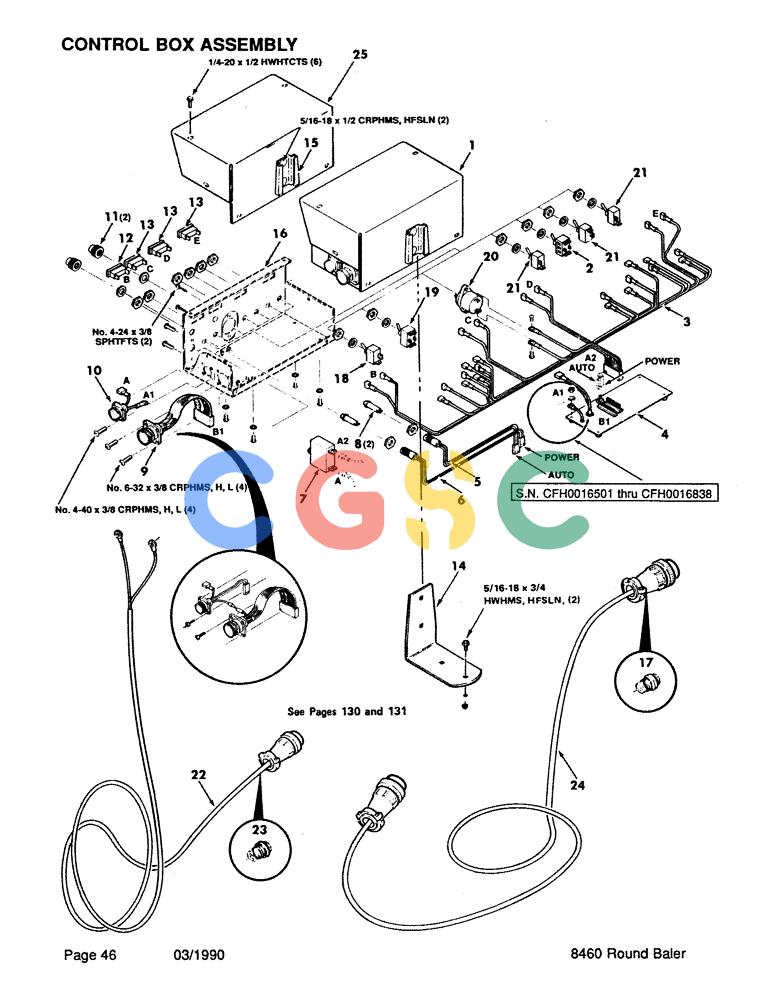

凯斯零件查询(8460) - CASE IH ROUND BALER (BEFORE S/N CFH0057418) (1/88-12/93) (046) - CONTROL BOX ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
186 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700707461
|
[1] |
TRANSFER BOX
|
HFI
CONTROL BOX ASSEMBLY COMPLETE (S.N. CFH0016501 thru CFH0016838) Superseded by part number: 700710915
|
| . . |
700708972
|
[1] |
CONTROL
|
HFI
BOX ASSEMBLY COMPLETE (S.N. CFH0016839 and on) Superseded by part number: 700710915
|
| 2. |
700707451
|
[1] |
SWITCH
|
CAS
- toggle (S.N. CFH0016501 thru CFH0016838)
|
| . . |
700709399
|
[1] |
SWITCH
|
CAS
- toggle (S.N. CFH0016839 and on)
|
| 3. |
700708675
|
[1] |
HARNESS
|
CAS
|
| 4. |
700708676
|
[1] |
BOARD
|
CAS
- PC
|
| . . |
700709892
|
[1] |
BOARD
|
CAS
- PC
|
| 5. |
700708674
|
[1] |
HARNESS
|
CAS
- auto light
|
| 6. |
700708673
|
[1] |
HARNESS
|
CAS
- power light
|
| 7. |
700707393
|
[1] |
SWITCH
|
HFI
- breaker
|
| 8. |
8021198
|
[2] |
LAMP
|
CAS
|
| 9. |
700708671
|
[1] |
HARNESS
|
CAS
ASSEMBLY
|
| 10. |
700708672
|
[1] |
HARNESS
|
CAS
- power
|
| 11. |
700708670
|
[2] |
CAP
|
CAS
LENS
|
| 12. |
700707458
|
[1] |
INDICATOR
|
IH
LIGHT - green
|
| 13. |
700707459
|
[3] |
INDICATOR
|
IH
LIGHT - amber
|
| 14. |
6866081
|
[1] |
BRACKET
|
CAS
|
| 15. |
A59457
|
[1] |
BRACKET
|
CAS
SOCKET Superseded by part number: 847590
|
| 16. |
700707424
|
[1] |
DECAL
|
CAS
- control box (S.N. CFH0016501 thru CFH0016838)
|
| . . |
700708973
|
[1] |
DECAL
|
CAS
- control box (S.N. CFH0016839 and on)
|
| 17. |
700707819
|
[1] |
LOCKING RING
|
CAS
RING KIT - coupling Superseded by part number: 86594691
|
| 18. |
700707449
|
[1] |
SWITCH
|
CAS
- toggle
|
| 19. |
700707450
|
[1] |
SWITCH
|
HFI
- toggle
|
| 20. |
700703984
|
[1] |
INDICATOR
|
IH
- audio (horn)
|
| 21. |
700707452
|
[3] |
SWITCH
|
HFI
- toggle
|
| 22. |
700707598
|
[1] |
WIRE HARNESS
|
IH
CABLE - electrical
|
| 23. |
700707817
|
[1] |
RING
|
CAS
KIT - coupling Superseded by part number: 225426C1
|
| 24. |
700707599
|
[1] |
CABLE
|
CAS
- electrical Superseded by part number: 700710918
|
| 25. |
700116147
|
[1] |
COVER
|
HFI
(without socket)
|
| . . |
703066
|
[2] |
SCREW
|
HFI
5/16-18 x 3/4 HWHMS
|
