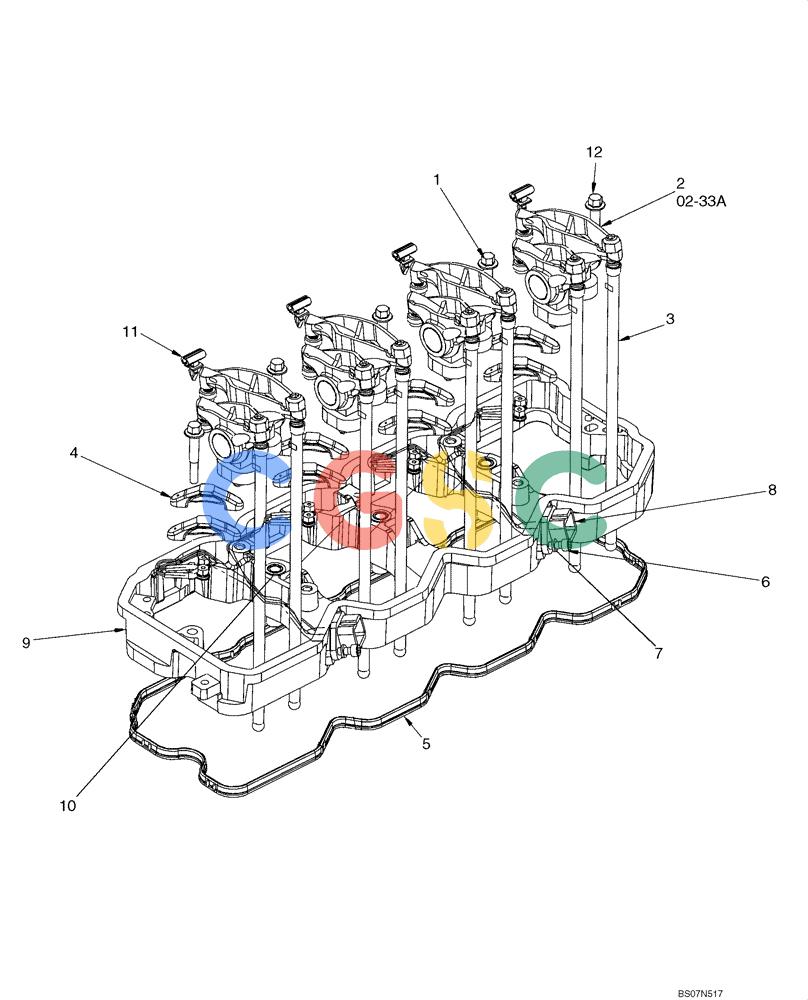

纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (02-33) - ROCKER ARMS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
695 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4895432 | [3] | SCREW | TORM8 x 1.25 x 70 |
| 2. | 4898717 | [4] | ROCKER ARM | TORAssy. See Figure 02-33A Superseded by part number: 2859460 |
| 3. | 4895031 | [8] | PUSH ROD | TOR |
| 4. | 2854530 | [8] | BRIDGE | SM |
| 5. | 2853535 | [1] | GASKET,10.35mm Thk | TORRocker Lever Housing Superseded by part number: |
| 6. | 2852602 | [2] | HEX SOC SCREW,M6 x 16mm | SMSocket Head Cap Superseded by part number: 16689121 |
| 7. | 2852776 | [2] | WASHER | TOR Superseded by part number: 4895421 |
| 8. | 2852427 | [2] | WIRE HARNESS | TOR Superseded by part number: 47401109 |
| 9. | 4899256 | [1] | HOUSING | TORASSY. Rocker Lever, Incl. Ref. 10 |
| 10. | 4899245 | [3] | SLEEVE | TOR |
| 11. | 2852428 | [4] | WIRE CLAMP,6mm ID | TORWire Retaining Superseded by part number: 504066132 |
| 12. | 4899089 | [2] | SCREW,Hex Flg, M8 x 1.25 x 50 | TOR |
