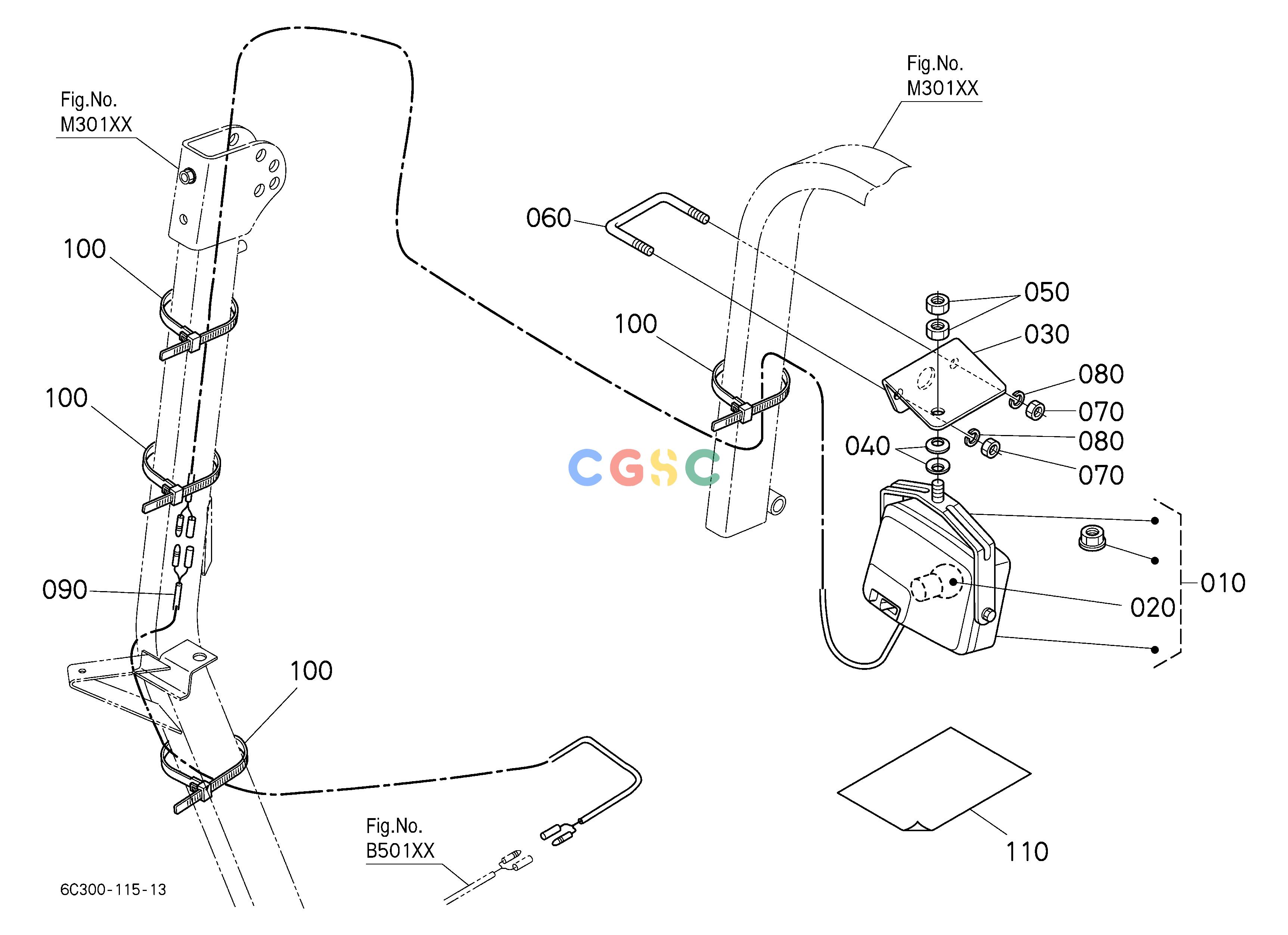

久保田零件查询U80500 WORKING LIGHT KIT (W/G No.B7335) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
365 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3A01175904
|
[1] |
ASSY LIGHT,WORKING
|
1.4080(lbs); 0.640
|
| 020. |
3A01175930
|
[1] |
BULB
|
0.0176(lbs); 0.008
|
| 030. |
3A01275910
|
[1] |
STAY,WORKING LIGHT
|
1.4080(lbs); 0.640
|
| 040. |
3422036880
|
[2] |
SPRING,PLATE
|
0.0110(lbs); 0.005
|
| 050. |
0217250120
|
[2] |
HEX.NUT
|
0.0220(lbs); 0.010
|
| 060. |
6C30095540
|
[1] |
STAY,WORKING LIGHT
|
0.2354(lbs); 0.107
|
| 070. |
0217650100
|
[2] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 080. |
0451250100
|
[2] |
WASHER,SPRING LOCK
|
0.0066(lbs); 0.003
|
| 090. |
6C30095520
|
[1] |
WIRE HARNESS
|
0.0682(lbs); 0.031
|
| 100. |
5531141260
|
[4] |
BAND,CORD
|
0.0154(lbs); 0.007
|
| 110. |
6C30095551
|
[1] |
MANUAL,ASSEMBLY
|
0.0000(lbs); 0.000
|
| 110. |
---- |
[1] |
MANUAL,ASSEMBLY
|
0.0286(lbs); 0.013
|
