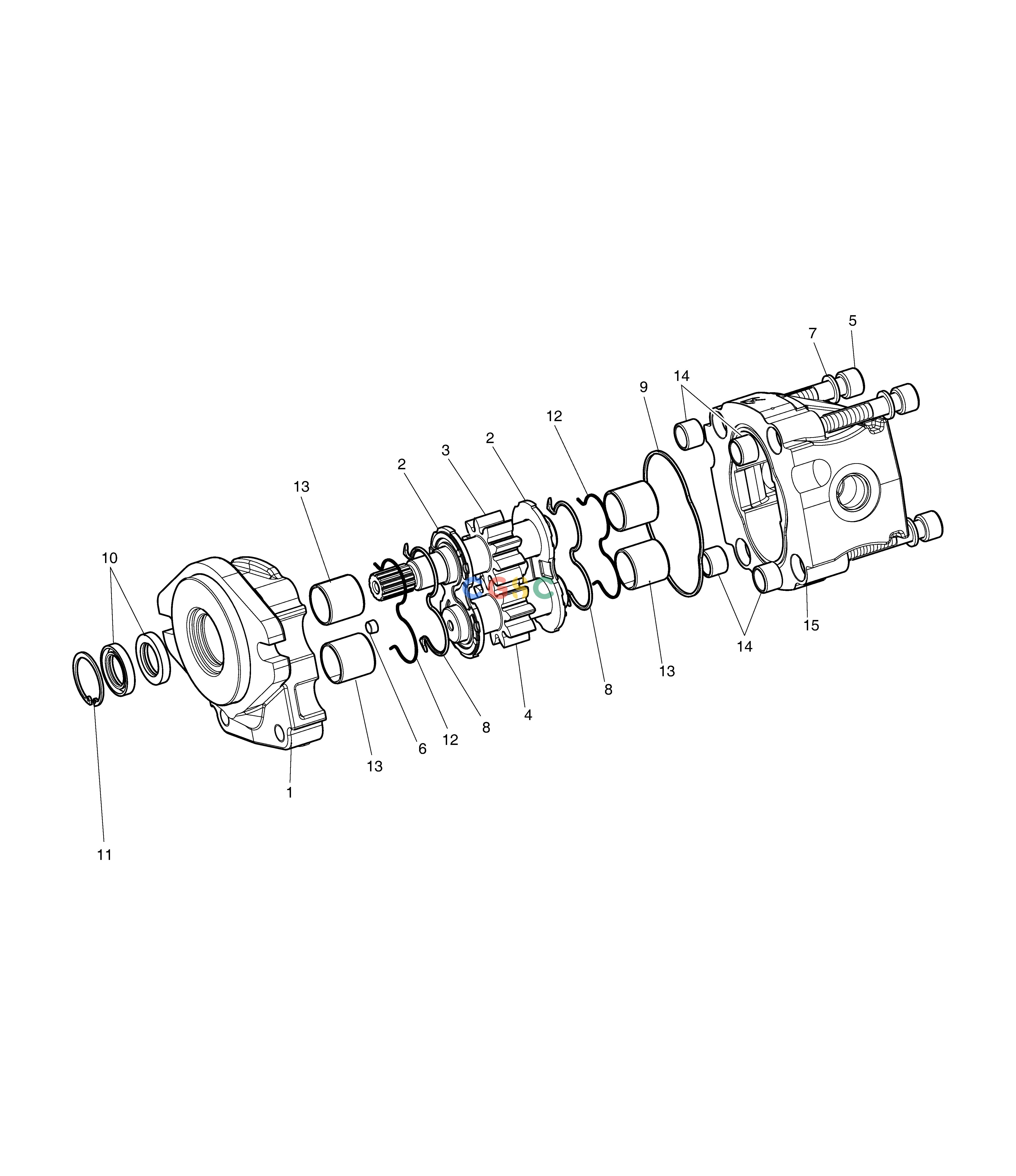

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . | K9001988 | [1] | SEAL KIT;GEAR PUMP | |
| -. | K1007973 | [1] | PUMP;GEAR | |
| 1. | NA00400 | [1] | ||
| 10. | NA01099 | [2] | SEAL;SHAFT | |
| 11. | NA00982 | [1] | . HEAD | |
| 12. | NA00929 | [2] | RING | |
| 13. | NA00258 | [4] | BUSH | |
| 14. | NA00258 | [4] | BUSH | |
| 15. | NA00079 | [1] | BODY | |
| 2. | NA00838 | [2] | ||
| 3. | NA01127 | [1] | ||
| 4. | NA00488 | [1] | ||
| 5. | S2218861 | [4] | BOLT;SOCKET | |
| 6. | NA00843 | [1] | PLUG | |
| 7. | S5110803 | [4] | WASHER | |
| 8. | NA01076 | [2] | SEAL | |
| 9. | NA01076 | [1] | SEAL |
