日立零件查询（MA200-G）VALVE;SELECTOR Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
331 次

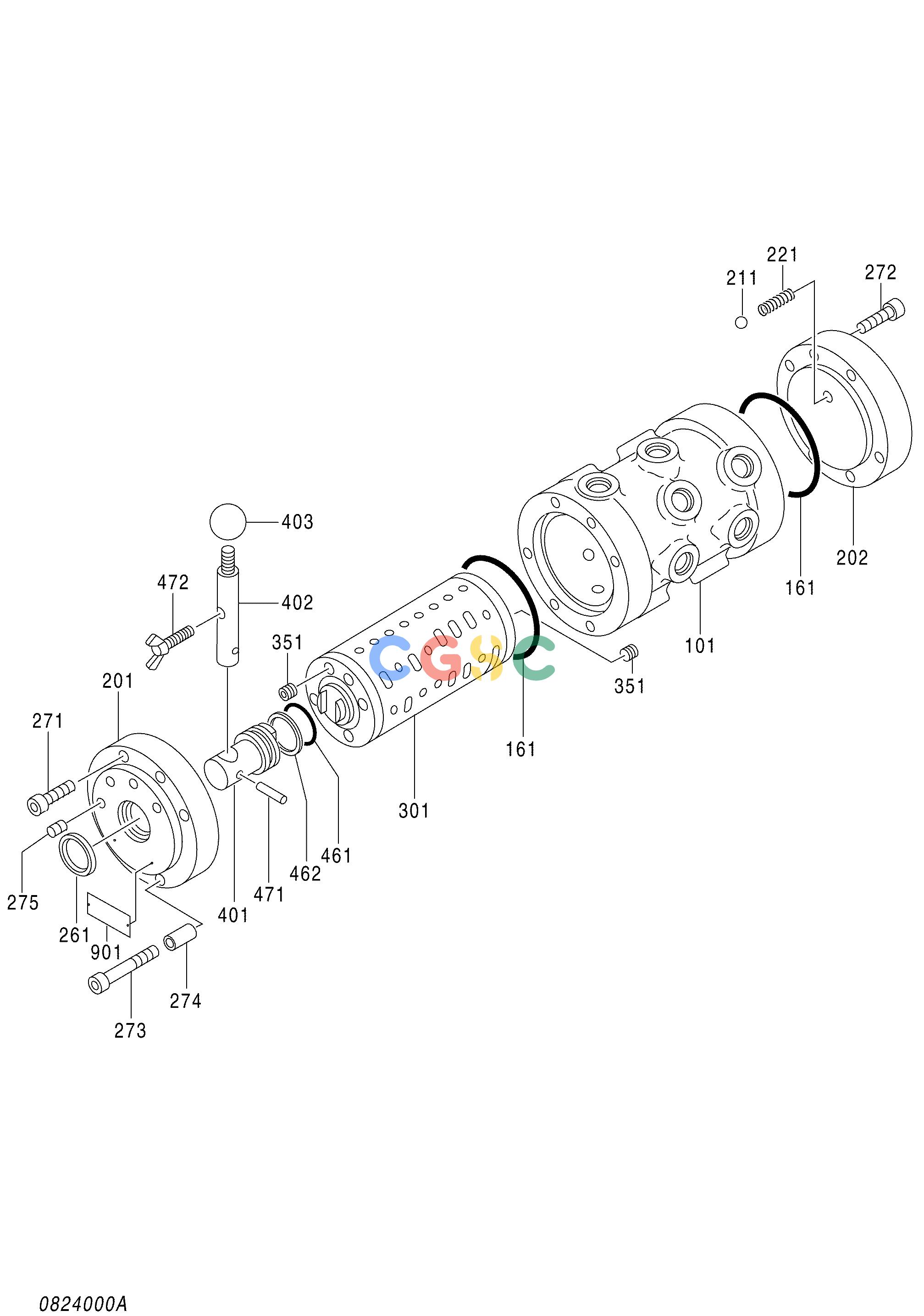

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4447276 | [1] | VALVE;SELECTOR | |
| 101. | +++++++ | [1] | CASING | |
| 161. | A811080 | [2] | O-RING | |
| 201. | 0824002 | [1] | COVER | |
| 202. | 0824003 | [1] | COVER | |
| 211. | 0451104 | [1] | BALL;STEEL | |
| 221. | 0672701 | [1] | SPRING | |
| 261. | 0672702 | [1] | SEAL;DUST | |
| 271. | 0210718 | [4] | BOLT;SOCKET | |
| 272. | 0134608 | [6] | BOLT;SOCKET | |
| 273. | 0265201 | [2] | BOLT;SOCKET | |
| 274. | 0672707 | [2] | SPACER | |
| 275. | 0672708 | [4] | INSERT | |
| 301. | +++++++ | [1] | SPOOL | |
| 351. | 0313107 | [8] | SCREW;SET | |
| 401. | 0672709 | [1] | PIN | |
| 402. | 0672710 | [1] | LEVER | |
| 403. | 0824004 | [1] | KNOB | |
| 461. | 4506428 | [1] | O-RING | |
| 462. | 4044839 | [1] | RING;BACK-UP | |
| 471. | 4051262 | [1] | PIN;SPRING | |
| 472. | 0672703 | [1] | BOLT;WING | |
| 901. | +++++++ | [1] | NAME-PLATE | |
