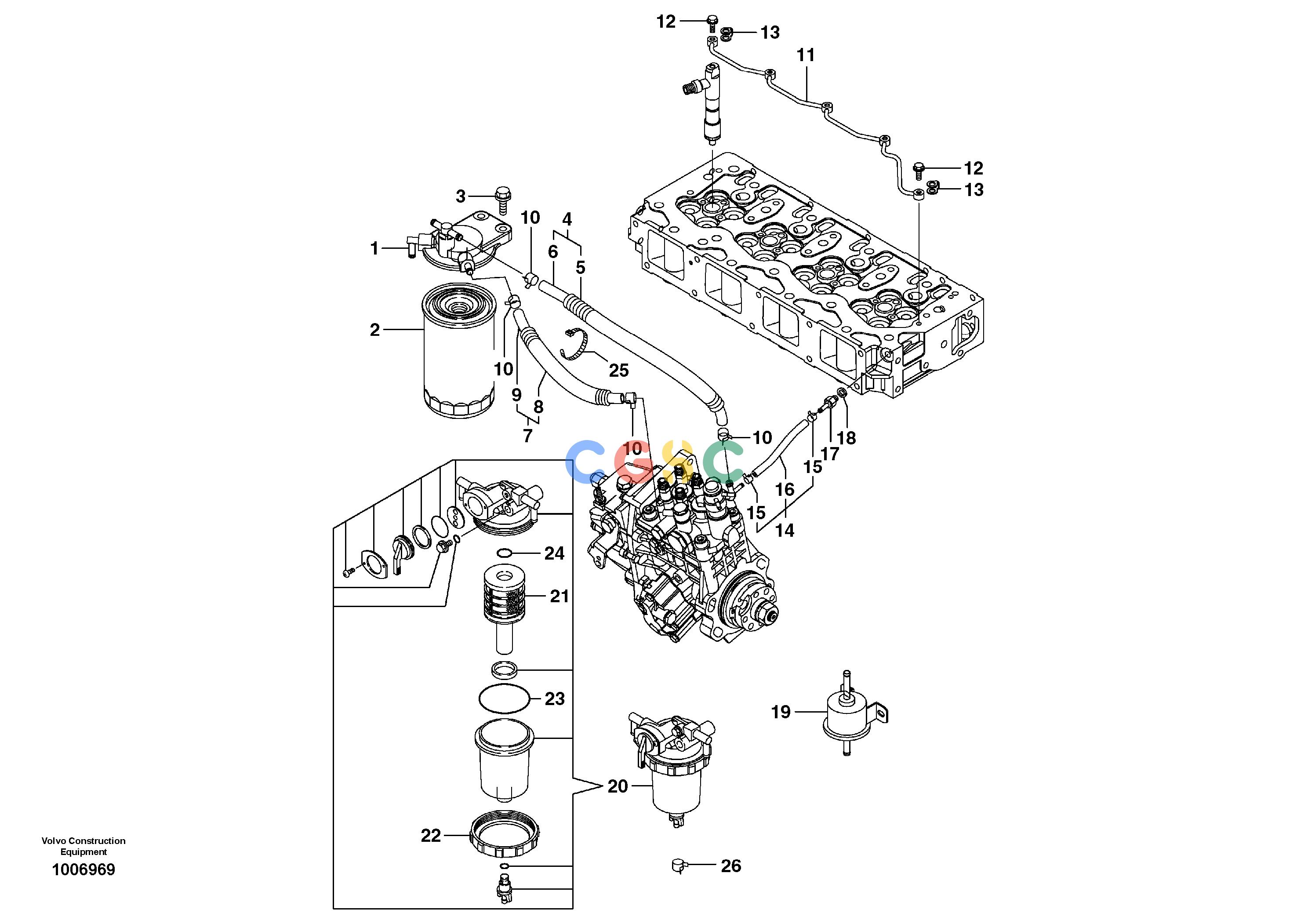

沃尔沃零件查询ECR58 Fuel pipes, fuel injec.pump-fuel filterNone8279150-8279151NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
254 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE15013074
|
[1] |
Fuel filter housing
|
SER NO 10001-10733
|
| |
VOE11714886
|
[1] |
Filter
|
SER NO 10734-
|
| 2. |
VOE14520578
|
[1] |
Fuel filter
|
SER NO 10001-10733
|
| |
VOE11713240
|
[1] |
Fuel filter
|
SER NO 10734-
|
| 3. |
VOE60113082
|
[2] |
Flange screw
|
SER NO 10001-10733
|
| |
VOE60113082
|
[2] |
Flange screw
|
SER NO 10734-
|
| 4. |
VOE14521175
|
[1] |
Pipe line
|
|
| 5. |
VOE14521600
|
[1] |
Protector
|
|
| 6. |
VOE14521601
|
[1] |
Pipe
|
|
| 7. |
VOE14521176
|
[1] |
Pipe line
|
|
| 8. |
VOE14521602
|
[1] |
Tube
|
|
| 9. |
VOE14521603
|
[1] |
Pipe
|
|
| 10. |
VOE14521604
|
[4] |
Clamp
|
|
| 11. |
VOE14521177
|
[1] |
Fuel pipe
|
|
| 12. |
VOE14521605
|
[5] |
Joint
|
|
| 13. |
VOE14521606
|
[5] |
Gasket
|
|
| 14. |
VOE14521178
|
[1] |
Pipe line
|
|
| 15. |
VOE14521580
|
[2] |
Clamp
|
|
| 16. |
VOE14521607
|
[1] |
Pipe
|
SER NO 10001-10733
|
| 17. |
VOE14521608
|
[1] |
Hose nipple
|
|
| 18. |
VOE11714476
|
[1] |
Sealing washer
|
SER NO 10001-10733
|
| |
VOE11714476
|
[1] |
Sealing washer
|
SER NO 10734-
|
| 19. |
VOE14520577
|
[1] |
Pump
|
|
| 20. |
VOE14521186
|
[1] |
Water separator
|
|
| 21. |
VOE14521609
|
[1] |
Element
|
|
| 22. |
VOE14521610
|
[1] |
Ring
|
|
| 23. |
VOE14521611
|
[1] |
O-ring
|
|
| 24. |
VOE14521612
|
[1] |
O-ring
|
|
| 25. |
SA8210-08800
|
[1] |
Strip Clamp
|
|
| 26. |
VOE14521580
|
[1] |
Clamp
|
|
