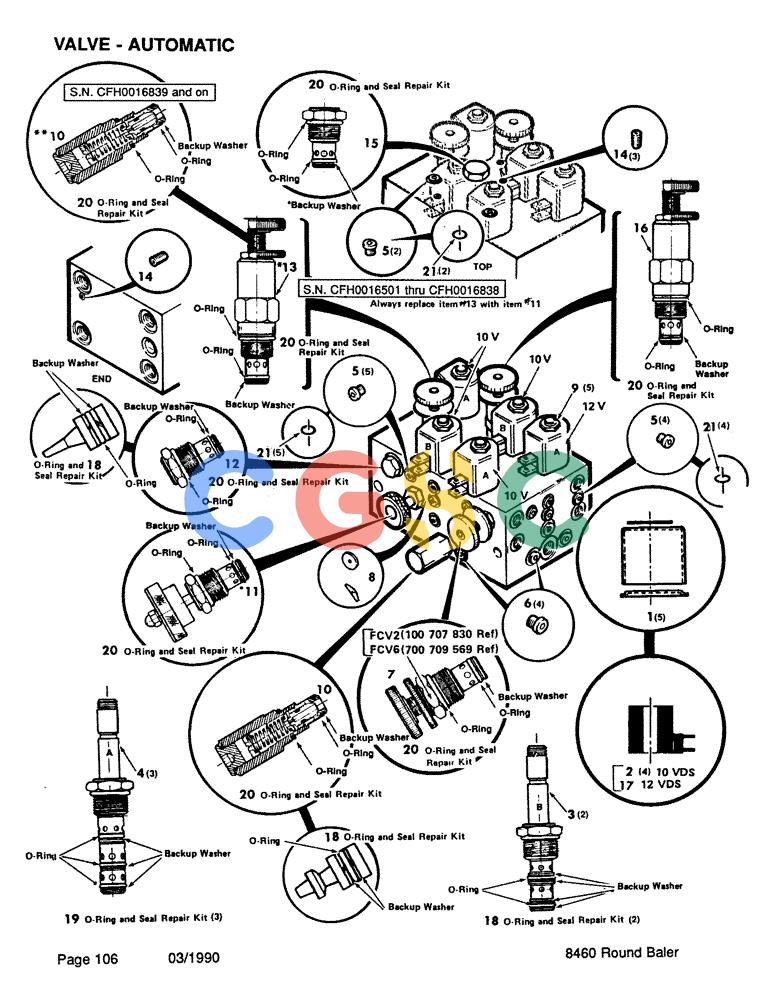

凯斯零件查询(8460) - CASE IH ROUND BALER (BEFORE S/N CFH0057418) (1/88-12/93) (106) - VALVE, AUTOMATIC Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
761 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
700707444
|
[1] |
VALVE
|
HFI
- automatic, complete
|
| 1. |
700707826
|
[5] |
REPAIR KIT
|
CAS
KIT - coil housing
|
| 2. |
700707825
|
[4] |
COIL
|
IH
(10V DS)
|
| 3. |
700706148
|
[2] |
CARTRIDGE
|
CAS
(2-pos., 3-way)
|
| 4. |
700706610
|
[3] |
CARTRIDGE
|
L
(2-pos., 4-way)
|
| 5. |
700706603
|
[11] |
PLUG
|
CAS
(2 SAE) Superseded by part number: 218-5151
|
| 6. |
700707835
|
[4] |
PLUG
|
CAS
(4 SAE)
|
| 7. |
700707830
|
[1] |
VALVE, CONTROL
|
CAS
FLOW CONTROL - knob adustment (S.N. CFH0016501 thru CFH0016838) sub. 700121500 service kit with orifice Superseded by part number: 9824326, 700709570, H757815, 700709569
|
| . . |
700121500
|
[1] |
KIT
|
HFI
SERIVICE KIT - flow control see page 109
|
| . . |
700709569
|
[1] |
VALVE
|
CAS
FLOW CONTROL - knob adjustment (S.N. CFH0016839 and on) use orifice int threader cylinder
|
| 8. |
700709384
|
[1] |
ORIFICE
|
CAS
(.02) (S.N. CFH0016839 and on)
|
| 9. |
7007065151
|
[5] |
NUT
|
|
| 10. |
700706157
|
[1] |
HYDRAULIC VALVE
|
L
VALVE - relief (2000 PSI) (S.N. CFH0016501 thru CFH0016838)
|
| 11. |
700706158
|
[1] |
DRAINCOCK/TAP SUPPLY
|
IH
VALVE - needle
|
| 12. |
700707833
|
[1] |
VALVE, CHECK
|
CAS
VALVE - check, poppet (15 PSI spring)
|
| 13. |
700707827
|
[1] |
VALVE, PRESSURE RELI
|
CAS
VALVE - relief, knob adjustment (always sub. 700706157 relief valve) Superseded by part number: 700706157
|
| 14. |
8046716
|
[4] |
PLUG
|
HFI
Superseded by part number: 221-850
|
| 15. |
700707832
|
[1] |
VALVE PRESSURE RELIE
|
CAS
VALVE - check, ball (5 PSI spring)
|
| 16. |
700707829
|
[1] |
VALVE, PRESSURE RELI
|
HFI
VALVE - relief, knob adjustment (2000 PSI)
|
| 17. |
700710176
|
[1] |
COIL
|
CAS
(12V DS)
|
| 18. |
700706152
|
[4] |
SEAL KIT
|
CAS
O-RING AND SEAL REPAIR KIT Superseded by part number: 47394721
|
| 19. |
700707215
|
[3] |
SEAL KIT
|
IH
O-RING AND SEAL REPAIR KIT
|
| 20. |
700706154
|
[11] |
SEAL KIT
|
L
O-RING AND SEAL REPAIR KIT Superseded by part number: 86508168
|
| 21. |
238-5228
|
[11] |
O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro
|
CAS
Superseded by part number: 510185
|
