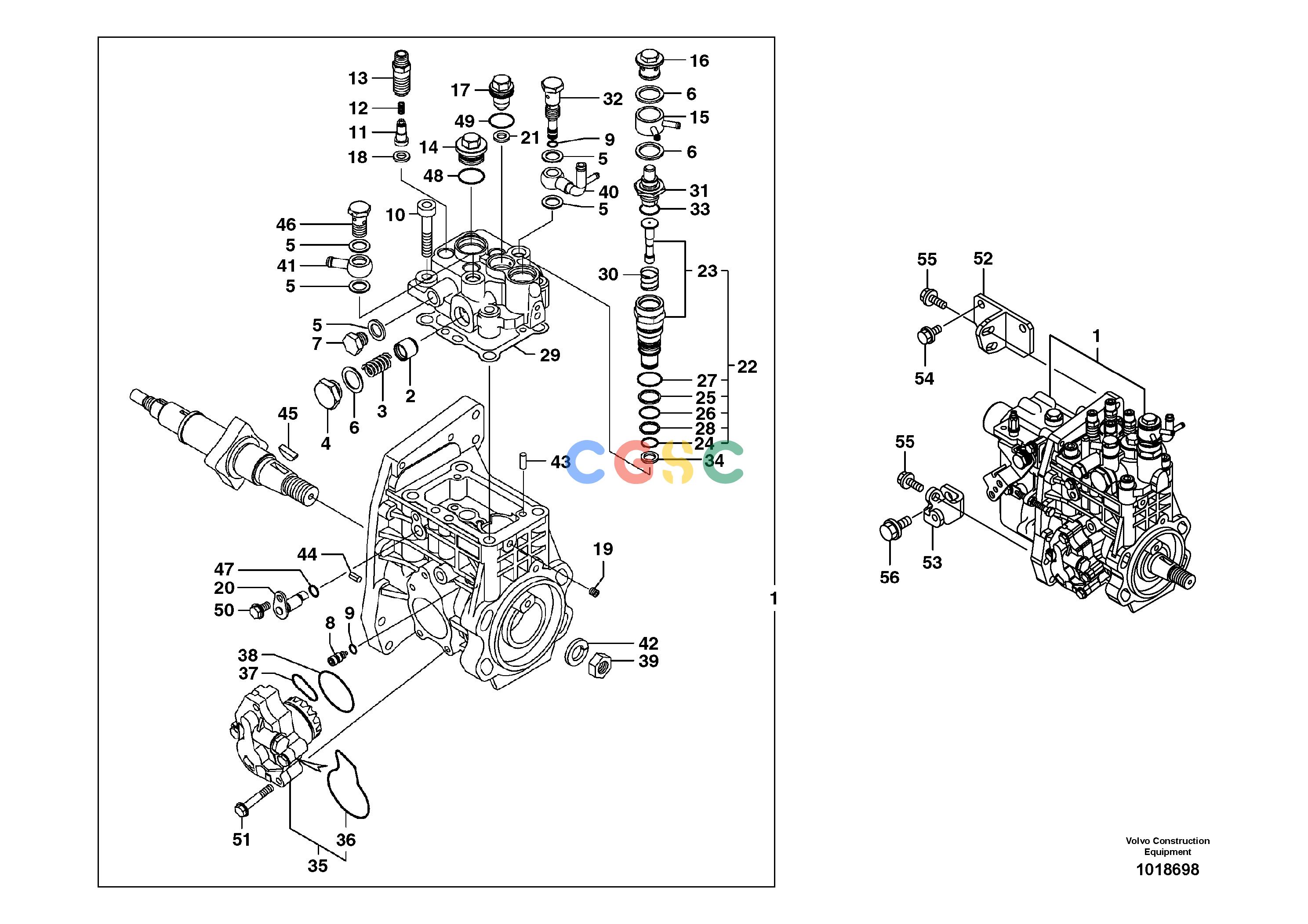

沃尔沃零件查询ECR58 Injection pumpNone8279150 S/N 10734--8279151 S/N 10734-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
822 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14548177
|
[1] |
Injection pump
|
|
| 2. |
VOE14543866
|
[1] |
Piston
|
|
| 3. |
VOE15066218
|
[1] |
Spring
|
|
| 4. |
VOE14543868
|
[1] |
Plug
|
|
| 5. |
SA8240-01030
|
[5] |
Washer
|
|
| 6. |
VOE14543869
|
[3] |
Washer
|
|
| 7. |
SA8210-05660
|
[1] |
Plug
|
|
| 8. |
VOE14543870
|
[1] |
Stopper
|
|
| 9. |
VOE14543871
|
[2] |
O-ring
|
|
| 10. |
VOE14543903
|
[4] |
Bolt
|
|
| 11. |
VOE15128828
|
[4] |
Bracket
|
|
| 12. |
VOE14543873
|
[4] |
Spring
|
|
| 13. |
VOE15128828
|
[4] |
Bracket
|
|
| 14. |
VOE14543875
|
[1] |
Plug
|
|
| 15. |
VOE14543876
|
[1] |
Joint
|
|
| 16. |
VOE14543877
|
[1] |
Plug
|
|
| 17. |
VOE14543878
|
[1] |
Plug
|
|
| 18. |
VOE15103200
|
[4] |
Washer
|
|
| 19. |
VOE14543880
|
[1] |
Plug
|
|
| 20. |
VOE14543881
|
[1] |
Lift
|
|
| 21. |
VOE14543882
|
[1] |
Packing
|
|
| 22. |
VOE14543883
|
[1] |
Timer
|
|
| 23. |
VOE14543883
|
[1] |
Timer
|
|
| 24. |
VOE14543885
|
[1] |
O-ring
|
|
| 25. |
VOE14543886
|
[1] |
Ring
|
|
| 26. |
VOE14543887
|
[1] |
O-ring
|
|
| 27. |
VOE14543888
|
[1] |
Packing
|
|
| 28. |
VOE14543889
|
[1] |
Ring
|
|
| 29. |
VOE14543890
|
[1] |
Packing
|
|
| 30. |
VOE14543891
|
[1] |
Spring
|
|
| 31. |
VOE14543892
|
[1] |
Thermo element
|
|
| 32. |
VOE14543893
|
[1] |
Joint
|
|
| 33. |
VOE14543894
|
[1] |
O-ring
|
|
| 34. |
VOE14543895
|
[1] |
Packing
|
|
| 35. |
VOE14543896
|
[1] |
Feed pump
|
|
| 36. |
VOE14543897
|
[1] |
O-ring
|
|
| 37. |
VOE14543898
|
[1] |
O-ring
|
|
| 38. |
VOE14543899
|
[1] |
O-ring
|
|
| 39. |
VOE11714789
|
[1] |
Nut
|
|
| 40. |
VOE14543904
|
[1] |
Joint
|
|
| 41. |
VOE14543905
|
[1] |
Joint
|
|
| 42. |
VOE11714788
|
[1] |
Spring washer
|
|
| 43. |
VOE14543900
|
[2] |
Pin
|
|
| 44. |
VOE14543901
|
[2] |
Pin
|
|
| 45. |
SA8210-05240
|
[1] |
Key
|
|
| 46. |
SA8210-05610
|
[1] |
Bolt
|
|
| 47. |
SA8210-08860
|
[1] |
O-ring
|
|
| 48. |
VOE14543888
|
[1] |
Packing
|
|
| 49. |
VOE14543902
|
[1] |
O-ring
|
|
| 50. |
VOE11713437
|
[1] |
Bolt
|
|
| 51. |
VOE11713414
|
[4] |
Bolt
|
|
| 52. |
VOE14521584
|
[1] |
Retainer
|
|
| 53. |
VOE14521585
|
[1] |
Retainer
|
|
| 54. |
VOE11714372
|
[2] |
Bolt
|
|
| 55. |
VOE14521586
|
[3] |
Bolt
|
|
| 56. |
VOE11714755
|
[1] |
Screw
|
|
