日立零件查询（MA200-G）VALVE;BRAKE Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
431 次

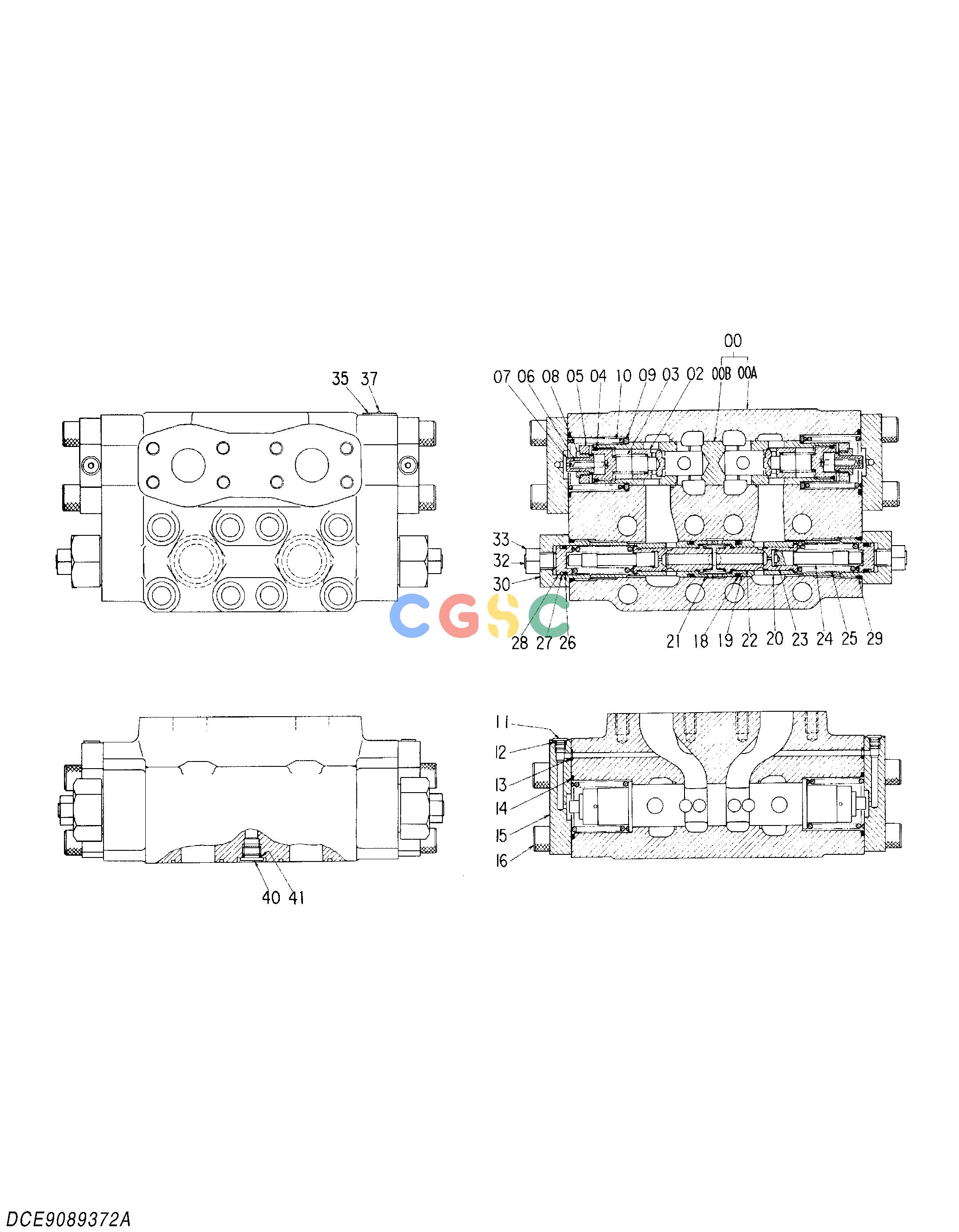

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9089372 | [1] | VALVE;BRAKE | |
| 00. | 8045968 | [1] | CASING;ASS'Y | |
| 00A. | +++++++ | [1] | CASING | |
| 00B. | +++++++ | [1] | SPOOL | |
| 02. | 4100194 | [2] | POPPET | |
| 03. | 4091820 | [2] | SPRING;COMPRES. | |
| 04. | 4509182 | [2] | O-RING | |
| 05. | 4146993 | [2] | PLUG | |
| 06. | 4126472 | [2] | SPRING;COMPRESS | |
| 07. | 4126221 | [2] | PISTON | |
| 08. | 4126220 | [2] | PLUG | |
| 09. | 4082604 | [2] | WASHER | |
| 10. | 4143324 | [2] | SPRING;COMPRES. | |
| 11. | 4208976 | [2] | PLUG | |
| 12. | 4506408 | [2] | O-RING | |
| 13. | 4506407 | [2] | O-RING | |
| 14. | A811055 | [2] | O-RING | |
| 15. | 3039490 | [2] | COVER | |
| 16. | M341645 | [8] | BOLT;SOCKET | |
| 18. | 4506428 | [2] | O-RING | |
| 19. | 4044839 | [2] | RING;BACK-UP | |
| 20. | 3031806 | [2] | SLEEVE | |
| 21. | 4085551 | [1] | SPRING;COMPRES. | |
| 22. | 4171531 | [2] | SHEET | |
| 23. | 4171532 | [2] | POPPET | |
| 24. | 4171533 | [2] | PISTON | |
| 25. | 4163357 | [2] | SPRING;COMPRES. | |
| 26. | 4028265 | [2] | O-RING | |
| 27. | 4028266 | [2] | RING;BACK-UP | |
| 28. | 4094048 | [2] | PLUG | |
| 29. | 4095210 | [2] | O-RING | |
| 30. | 4094047 | [2] | CARTRIDGE | |
| 32. | 4091822 | [2] | SCREW;ADJUSTING | |
| 33. | 4091821 | [2] | NUT | |
| 35. | +++++++ | [1] | NAME-PLATE | |
| 37. | M491832 | [2] | SCREW;DRIVE | |
| 40. | 4208978 | [1] | PLUG | |
| 41. | 4509180 | [1] | O-RING | |
