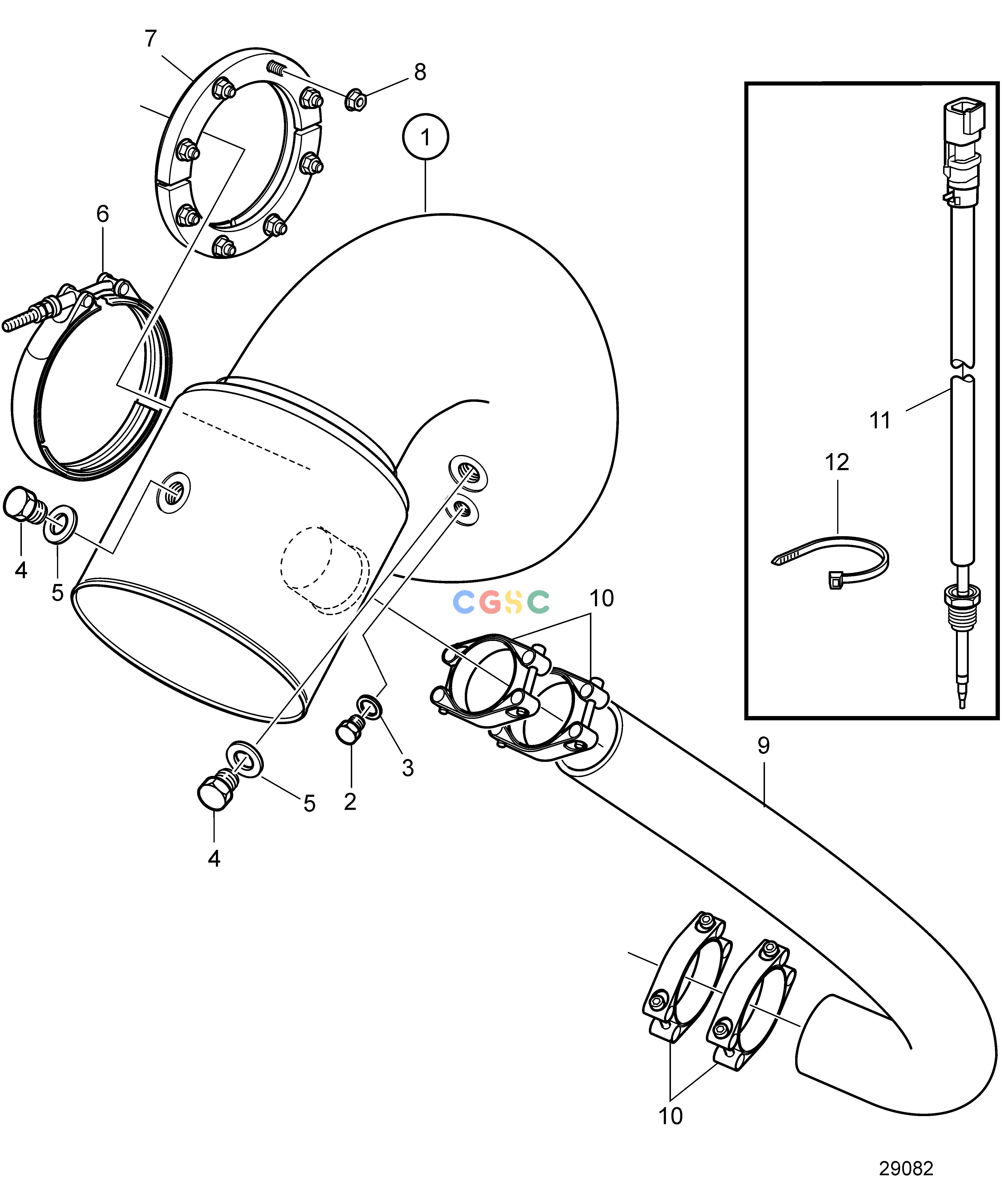

沃尔沃零件查询D13C1-A MP; D13C2-A MP; D13C3-A MP; D13C4-A MP; D13C6-A MPIntake and Exhaust SystemWet Exhaust Pipe with RiserEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
970 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21485481
|
[1] |
Exhaust pipe
|
|
| 2. |
960628
|
[1] |
Plug
|
|
| 3. |
947281
|
[1] |
Gasket
|
|
| 4. |
20412266
|
[2] |
Plug
|
|
| 5. |
969011
|
[2] |
Gasket
|
|
| 6. |
21484813
|
[1] |
V-clamp
|
|
| 7. |
78467377
|
[1] |
Exhaust pipe clamp
|
Option
|
| 8. |
983048
|
[8] |
Flange nut
|
|
| 9. |
21771435
|
[1] |
Hose
|
L=1000mm
|
| 10. |
21304745
|
[4] |
Hose clamp
|
|
| 11. |
21126692
|
[1] |
Temperature sensor
|
|
| 12. |
948211
|
[6] |
Cable tie
|
|
