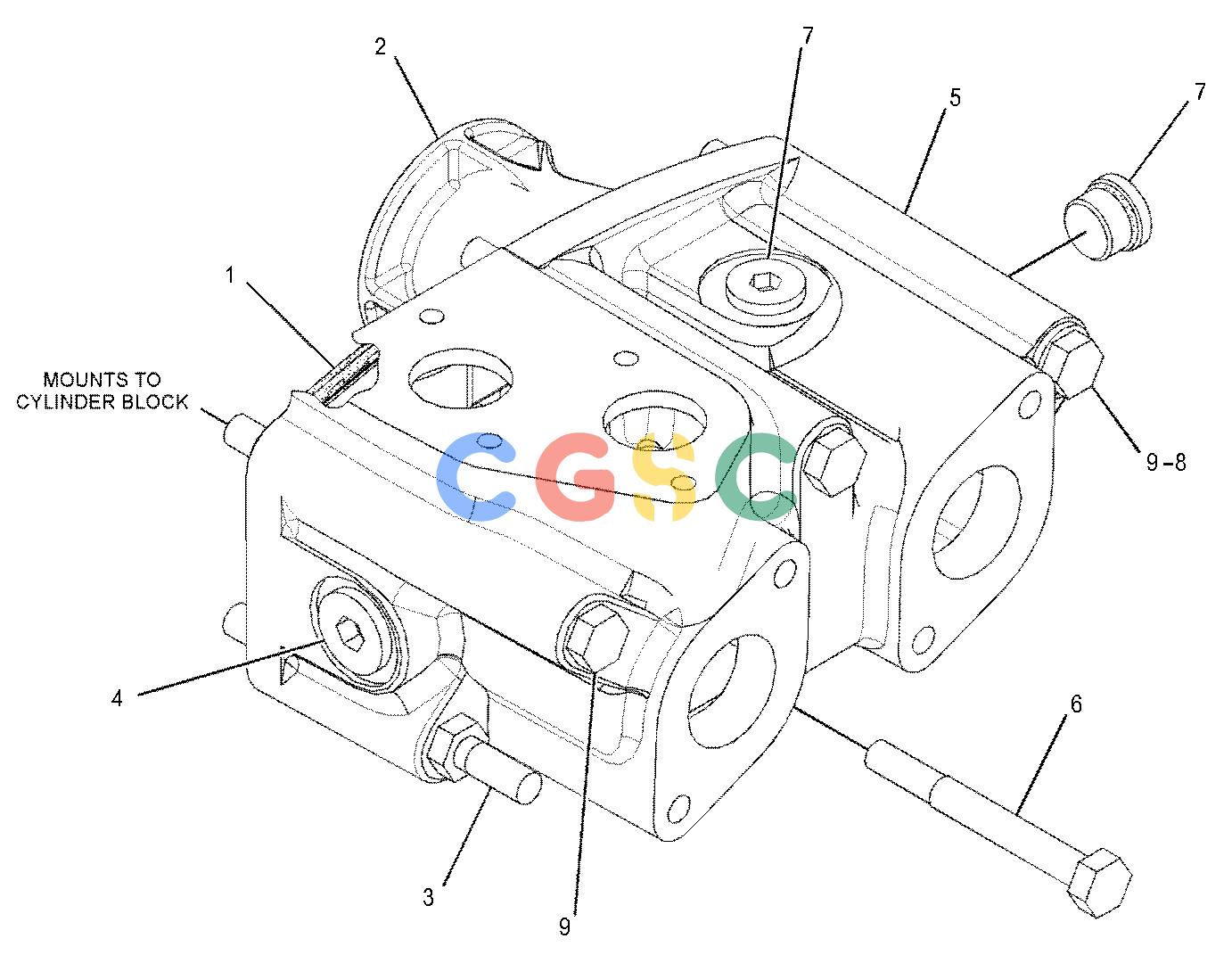

卡特零件查询（725C） 352-7610: BONNET GP-OIL COOLER
广数供应链运营团队, 14 02月, 2025，浏览：
751 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 180-3907 | [1] | SEAL-INTEGRAL | |
| 2. | 198-3462 | [1] | DIVERTER | |
| 3. | 303-9449M | [1] | STUD(M10X1.5-THD) | |
| 4. | 396-0404 | [1] | PLUG AS | |
| | 6V-3251 | [1] | SEAL-O-RING | |
| | 360-3681 | [1] | PLUG(7/8-14-THD) | |
| 5. | 365-9872 | [1] | BONNET-OIL COOLER | |
| 6. | 160-8492M | [1] | BOLT(M10X1.5X85-MM) | |
| 7. | 396-0405 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 6V-6609 | [1] | SEAL-O-RING | |
| | 360-3680 | [1] | PLUG | |
| 8. | 6V-5839 | [1] | WASHER(11X21X2.5-MM THK) | |
| 9. | 8C-2926M | [3] | BOLT(M10X1.5X140-MM) | |
| | M | | METRIC PART |
