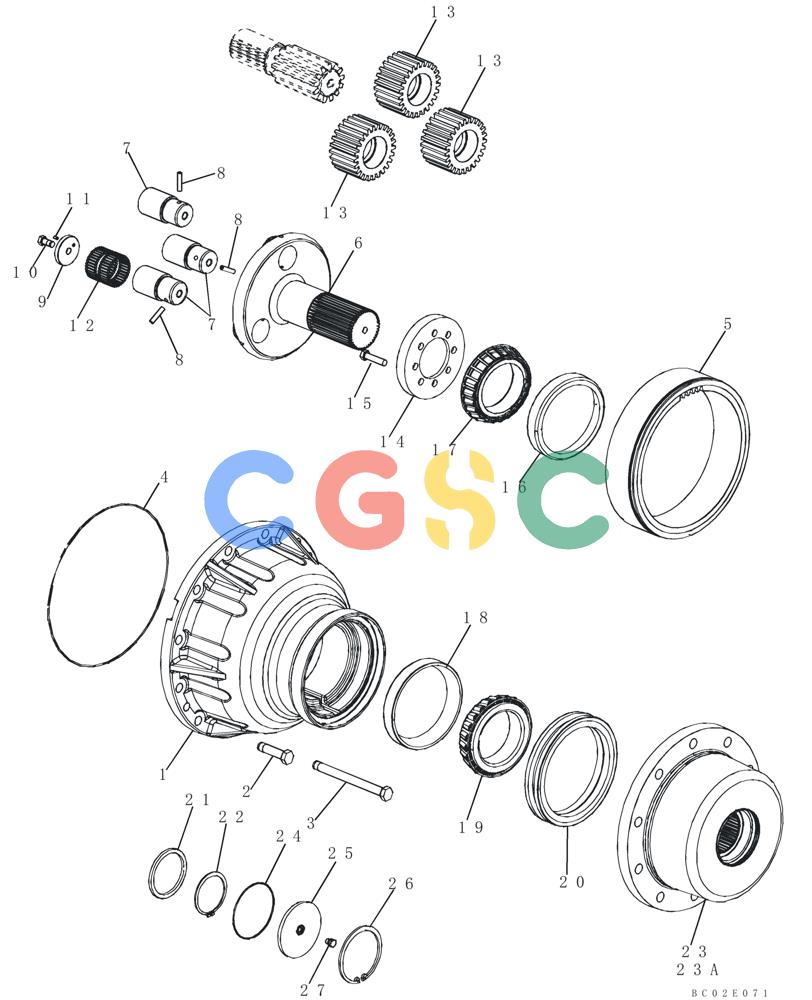

| . . | 87724629 | [2] | DRIVE ASSY. | BURFINAL REDUCTION GEARBOX Final Drive Assembly; 1448 mm (57 inch) Gauge Long Track (LT) Models; Incl. Ref 1 - 23, 24 - 27; Also Includes Figure 06-07, Ref 1 - 39 |
| . . | 87724629R | [2] | REMAN-AXLE | RACD95B TIER 3 (3/08-) Superseded by part number: 87724629 |
| . . | 87724629C | [1] | CORE-AXLE | RACReturn Number |
| . . | 87724630 | [2] | DRIVE ASSY. | BURFINAL REDUCTION GEARBOX Final Drive Assembly; 1702 mm (67 inch) Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models; Incl. Ref 1 - 22, 23A, 24 - 27; Also Includes Figure 06-07, Ref 1 - 39 Superseded by part number: 84490715 |
| . . | 87724630R | [2] | REMAN-FINAL DRIVE | RACD95B TIER 3 (3/08-) Superseded by part number: 87724630 |
| . . | 87724630C | [1] | CORE-FINAL DRIVE | RACReturn Number |
| 1. | 385217A3 | [1] | HUB | RACWheel Housing Superseded by part number: 385274A1 |
| 2. | 87028191 | [6] | BOLT,Hex, M16 x 60mm, Cl 10.9, Full Thd | BRR |
| 3. | 87028192 | [6] | BOLT,Hex, M16 x 170mm, Cl 10.9 | BRRLocking, M16 x 170; 10.9 |
| 4. | 238-5279 | [1] | O-RING,0.139" Thk x 12.984" ID, -279, Cl 5, 75 Duro | FAR Superseded by part number: 70927376 |
| 5. | 385220A3 | [1] | PLANETARY GEAR | BUR65 T; Planetary Ring Superseded by part number: 385274A1 |
| . . | 385262A4 | [1] | PLANET CARRIER | RACIncl. Ref 6 - 8 |
| 6. | NSS | [1] | NOT SERVICED SEPARATELY | CONCarrier, Hub |
| 9. | 385231A1 | [3] | WASHER | RAC |
| 10. | 606-12025 | [3] | BOLT,Hex, M12 x 25mm, Cl 10.9 | CAS |
| 11. | 837-5010 | [3] | DOWEL,M5 x 10 | CAS |
| 12. | 385258A1 | [198] | ROLLER BEARING,Needle, 5.99mm OD x 26.16mm L | RAC |
| 13. | 385221A2 | [3] | PLANETARY GEAR | RAC25 T |
| 14. | 385205A1 | [1] | RETAINING PLATE | RACBearing |
| 15. | 87018613 | [8] | BOLT,Hex, M12 x 50mm, Cl 10.9 | PA |
| 16. | 385271A1 | [1] | BEARING CUP,169.86mm OD x 20.64mm W | RAC |
| 17. | 385270A1 | [1] | BEARING ASSY,127mm ID x 26.2mm W | RAC |
| 18. | 385211A1 | [1] | BEARING CUP,185mm OD x 21mm W | RAC |
| 19. | 385210A1 | [1] | BEARING ASSY,130mm ID x 27mm W | RAC |
| 20. | 385223A1 | [1] | SEAL,179.05mm ID x 218.72mm OD x 41.83mm Thk | RACOil |
| 21. | 385249A2 | [1] | WASHER | RAC |
| 22. | 800-1182 | [1] | SNAP RING,M82, Ext | BRR |
| 23. | 385213A3 | [1] | FLANGE | RACLong Track (LT) Models |
| 23A. | 385228A3 | [1] | FLANGE | RACWide Track (WT) or Low Ground Pressure (LGP) Models |
| 24. | 238-5156 | [1] | O-RING,-156, 70 Duro, 4.237" ID x .103" Thk | CAS Superseded by part number: 14461480 |
| 25. | 385214A2 | [1] | END PLATE | RACWheel |
| 26. | 800-21110 | [1] | SNAP RING,M110, Int | CAS Superseded by part number: 301652 |
| 27. | 233426A1 | [1] | PLUG,M10 x 1 ORB | CASIncludes 637-62081 |
| . . | 637-62081 | [1] | O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro | CAS Superseded by part number: 84432614 |
