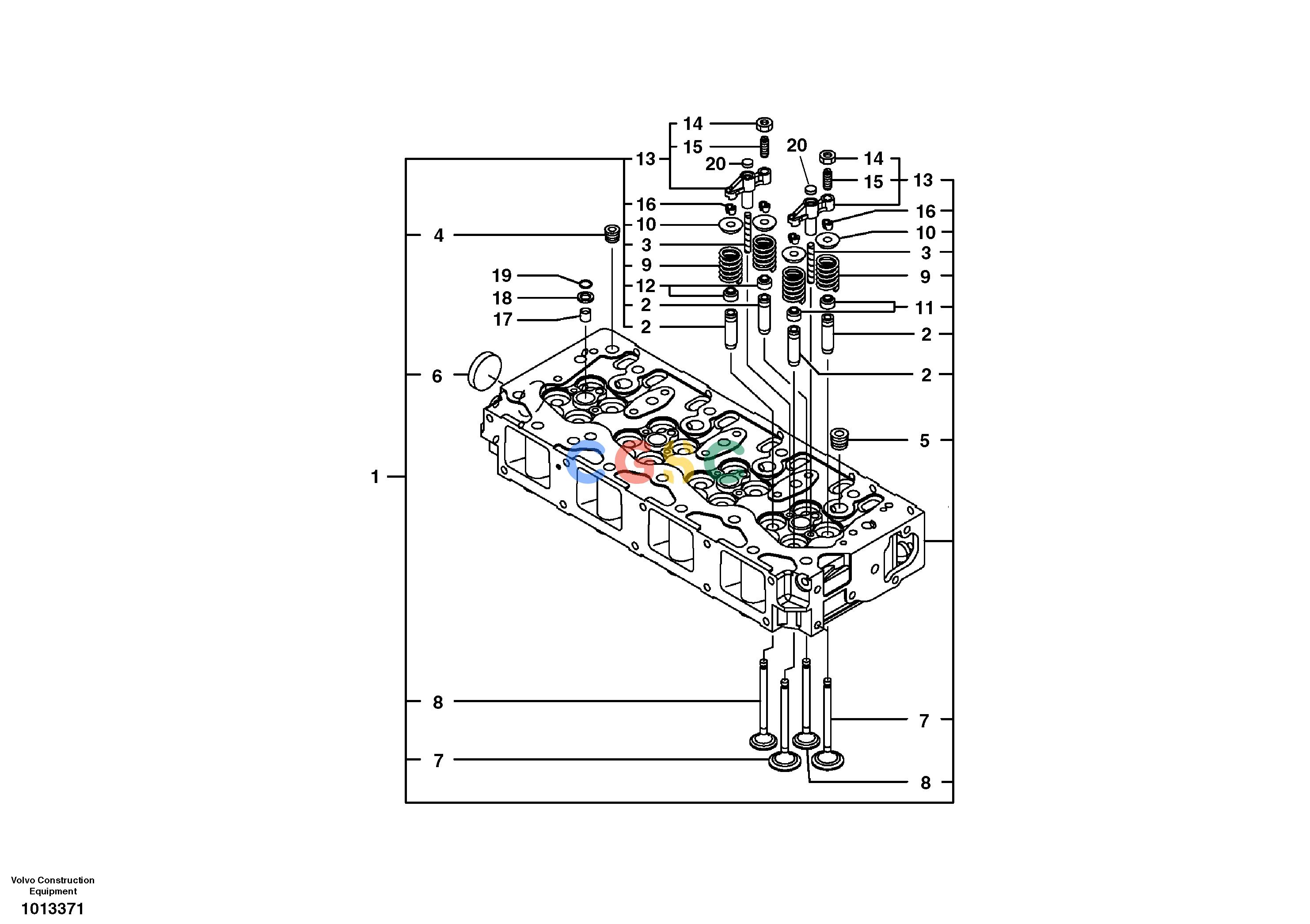

沃尔沃零件查询ECR88 Cylinder headS/N 10001-140108279041-8279042NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
666 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14521519
|
[1] |
Cylinder head
|
|
| 2. |
VOE14525388
|
[16] |
Valve guide
|
|
| 3. |
VOE14521521
|
[8] |
Guide
|
|
| 4. |
VOE14521522
|
[1] |
Plug
|
|
| 5. |
VOE14521504
|
[4] |
Plug
|
|
| 6. |
VOE11714379
|
[1] |
Plug
|
|
| 7. |
VOE14521523
|
[8] |
Inlet valve
|
INLET VALVE
|
| 8. |
VOE14521524
|
[8] |
Exhaust valve
|
EXHAUST VALVE
|
| 9. |
VOE14521525
|
[16] |
Valve spring
|
|
| 10. |
VOE14521526
|
[16] |
Retainer
|
|
| 11. |
VOE14521527
|
[8] |
Valve seal
|
INLET
|
| 12. |
VOE14521528
|
[8] |
Valve seal
|
EXHAUST
|
| 13. |
VOE14521529
|
[8] |
Valve guide
|
|
| 14. |
VOE11714380
|
[8] |
Nut
|
|
| 15. |
VOE14521530
|
[8] |
Screw
|
|
| 16. |
VOE14521531
|
[16] |
Valve cone
|
|
| 17. |
VOE14521532
|
[4] |
Protection
|
|
| 18. |
VOE11714381
|
[4] |
Seat
|
|
| 19. |
VOE11714386
|
[4] |
O-ring
|
|
| 20. |
VOE14521518
|
[8] |
Seat
|
|
