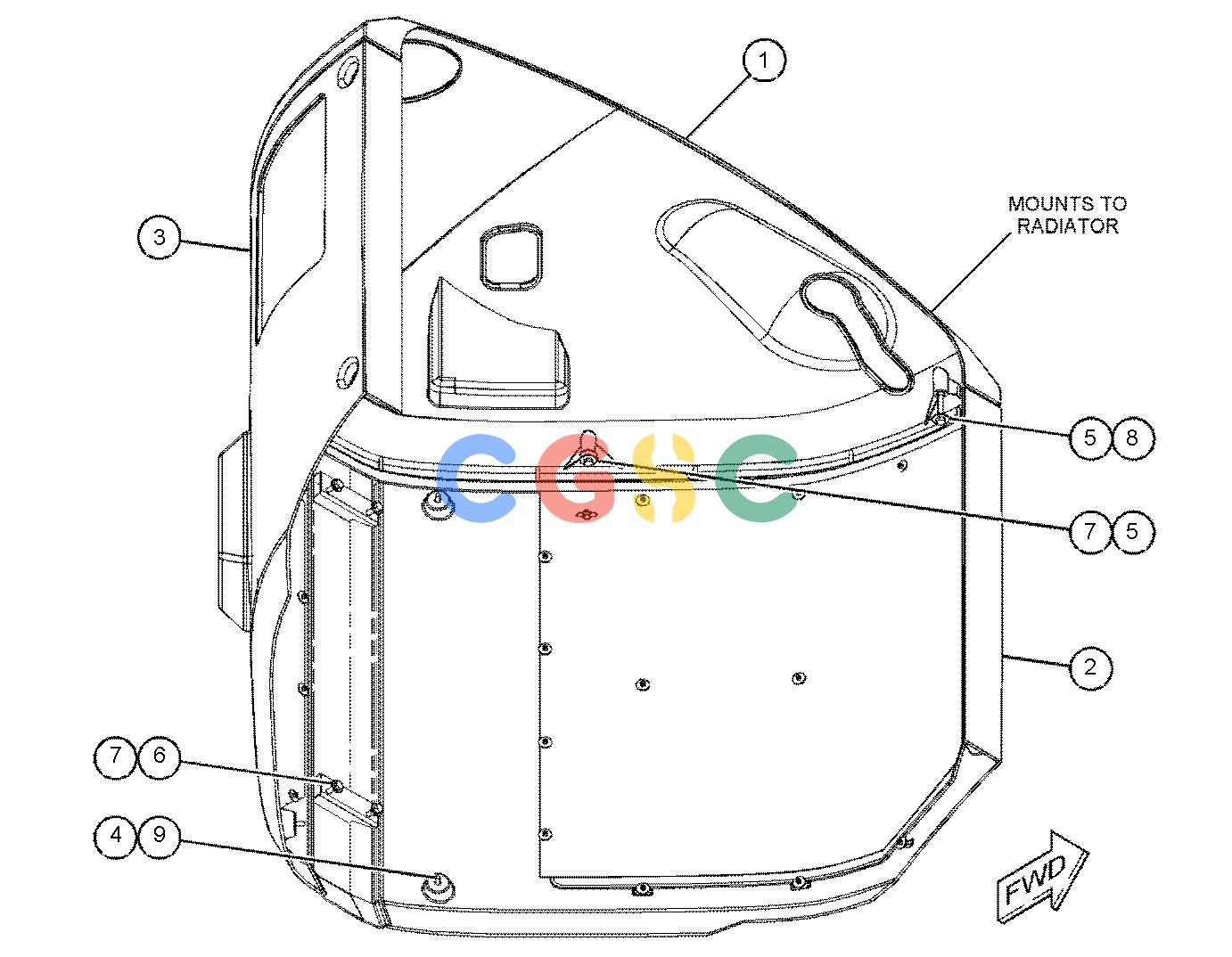

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 345-4128 | [1] | COVER AS-TOP | |
| 2. | 345-4129Y | [1] | GUARD GP-RADIATOR(LH) | |
| 3. | 345-4131Y | [1] | GUARD GP-RADIATOR(RH) | |
| 4. | 5P-4116 | [8] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 5. | 7X-0578 | [6] | WASHER-HARD(10.2X32X2.5-MM THK) | |
| 6. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 7. | 8T-4136M | [8] | BOLT(M10X1.5X25-MM) | |
| 8. | 8T-4172M | [1] | BOLT(M10X1.5X80-MM) | |
| 9. | 8T-4908M | [8] | BOLT(M8X1.25X25-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
