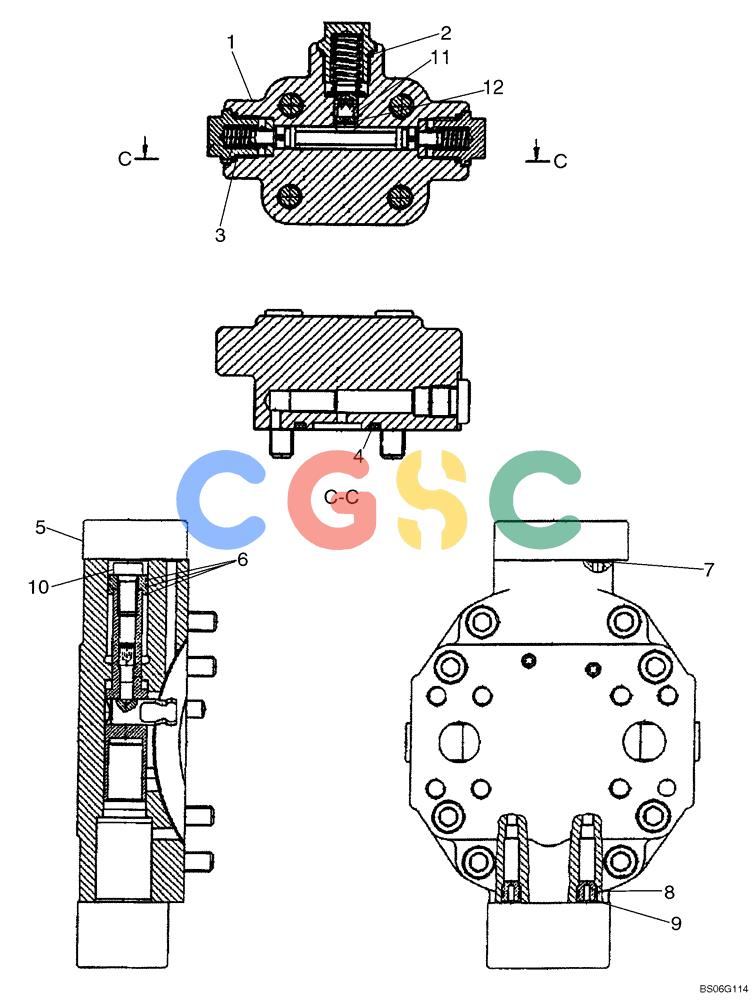

纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (06-12) - HYDROSTATIC MOTOR New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
972 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 401629A2 | [1] | HYDROSTATIC MOTOR,80CC | BURIncl. 1 - 11, Also Incl. Parts On Figure 06-11 |
| . . | 401629A2R | [1] | REMAN-HYDROSTATIC MOTOR | BURRemanufactured, HYDROSTATIC MOTOR, 80CC |
| . . | 401629A2C | [1] | CORE-HYDROSTATIC MOTOR | BURReturn Number |
| 1. | 87441434 | [1] | VALVE | BURFlush And Boost Without Orifice |
| 2. | 87441440 | [1] | SEAL | BUR |
| 3. | 87441439 | [2] | SEAL | BUR |
| 4. | 87441437 | [1] | SEAL | BUR |
| 5. | 87441444 | [1] | VALVE | BURFlush and Boost Pressure,No Longer Available; Order Ref 1, Ref 11 and Ref 12 Superseded by part number: 87528596, 87441434, 87528595 |
| 6. | 87441447 | [3] | RING | BURSquare |
| 7. | 238-8011 | [6] | O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro | CAS Superseded by part number: 87778078, 70933922 |
| 8. | 87441438 | [2] | SEAL | BUR |
| 9. | 87441445 | [2] | SEAL | BUR |
| 10. | 864-12025 | [1] | HEX SOC SCREW,M12 x 25mm, Cl 8.8 | CASNot Illustrated Superseded by part number: 87016466 |
| 11. | 87528595 | [1] | ORIFICE | BURFlushing |
| 12. | 87528596 | [1] | ORIFICE RING | BURRetaining |
