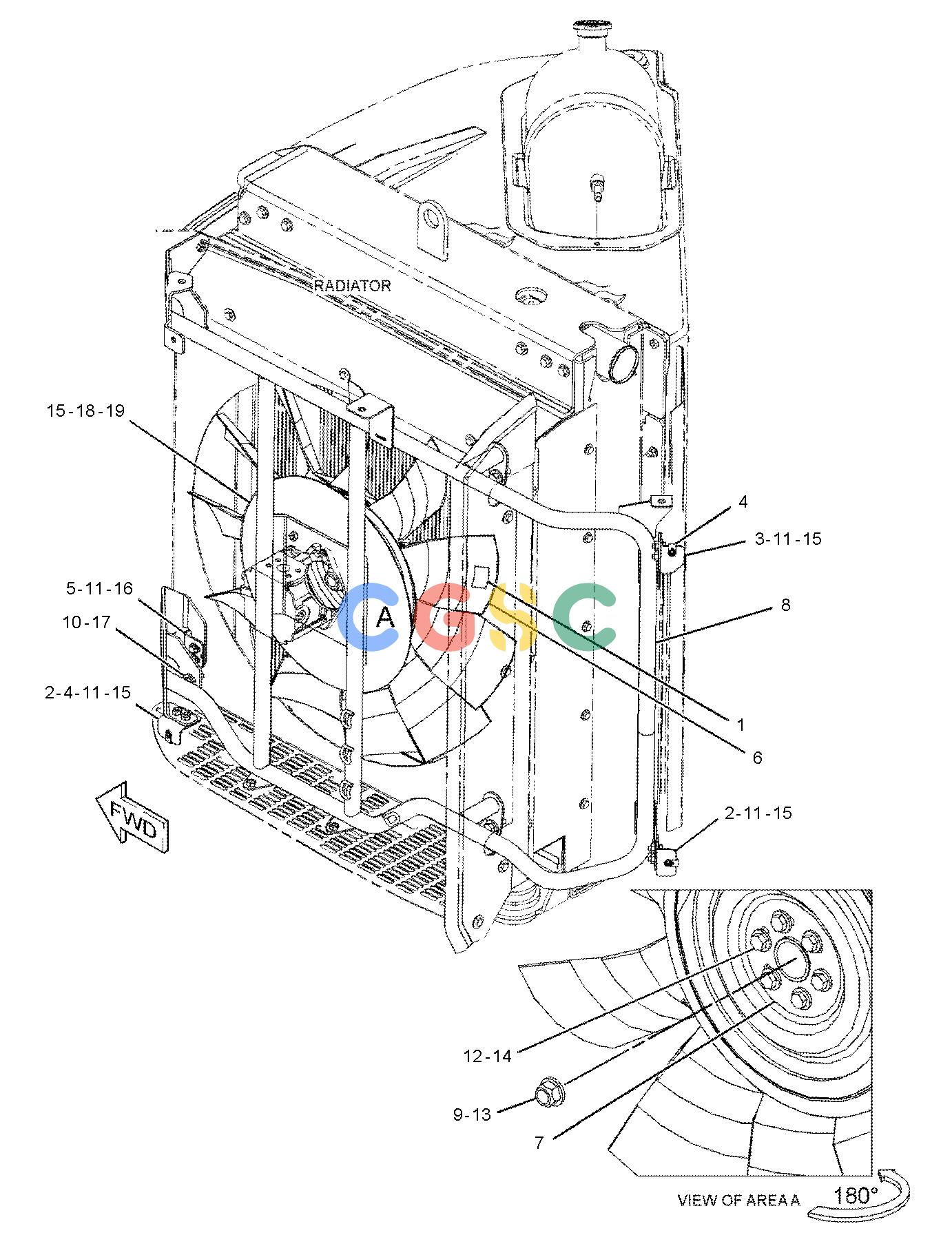

卡特零件查询（725C） 393-1202: FAN GP-SUCTION
广数供应链运营团队, 14 02月, 2025，浏览：
396 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1U-6605B | | TAPE-REFLECTIVE | |
| 2. | 341-8597 | [2] | BRACKET | |
| 3. | 348-3058 | [1] | BRACKET | |
| 4. | 352-9305 | [4] | NUT-SPRING | |
| 5. | 362-4588 | [1] | BRACKET | |
| 6. | 362-4591 | [1] | SPIDER AS-FAN(11-BLADE) | |
| 7. | 393-1201 | [1] | BOSS-MOUNTING | |
| 8. | 393-1203 | [1] | SUPPORT AS | |
| | 7T-1099 | [5] | LINK | |
| | 8T-3612M | [14] | NUT-WELD(M8X1.25-THD) | |
| 9. | 2K-4821 | [1] | LOCKNUT(5/8-18-THD) | |
| 10. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 11. | 5P-4116 | [8] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 12. | 7X-7729 | [6] | WASHER(11X25X3-MM THK) | |
| 13. | 8T-4122 | [1] | WASHER-HARD(17X32X3.5-MM THK) | |
| 14. | 8T-4136M | [6] | BOLT(M10X1.5X25-MM) | |
| 15. | 8T-4189M | [8] | BOLT(M8X1.25X20-MM) | |
| 16. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| 17. | 8T-4956M | [4] | BOLT(M12X1.75X35-MM) | |
| 18. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 19. | | [1] | PLATE |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
