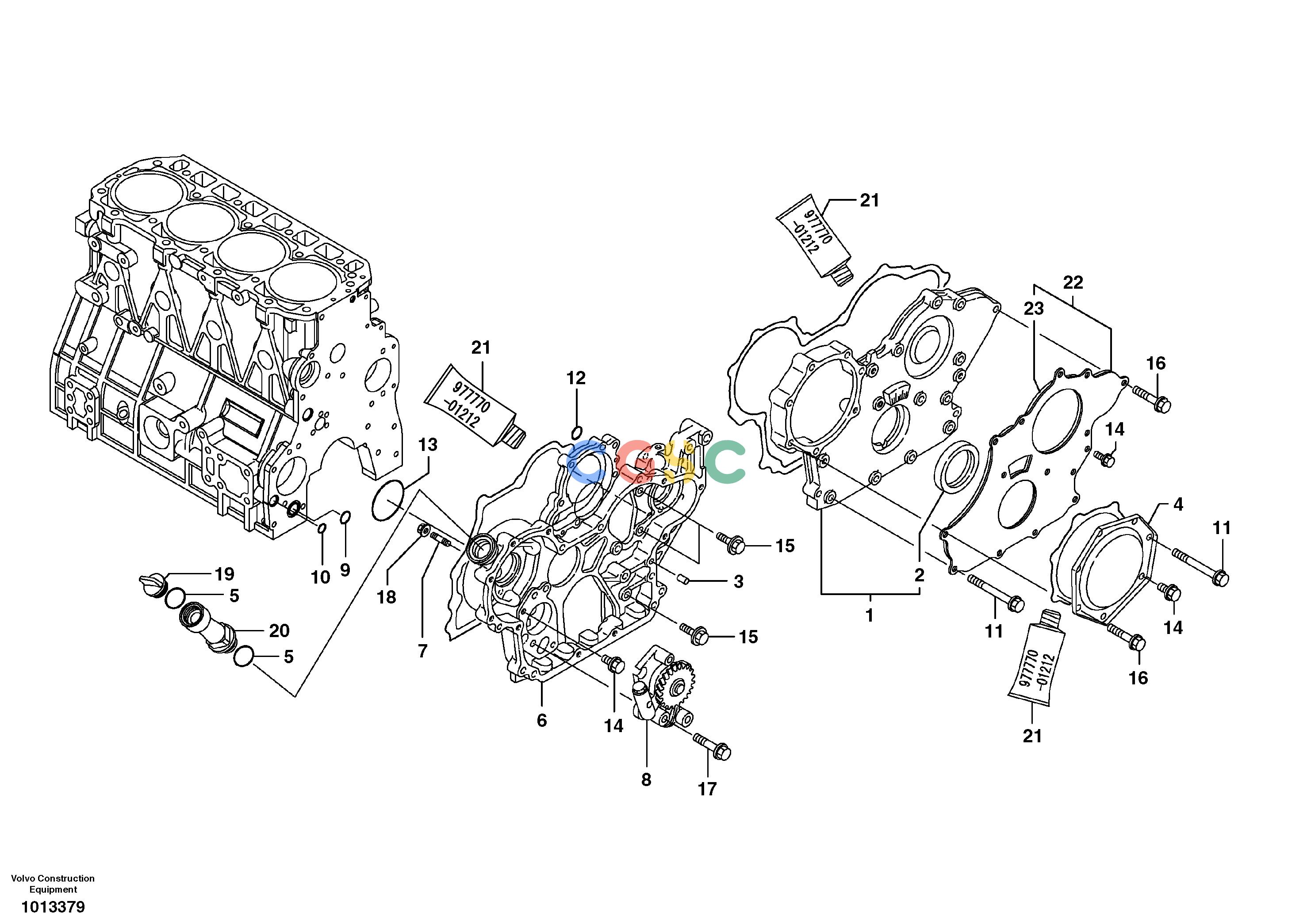

沃尔沃零件查询ECR88 Timing gear casingS/N 10001-140108279041-8279042NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
283 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14521507
|
[1] |
Housing
|
|
| 2. |
VOE14514867
|
[1] |
Seal
|
|
| 3. |
VOE11714376
|
[4] |
Pin
|
|
| 4. |
VOE11714746
|
[1] |
Cover
|
|
| 5. |
VOE11714371
|
[2] |
O-ring
|
|
| 6. |
VOE14524622
|
[1] |
Housing
|
|
| 7. |
SA8240-02060
|
[4] |
Stud
|
|
| 8. |
VOE14525387
|
[1] |
Pump
|
|
| 9. |
VOE11714738
|
[1] |
O-ring
|
|
| 10. |
VOE11714739
|
[1] |
O-ring
|
|
| 11. |
VOE14521510
|
[7] |
Bolt
|
|
| 12. |
SA8210-08860
|
[1] |
O-ring
|
|
| 13. |
VOE14521512
|
[1] |
Wrapping
|
|
| 14. |
VOE11714372
|
[5] |
Bolt
|
|
| 15. |
VOE11714388
|
[3] |
Bolt
|
|
| 16. |
VOE11714487
|
[10] |
Bolt
|
|
| 17. |
VOE11714377
|
[3] |
Bolt
|
|
| 18. |
VOE14521513
|
[4] |
Nut
|
|
| 19. |
VOE11714383
|
[1] |
Cap
|
|
| 20. |
SA8210-05300
|
[1] |
Pipe
|
|
| 21. |
VOE14543857
|
[1] |
Gasket
|
|
| 22. |
VOE14521515
|
[1] |
Cover
|
|
| 23. |
VOE14521516
|
[1] |
Sponge
|
|
