卡特零件查询（725C） 364-5176: GUARD GP-CRANKCASE
广数供应链运营团队, 14 02月, 2025，浏览：
338 次

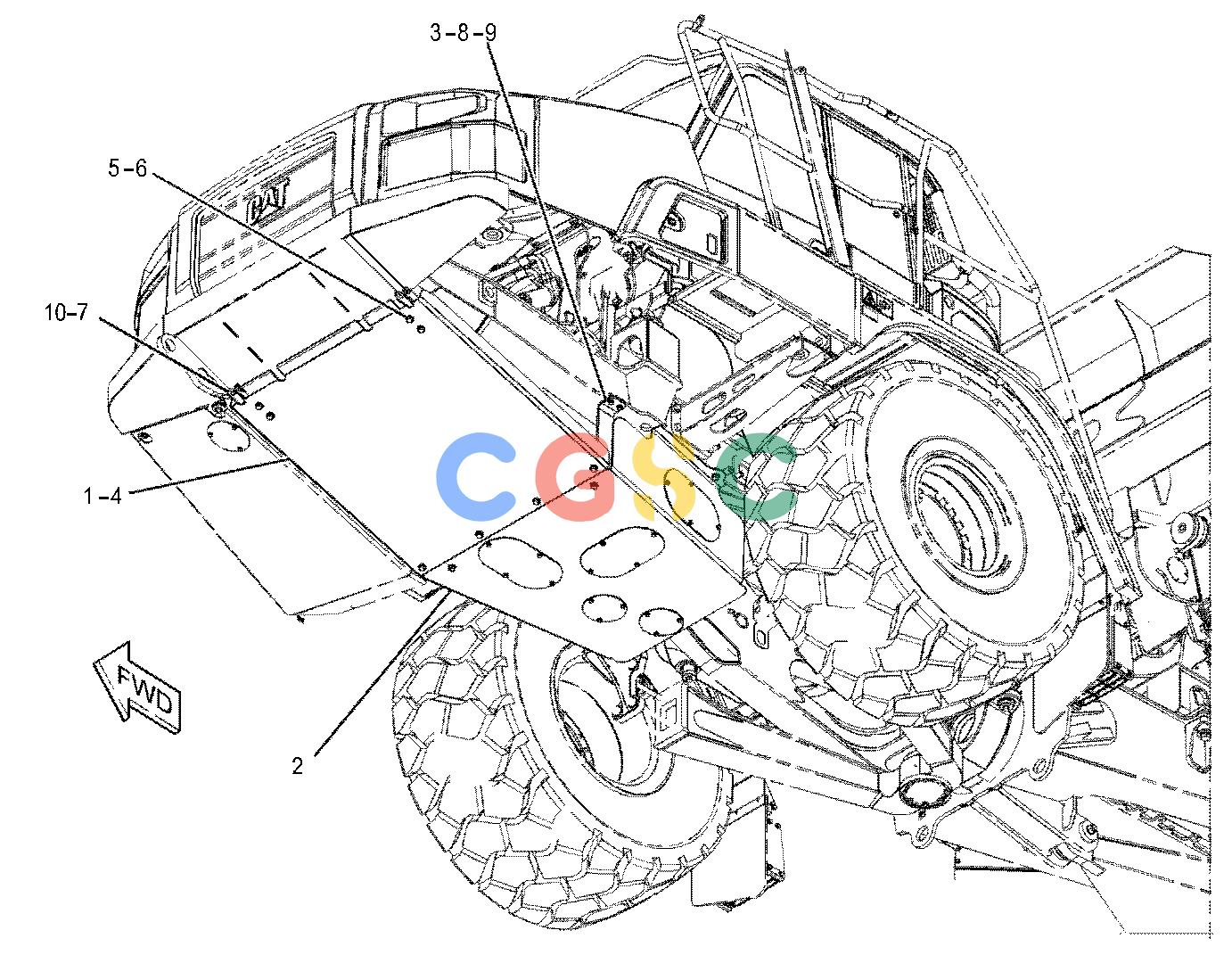

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 385-3365 | [1] | PLATE AS-BRACKET | |
| | 355-8941M | [1] | NUT-WELD(M16X2-THD) | |
| 2. | 388-0930Y | [1] | GUARD GP-CRANKCASE(REAR)(REAR) | |
| 3. | 393-2122 | [1] | PLATE AS-BRACKET | |
| | 355-8941M | [1] | NUT-WELD(M16X2-THD) | |
| 4. | 425-5782CY | [1] | GUARD GP-CRANKCASE(FRONT) | |
| 5. | 6S-6646 | [2] | PIN-COTTER | |
| 6. | 3E-9411 | [8] | WASHER-HARD(17.5X38X6-MM THK) | |
| 7. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 8. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 9. | 7X-2553M | [8] | BOLT(M16X2X40-MM) | |
| 10. | 9K-3036 | [2] | PIN | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
