现代零件查询15/18/20/23BRP-7 FREE LIFT CYLINDER (TF-MAST, 15/23BRP-7)EPC Hyundai _现代Hyundai_工程机械

现代零件查询15/18/20/23BRP-7 FREE LIFT CYLINDER (TF-MAST, 15/23BRP-7)EPC Hyundai

广数供应链运营团队, 14 02月, 2025，浏览： 252 次

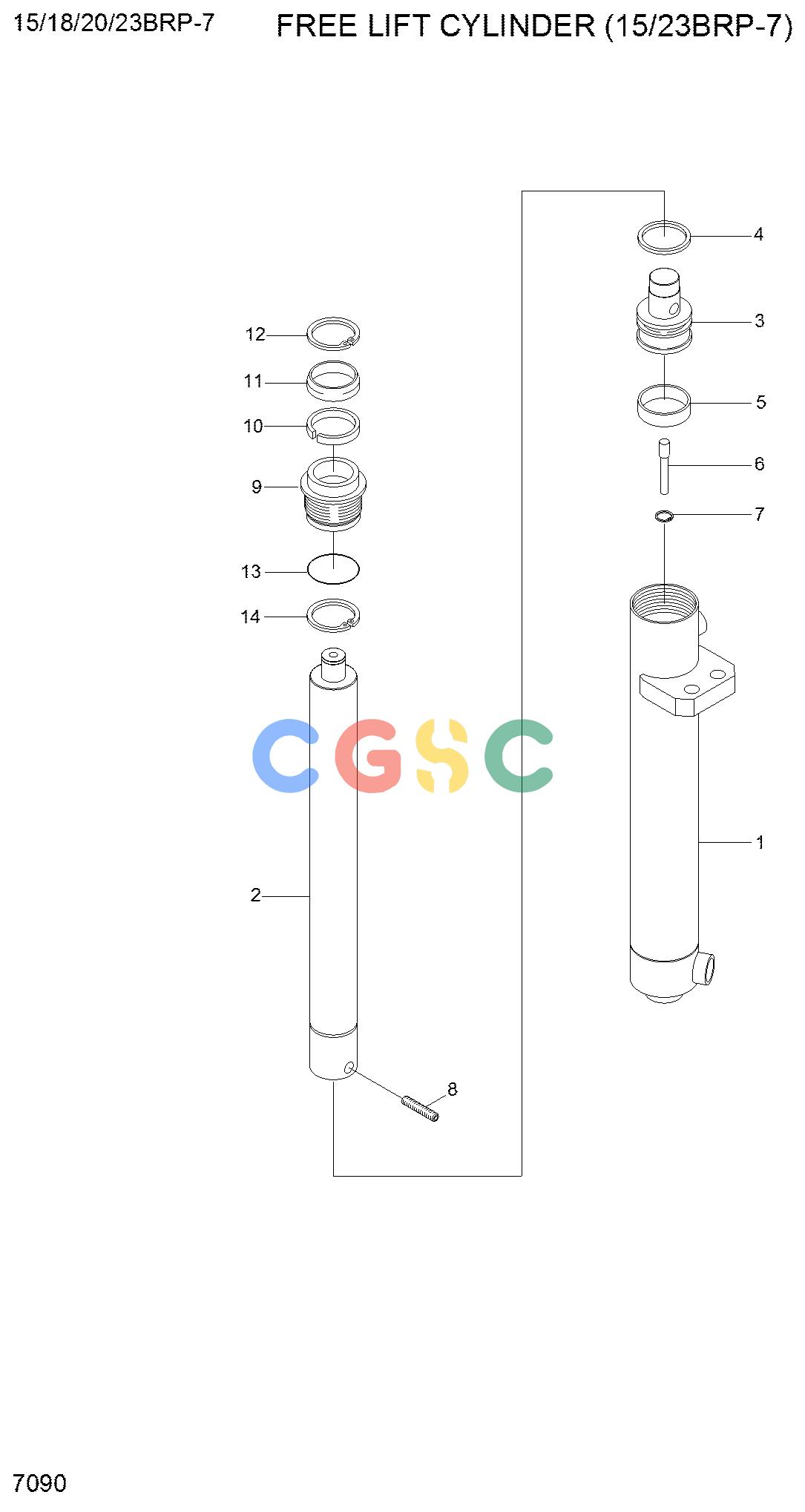

Pos.	Part No	Qty	Parts name	Comments
.	33HR-07610	[1]	FREE LIFT CYL ASSY	15,TF500
.	33HR-07610	[1]	FREE LIFT CYL ASSY	23,TF500
.	33HR-07620	[1]	FREE LIFT CYL ASSY	15,TF530
.	33HR-07620	[1]	FREE LIFT CYL ASSY	23,TF530
.	33HR-07630	[1]	FREE LIFT CYL ASSY	15,TF610
.	33HR-07630	[1]	FREE LIFT CYL ASSY	23,TF610
.	33HR-07640	[1]	FREE LIFT CYL ASSY	15,TF685
.	33HR-07640	[1]	FREE LIFT CYL ASSY	23,TF685
.	33HR-07650	[1]	FREE LIFT CYL ASSY	15,TF760
.	33HR-07650	[1]	FREE LIFT CYL ASSY	23,TF760
.	33HR-07660	[1]	FREE LIFT CYL ASSY	15,TF815
.	33HR-07660	[1]	FREE LIFT CYL ASSY	23,TF815
.	33HR-07670	[1]	FREE LIFT CYL ASSY	15,TF865
.	33HR-07670	[1]	FREE LIFT CYL ASSY	23,TF865
.	33HR-07680	[1]	FREE LIFT CYL ASSY	15,TF930
.	33HR-07680	[1]	FREE LIFT CYL ASSY	23,TF930
.	33HR-07690	[1]	FREE LIFT CYL ASSY	15,TF1010
.	33HR-07690	[1]	FREE LIFT CYL ASSY	23,TF1010
1.	XKCD-01737	[1]	TUBE ASSY	TF500
1.	XKCD-01740	[1]	TUBE ASSY	TF530
1.	XKCD-01743	[1]	TUBE ASSY	TF610
1.	XKCD-01745	[1]	TUBE ASSY	TF685
1.	XKCD-01748	[1]	TUBE ASSY	TF760
1.	XKCD-01751	[1]	TUBE ASSY	TF815
1.	XKCD-01754	[1]	TUBE ASSY	TF865
1.	XKCD-01757	[1]	TUBE ASSY	TF930
1.	XKCD-01760	[1]	TUBE ASSY	TF1010
2.	XKCD-01738	[1]	ROD	TF500
2.	XKCD-01741	[1]	ROD	TF530
2.	XKCD-01744	[1]	ROD	TF610
2.	XKCD-01746	[1]	ROD	TF685
2.	XKCD-01749	[1]	ROD	TF760
2.	XKCD-01752	[1]	ROD	TF815
2.	XKCD-01755	[1]	ROD	TF865
2.	XKCD-01758	[1]	ROD	TF930
2.	XKCD-01761	[1]	ROD	TF1010
3.	XKCD-01644	[1]	PISTON
K4.	XKCD-00840	[1]	SEAL-PISTON
K5.	XKCD-00841	[1]	SET SCREW
6.	XKCD-01646	[1]	VALVE-CHECK
7.	XKCD-00598	[1]	RING-RETAINING
8.	XKCD-00843	[1]	SCREW-SET
9.	XKCD-00844	[1]	ROD COVER
K10.	XKCD-01647	[1]	U-PACKING
K11.	XKCD-00846	[1]	DUST WIPER
12.	XKCD-00847	[1]	RING-RETAINING
K13.	XKCD-00848	[1]	O-RING
K14.	XKCD-00849	[1]	RING-BACK UP
K.	XKCD-01739	[1]	SEAL KIT	SEE ILLUST
