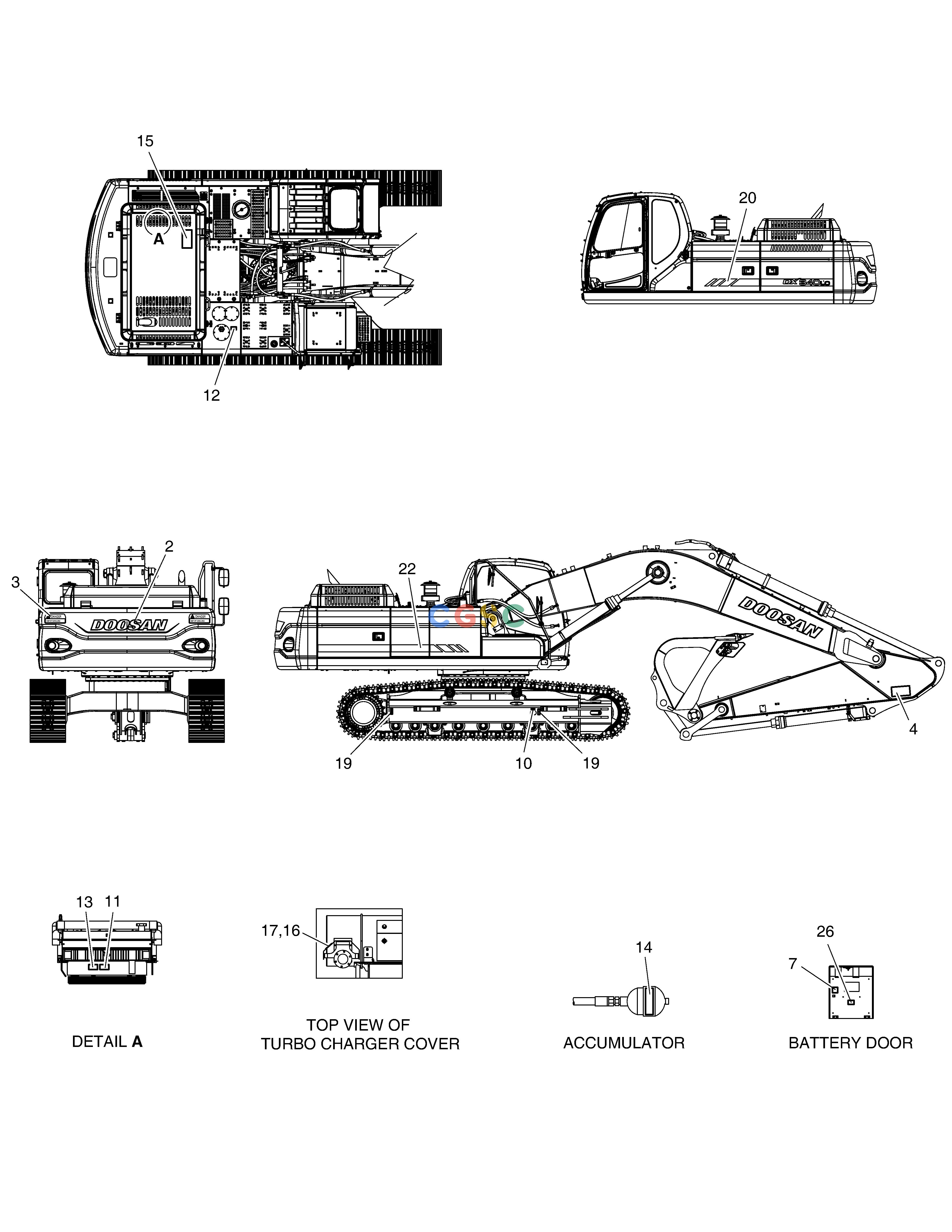

斗山零件查询NAME PLATE - EXPORT DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
259 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1015164N
|
[-] |
NAME PLATE ASS'Y
|
|
| 10. |
190-00122
|
[2] |
PLATE;NAME
|
|
| 11. |
190-00694
|
[1] |
PLATE;NAME
|
|
| 12. |
190-00691A
|
[1] |
PLATE;NAME
|
|
| 13. |
190-00692
|
[1] |
PLATE;NAME
|
|
| 14. |
190-00703
|
[1] |
PLATE;NAME
|
|
| 15. |
190-00522A
|
[1] |
PLATE;NAME
|
|
| 16. |
190-00648A
|
[1] |
PLATE;NAME
|
|
| 17. |
2122-1002D4
|
[4] |
RIVET
|
|
| 19. |
K1042074A
|
[4] |
PLATE;NAME
|
|
| 2. |
K1011645D2
|
[1] |
PLATE;NAME
|
|
| 20. |
K1012258
|
[1] |
PLATE;NAME
|
|
| 22. |
K1012260
|
[1] |
PLATE;NAME
|
|
| 26. |
K1015739
|
[1] |
PLATE;NAME
|
|
| 3. |
2190-3379A
|
[2] |
PLATE;NAME
|
|
| 4. |
190-00652
|
[2] |
PLATE;NAME
|
|
| 7. |
2190-2533A
|
[1] |
PLATE;NAME
|
|
