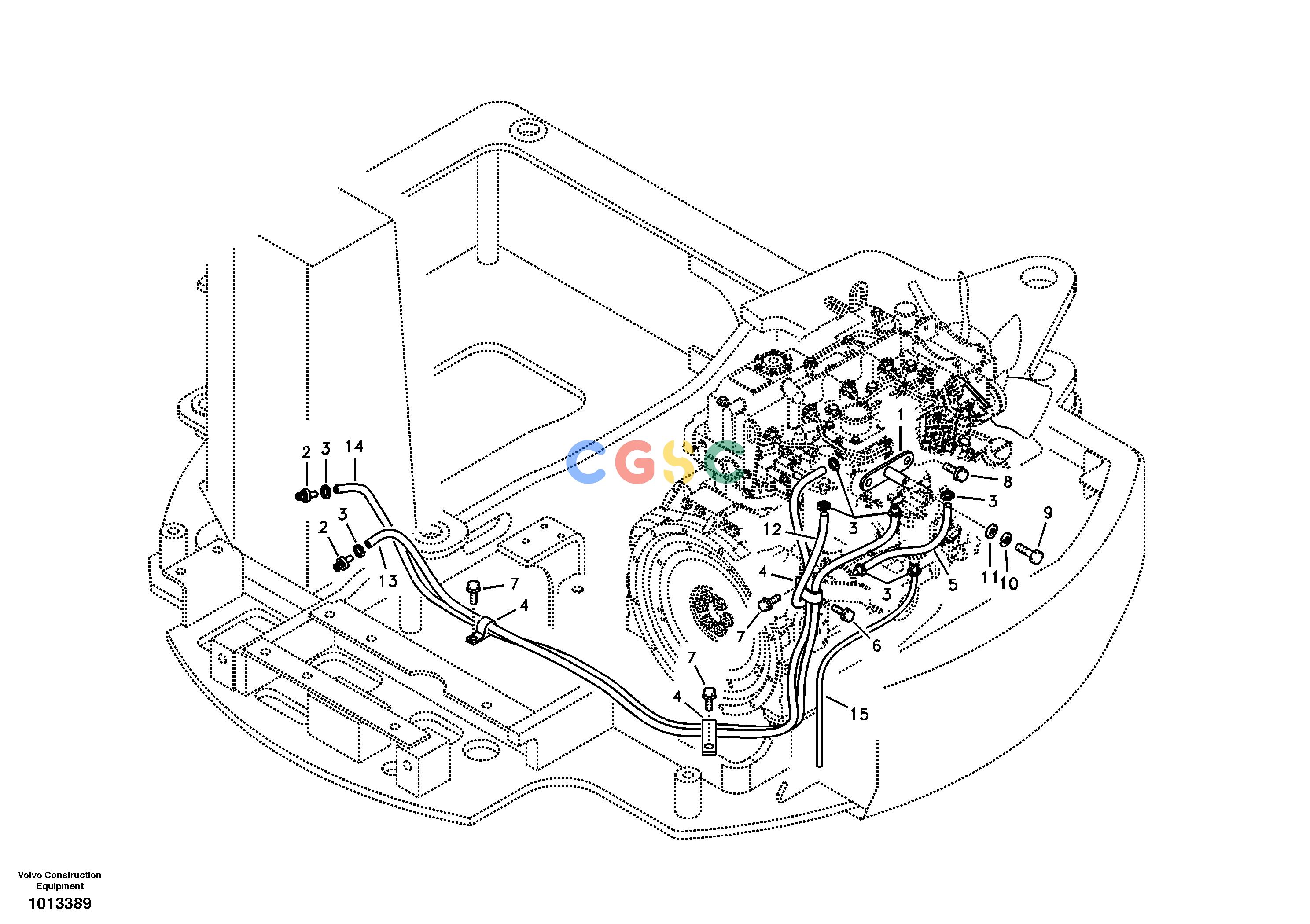

沃尔沃零件查询ECR88 Fuel pipe - Fuel tankS/N 10001-14010 NoneNone8279041,8279042Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
846 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14520115
|
[1] |
Bracket
|
|
| 2. |
VOE14519083
|
[2] |
Hose nipple
|
|
| 3. |
VOE943469
|
[9] |
Hose clamp
|
|
| 4. |
VOE14512153
|
[3] |
Clip
|
|
| 5. |
VOE14881186
|
[1] |
Fuel hose
|
SER NO 10001-12939
|
| |
VOE14881964
|
[1] |
Fuel hose
|
SER NO 12940-
|
| 6. |
VOE946544
|
[2] |
Flange screw
|
|
| 7. |
VOE946471
|
[3] |
Flange screw
|
|
| 8. |
VOE946173
|
[2] |
Flange screw
|
|
| 9. |
VOE983249
|
[1] |
Hexagon screw
|
|
| 10. |
VOE955921
|
[1] |
Spring washer
|
|
| 11. |
VOE993835
|
[1] |
Plain washer
|
|
| 12. |
VOE14881085
|
[2] |
Fuel hose
|
|
| 13. |
VOE14881088
|
[1] |
Fuel hose
|
|
| 13. |
SA9443-30309
|
[1] |
Hose protection
|
|
| 14. |
VOE14881089
|
[1] |
Fuel hose
|
|
| 14. |
SA9443-30309
|
[1] |
Hose protection
|
|
| 15. |
VOE14881122
|
[1] |
Hose
|
|
