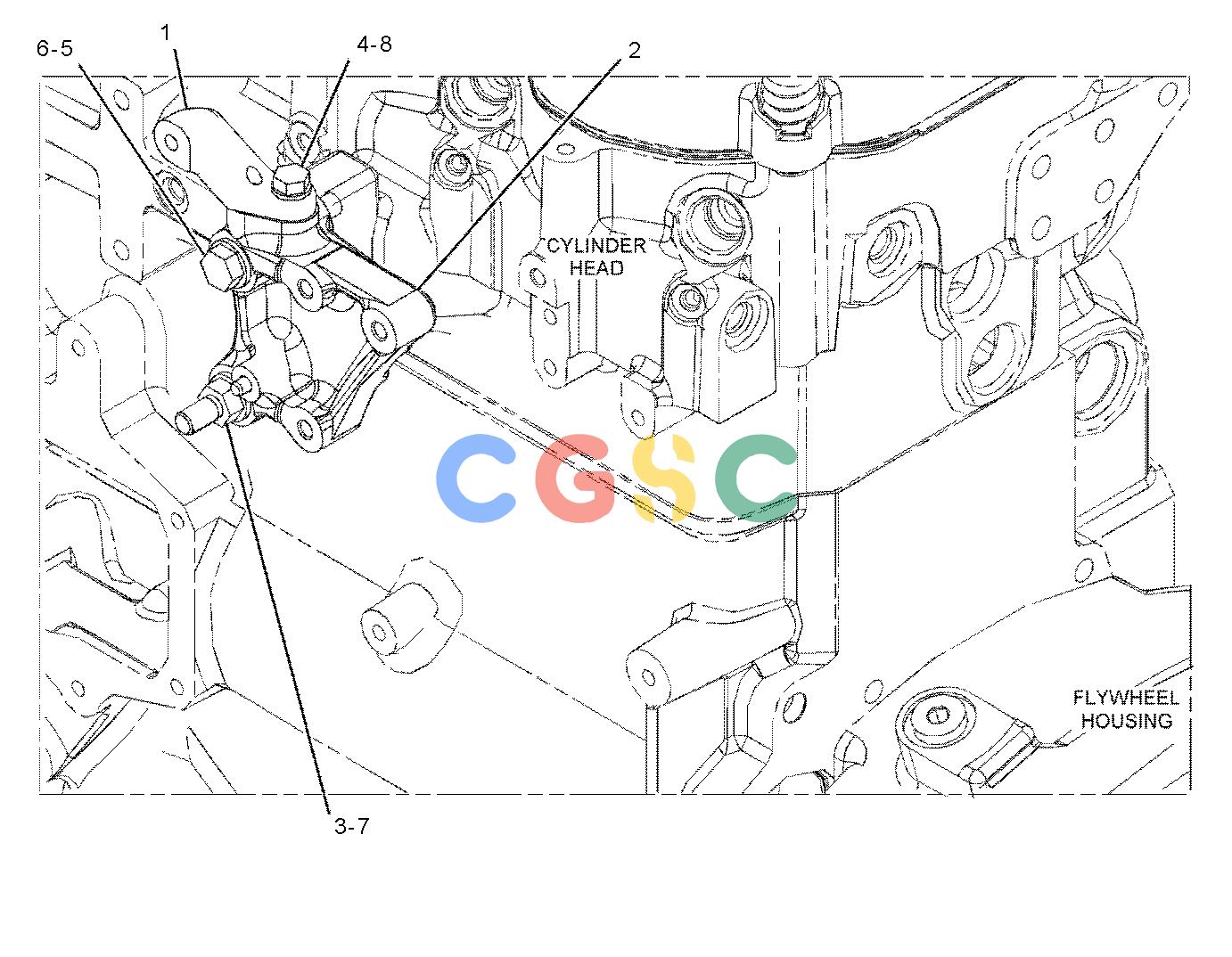

卡特零件查询（725C） 344-4056: BRACKET GP-MOUNTING
广数供应链运营团队, 14 02月, 2025，浏览：
130 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 357-2104 | [1] | BRACKET | |
| 2. | 357-8276 | [1] | BRACKET AS | |
| | 4F-2609 | [2] | DOWEL | |
| 3. | 197-7481M | [1] | STUD(M10X1.5X83-MM) | |
| 4. | 5L-2087 | [1] | SPACER(9.25X13.72X50.8-MM THK) | |
| 5. | 6V-1820M | [2] | BOLT(M10X1.5X30-MM) | |
| 6. | 6V-4249M | [1] | BOLT(M10X1.5X50-MM) | |
| 7. | 6V-5217M | [1] | BOLT(M8X1.25X20-MM) | |
| 8. | 6V-5221M | [1] | BOLT(M8X1.25X80-MM) | |
| 9. | 6V-5839 | [3] | WASHER(11X21X2.5-MM THK) | |
| 10. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 9M-1974 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
