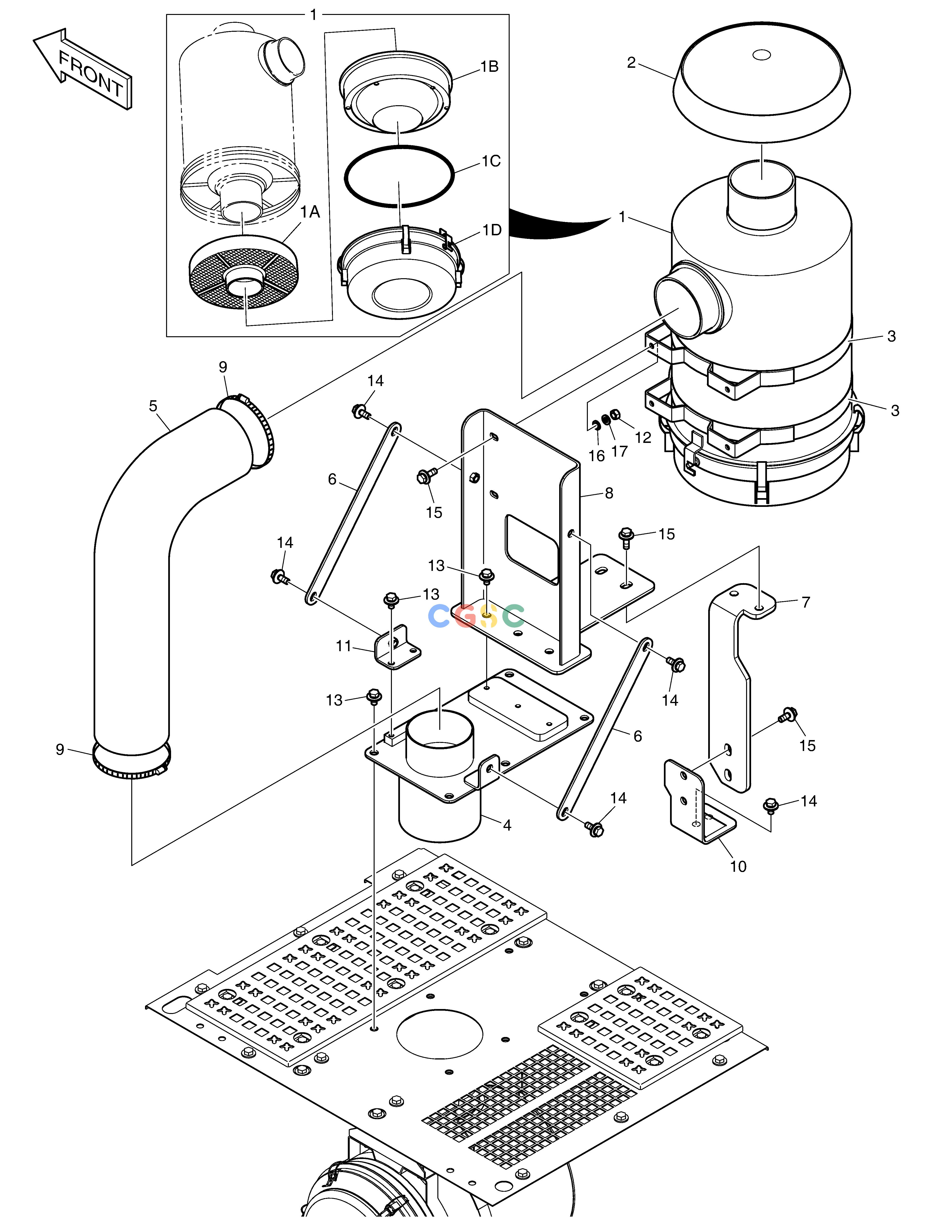

斗山零件查询AIR CLEANER ASS'Y - OIL WASHED DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
314 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400414-00029
|
[-] |
AIR CLEANER ASSY;OIL
|
|
| 1. |
K1009279
|
[1] |
AIR CLEANER
|
|
| 10. |
110406-00125
|
[1] |
BRACKET
|
|
| 11. |
110406-00014
|
[1] |
BRACKET
|
|
| 12. |
S4012733
|
[4] |
NUT
|
|
| 13. |
DS0025019
|
[11] |
BOLT
|
|
| 14. |
DS0025020
|
[6] |
BOLT
|
|
| 15. |
DS0025041
|
[8] |
BOLT;SET
|
|
| 16. |
S5020703
|
[4] |
WASHER;PLAIN M12
|
|
| 17. |
S5102703
|
[4] |
WASHER
|
|
| 1A. |
K9001293
|
[1] |
ELEMENT;OIL WASHED
|
|
| 1B. |
400601-00005
|
[1] |
|
|
| 1C. |
401002-00255
|
[1] |
|
|
| 1D. |
400601-00004
|
[1] |
|
|
| 2. |
K1009280
|
[1] |
CAP;RAIN
|
|
| 3. |
K1009281
|
[2] |
BAND
|
|
| 4. |
420202-00009
|
[1] |
PIPE;AIR
|
|
| 5. |
420101-00018
|
[1] |
HOSE;AIR
|
|
| 6. |
250201-00005
|
[2] |
PLATE
|
|
| 7. |
110406-00091
|
[1] |
BRACKET
|
|
| 8. |
110436-00006
|
[1] |
BRACKET;AIR PIPE
|
|
| 9. |
S8500168
|
[2] |
CLAMP;HOSE
|
|
