纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (04-19[01]) - HARNESS, CANOPY New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
382 次

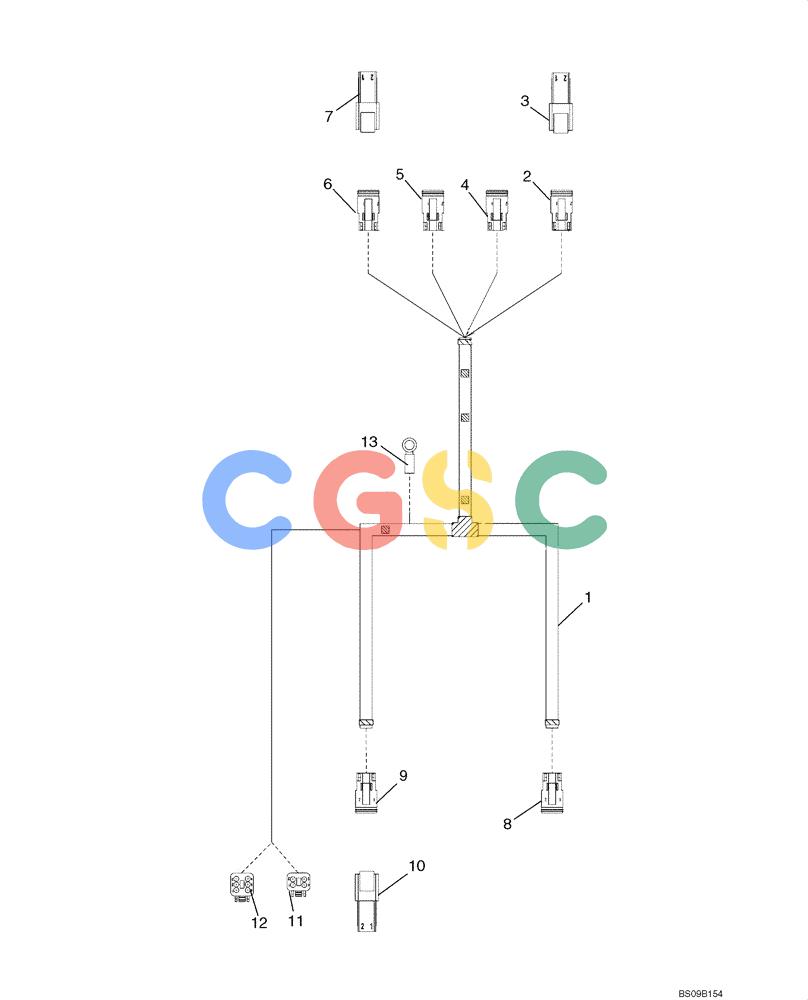

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87746194 | [1] | HARNESS, Canopy Lights; Includes Ref 2-12 | |
| 2. | 225315C1 | [1] | ELEC CONNECTOR,Male, 2 Pin | IHFront Right Lower Worklight Superseded by part number: 87696073 |
| 3. | 225318C1 | [1] | ELEC CONNECTOR,2 Pin | IHDustcap; Use With Ref 2 Superseded by part number: 86500166 |
| 12. | 225352C1 | [1] | WEDGE | CASCONNECTOR, To Mirco Harness (6 Receptacles) Superseded by part number: 87694150 |
