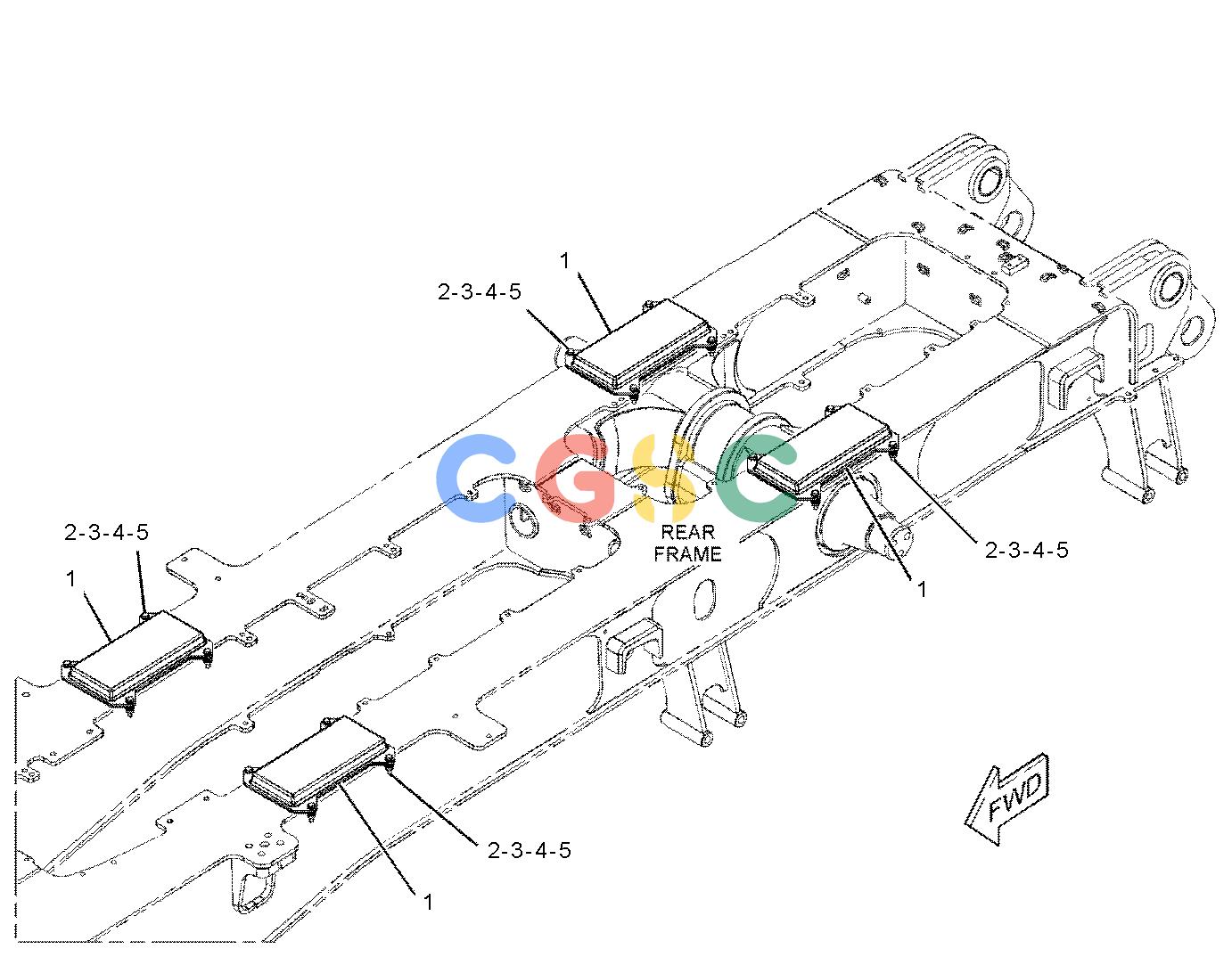

卡特零件查询（725C） 387-5367: BRACKET GP-MOUNTING
广数供应链运营团队, 14 02月, 2025，浏览：
697 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 460-1110 | [2] | PIN-GUIDE | |
| 2. | 384-3267 | [1] | BRACKET AS | |
| 3. | 387-5356 | [1] | BRACKET AS | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 4. | 392-8472 | [1] | BRACKET AS | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 5. | 420-0210 | [1] | BRACKET AS | |
| 6. | 8T-4189M | [10] | BOLT(M8X1.25X20-MM) | |
| 7. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 8. | 5P-4116 | [10] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 9. | 7K-1181 | [1] | STRAP-CABLE | |
| 10. | 8M-2773 | [1] | CLIP(LOOP) | |
| 11. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 12. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 13. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| | M | | METRIC PART |
