纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (04-20[01]) - HARNESS - CAB LIGHTS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
393 次

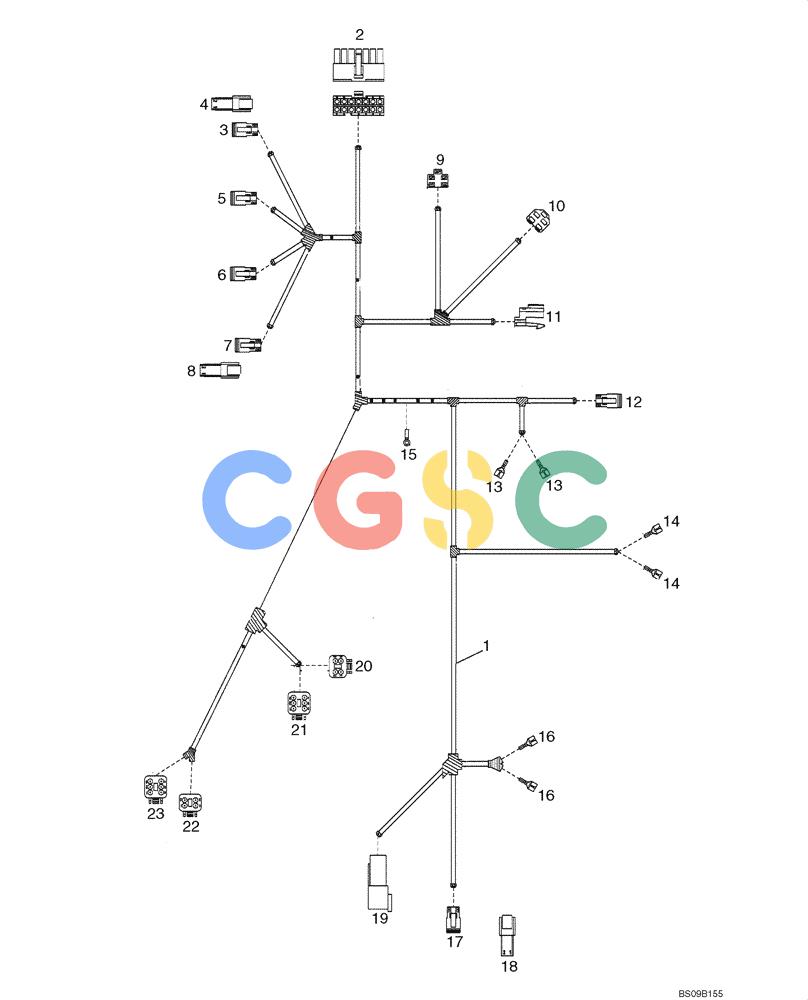

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87738118 | [1] | WIRE HARNESS | BURCab Lights; Incl. Ref 2-23 |
| 4. | 225315C1 | [1] | ELEC CONNECTOR,Male, 2 Pin | IHDustcap; Used With Ref 3 Superseded by part number: 87696073 |
| 9. | NSS | [1] | NOT SERVICED SEPARATELY | CONConnector, Thermostat |
| 10. | 475082C1 | [1] | CONNECTOR,ELECTRIC | CASFan Switch Superseded by part number: 87697741 |
| 15. | 1964712C1 | [1] | TERMINAL CONNECTOR | CASGround |
| 19. | 225326C1 | [1] | ELEC CONNECTOR,Male, 4 Pin | IHCondenser Superseded by part number: 87694154 |
| 21. | 225351C1 | [1] | ELEC CONNECTOR,Female, 6 Pin | CASTo Microcontroller Harness (6 Receptacles) Superseded by part number: 87694112 |
