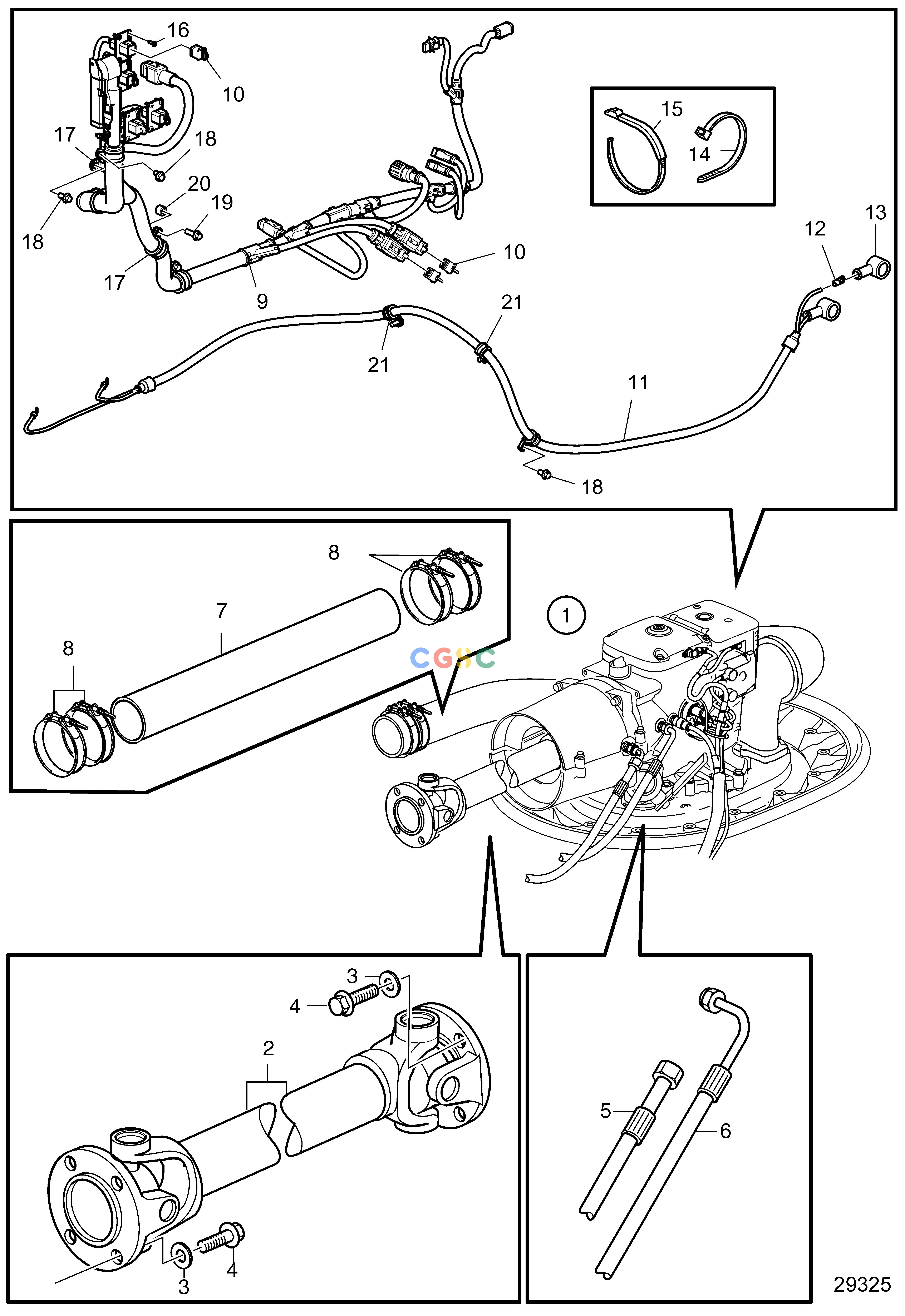

沃尔沃零件查询D13C1-A MP; D13C2-A MP; D13C3-A MP; D13C4-A MP; D13C6-A MPTransmissionsConnecting Components IPS3, Jack Shaft, Length 2400-2500mmEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
654 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21446040
|
[1] |
Extension kit
|
|
| 2. |
3889354
|
[1] |
Propeller shaft
|
|
| 3. |
984817
|
[8] |
Flange screw
|
|
| 4. |
955897
|
[8] |
Washer
|
|
| 5. |
21356943
|
[1] |
Hose, oil cooler
|
L=3800mm
|
| 6. |
3889341
|
[1] |
Hose, oil cooler
|
L=3300mm
|
| 7. |
21227466
|
[1] |
Exhaust hose
|
8''
|
| 8. |
21609813
|
[4] |
Hose clamp
|
|
| 9. |
22023243
|
[1] |
Wiring harness
|
L=3500mm
|
| 9. |
22023244
|
[1] |
Wiring harness
|
Option, L=5500mm
|
| 10. |
3840433
|
[6] |
Sealing plug
|
|
| 11. |
3594042
|
[1] |
Wiring harness, power supply
|
|
| 12. |
940336
|
[2] |
Cable terminal
|
|
| 13. |
3588539
|
[2] |
Protective cap
|
|
| 14. |
948211
|
[10] |
Cable tie
|
|
| 15. |
1075407
|
[4] |
Cable tie
|
|
| 16. |
994923
|
[16] |
Six point socket scr
|
|
| 17. |
947827
|
[4] |
Clamp
|
|
| 18. |
984733
|
[2] |
Flange screw
|
|
| 19. |
984735
|
[2] |
Flange screw
|
|
| 20. |
843075
|
[2] |
Spacer sleeve
|
|
| 21. |
949747
|
[3] |
Clamp
|
|
