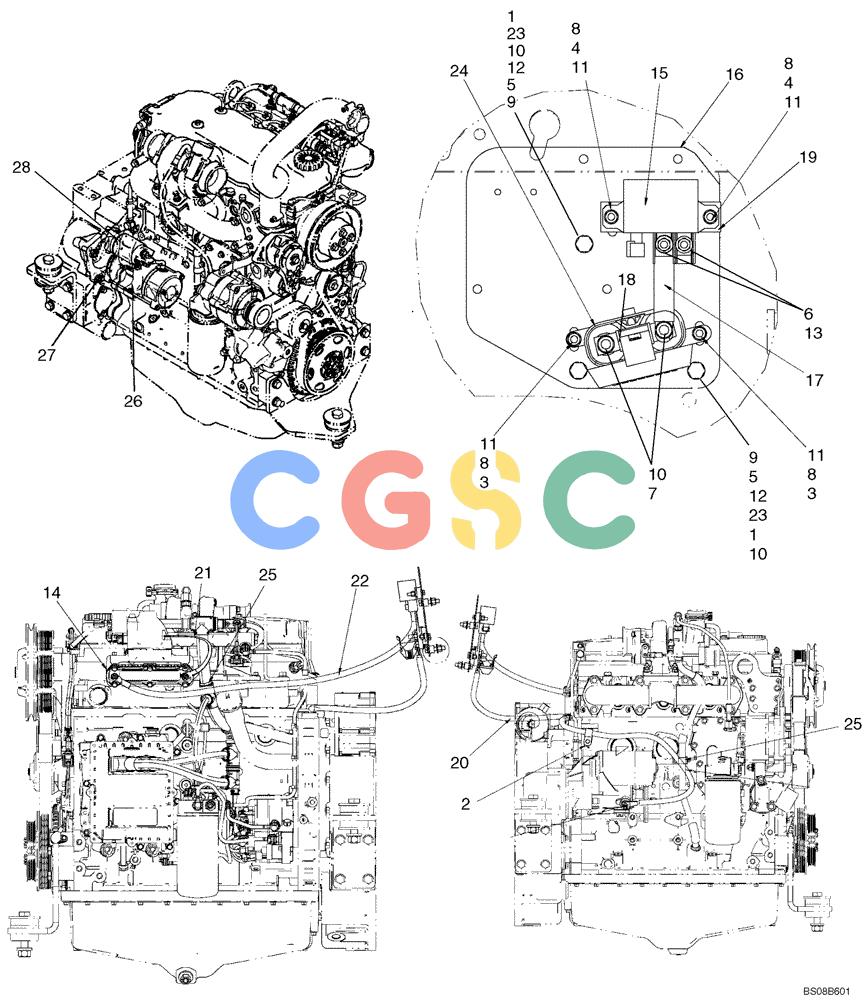

| 1. | 238-5011 | [3] | O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro | CAS Superseded by part number: 9672548, 87779390 |
| 2. | 515-23190 | [1] | CLAMP,3/4", Insul, 3/8" Bolt | CAS Superseded by part number: 86624005 |
| 3. | 614-6020 | [2] | BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd | CAS Superseded by part number: 120100 |
| 4. | 614-6035 | [2] | BOLT,Hex, M6 x 1 x 35mm, Cl 8.8, Full Thd | CAS Superseded by part number: 16604024 |
| 5. | 614-8040 | [2] | BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd | CAS Superseded by part number: 16044024 |
| 6. | 829-1406 | [2] | NUT,Hex, M6 x 1, Cl 10.9 | CAS Superseded by part number: 86500688, 87778396 |
| 7. | 829-1408 | [2] | NUT,Hex, M8 x 1.25, Cl 10.9 | CAS Superseded by part number: 43362, 87778059 |
| 8. | 832-10406 | [4] | NUT,M6 x 1, Cl 8 | CAS |
| 9. | 832-10408 | [3] | NUT,M8 x 1.25, Cl 8 | CAS Superseded by part number: 86528579 |
| 10. | 892-11008 | [5] | LOCK WASHER,M8 | IH Superseded by part number: 72187304, 83990583 |
| 11. | 895-11006 | [4] | WASHER,M6 x 12mm OD x 1.6mm | CAS Superseded by part number: 86588450 |
| 12. | 895-15008 | [3] | WASHER,M8 x 20 x 1.6 | CAS Superseded by part number: 86625263 |
| 13. | 322357 | [2] | BELLEVILLE WASHER,M6 x 14mm OD x 1.3mm Thk | NH |
| 14. | 2854837 | [1] | HEATER | TORGrid |
| 15. | 86619908 | [1] | RELAY,12V, 150A | ZEDCold Start |
| 16. | 87397601 | [1] | BRACKET, SUPPORTING | BURPlate Cold Start |
| 17. | 87410265 | [1] | BAR | IMOCold Start, Serial Range: Fuse-Relay |
| 18. | 87410602 | [1] | FUSE,300 Amp | IMO300 AMP |
| 19. | 87414237 | [1] | PLATE,25mm W x 102mm L x 10mm Thk | IMOBar 10mm Spacer |
| 20. | 87419615 | [1] | CABLE ASSY. | BURCold Start, Serial Range: Starter-Fuse |
| 21. | 87717884 | [1] | GROUND STRAP | BURCold Start Ground |
| 22. | 87729557 | [1] | CABLE | BURCABLE, Cold Start, Relay to Grid Heater |
| 23. | 407962A1 | [3] | SPACER | CAS |
| 24. | 440038A1 | [1] | JUNCTION BLOCK | RACBlock, Fuse Superseded by part number: 87302554 |
| 25. | D150521 | [2] | CLAMP | CAS |
| . . | 87475864 | [1] | MOTOR, STARTER INSTALL HEAVY DUTY, OPTIONAL; Not Serviced Order Components 26 - 28 | |
| 26. | 87577368 | [1] | STARTER MOTOR,3 hole | BELHEAVY, 12V 4.2 kw OPTIONAL |
| 26. | 87577368R | [1] | REMAN-STARTER,3 hole | RACD95B |
| 26. | 87577368C | [1] | CORE-STARTER | RACReturn Number |
| 27. | R54620 | [3] | BOLT | CAS |
| 28. | 82012426 | [1] | KIT | IMOSolenoid Assy. |
| 29. | 87584645 | [1] | RESISTOR | BURGrid Heater, Not illustrated, Used in place of Relay |
