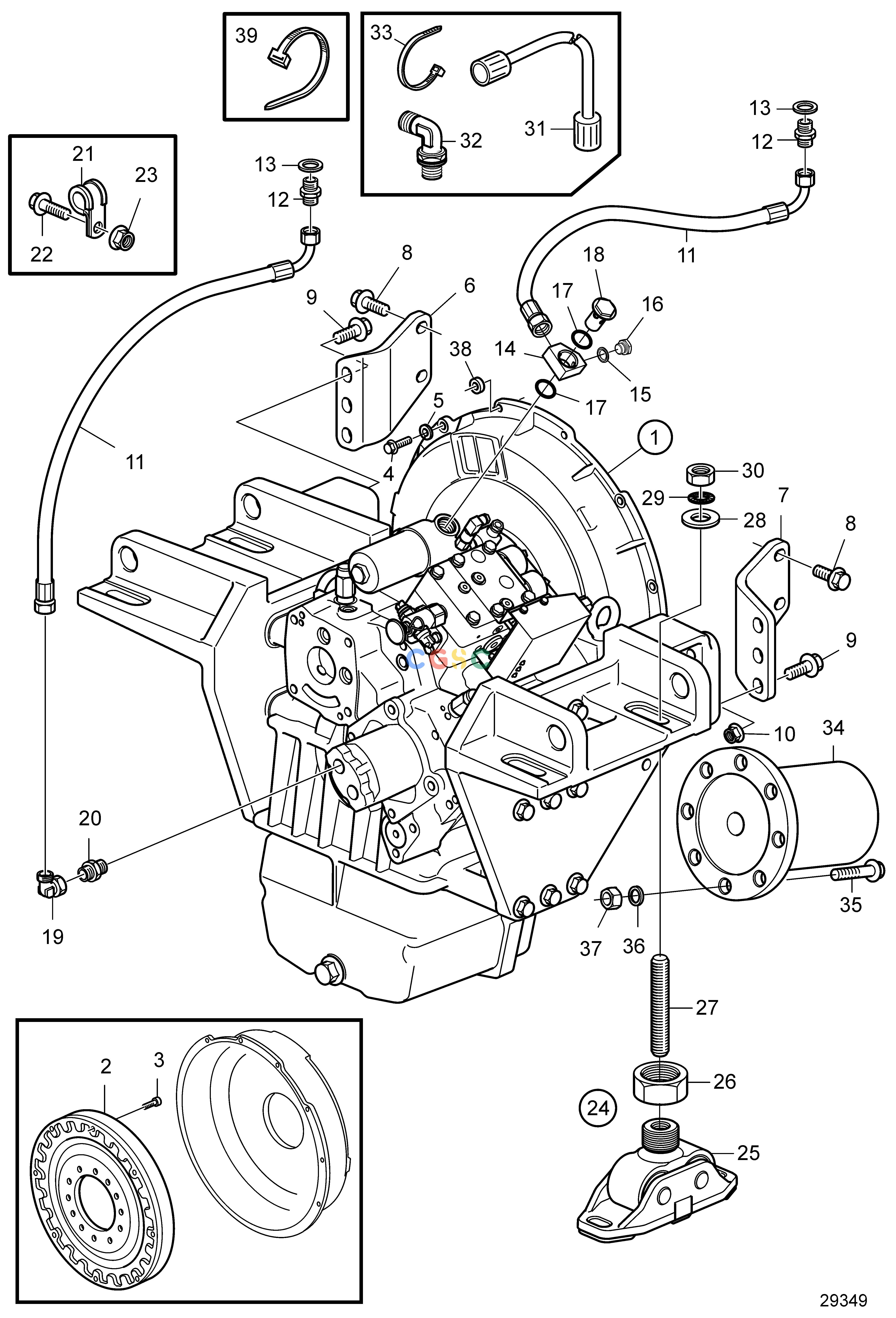

沃尔沃零件查询D13C1-A MP; D13C2-A MP; D13C3-A MP; D13C4-A MP; D13C6-A MPTransmissionsConnecting Components Reverse Gear MGX-5114IVEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
335 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
|
|
|
|
| 3. |
959263
|
[8] |
Hex. socket screw
|
|
| 4. |
984755
|
[10] |
Flange screw
|
|
| 5. |
994894
|
[10] |
Spring washer
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
984833
|
[8] |
Flange screw
|
|
| 9. |
984836
|
[6] |
Flange screw
|
|
| 10. |
990944
|
[6] |
Flange nut
|
|
| 11. |
21386719
|
[2] |
Oil hose
|
|
| 12. |
943986
|
[3] |
Nipple
|
|
| 13. |
976932
|
[3] |
Gasket
|
|
| 14. |
21689724
|
[1] |
Connecting block
|
|
| 15. |
914390
|
[1] |
Plug
|
|
| 16. |
976928
|
[1] |
Gasket
|
|
| 17. |
925064
|
[2] |
O-ring
|
|
| 18. |
21688839
|
[1] |
Hollow screw
|
|
| 19. |
946369
|
[1] |
Elbow nipple
|
|
| 20. |
860699
|
[2] |
Spacer sleeve
|
|
| 21. |
945081
|
[4] |
Clamp
|
|
| 22. |
984734
|
[2] |
Flange screw
|
|
| 23. |
990940
|
[2] |
Flange nut
|
|
| 24. |
3843493
|
[4] |
Rubber cushion kit
|
|
| 25. |
|
|
|
|
| 26. |
3840980
|
[1] |
Nut
|
|
| 27. |
3817323
|
[1] |
Adjusting screw
|
|
| 28. |
991994
|
[1] |
Washer
|
|
| 29. |
990697
|
[1] |
Lock washer
|
|
| 30. |
955786
|
[1] |
Hexagon nut
|
|
| 31. |
3837463
|
[1] |
Hose
|
|
| 32. |
11090362
|
[1] |
Elbow nipple
|
|
| 33. |
948211
|
[1] |
Cable tie
|
|
| 34. |
844765
|
[1] |
Clutch flange
|
|
| 35. |
955764
|
[8] |
Hexagon screw
|
|
| 36. |
60112797
|
[8] |
Spring washer
|
|
| 37. |
950380
|
[8] |
Lock nut
|
|
| 38. |
860699
|
[2] |
Spacer sleeve
|
|
| 39. |
1075407
|
[1] |
Cable tie
|
|
