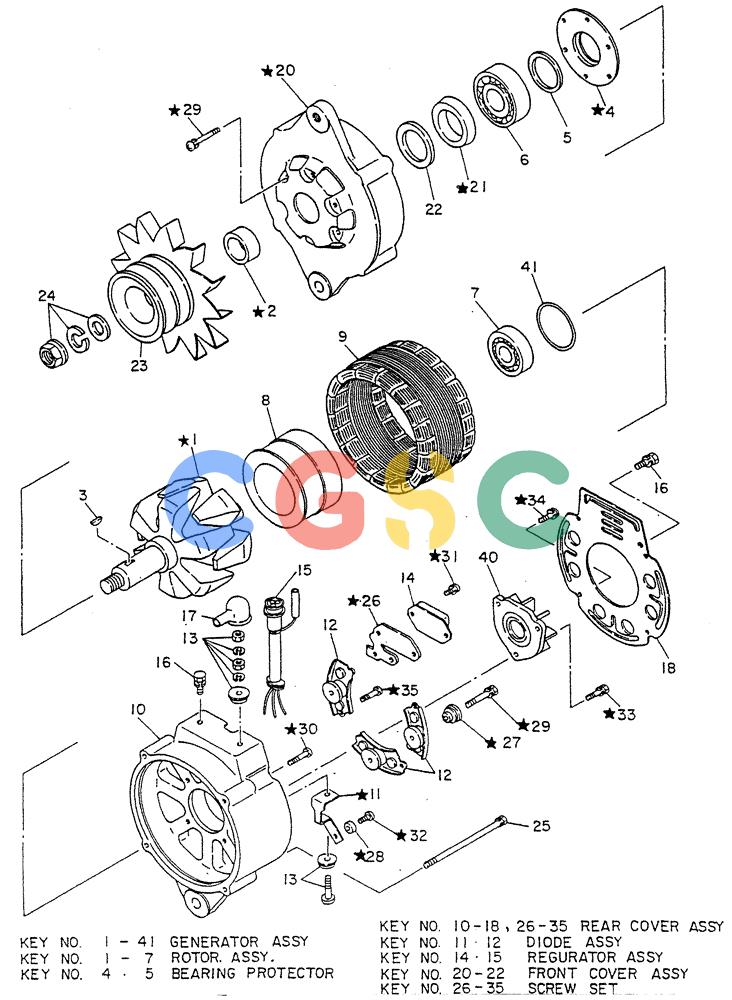

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-41. | VG23100Z5517 | [1] | GENERATOR | KOBGENERATOR |
| 1-7. | VG2310899119 | [1] | ROTOR | KOBROTOR ASSY |
| 3. | VG2319590000 | [1] | KEY KEY | KEY KEY |
| 4-5. | VG2311799006 | [1] | RETAINER PROTECTOR ASSY-BEARING | RETAINER PROTECTOR ASSY-BEARING |
| 5. | VG2311699004 | [1] | PACKING | KOBPACKING |
| 6. | VG2312099104 | [1] | BALL BEARING | KOBBEARING-BALL |
| 7. | VG2312099105 | [1] | BALL BEARING | KOBBEARING-BALL |
| 8. | VG2311199000 | [1] | FIELD ATTACHMENT | KOBCOIL ASSY-FIELD |
| 9. | VG2310299111 | [1] | STATOR | KOBSTATOR-COIL |
| 10-18. | VG23127Z910S | [1] | COVER ASSY-REAR (1NC.REF NO. 26-35) | |
| 10. | VG23126Z9019 | [1] | COVER-REAR | |
| 11-12. | VG23136Z9004 | [1] | DIODE | KOBDIODE ASSY |
| 12. | VG2311299000 | [3] | SUB-DIODE SUB DIODE | SUB-DIODE SUB DIODE |
| 13. | VG2314699016 | [1] | BOLT ASSY-TEAMINAL | |
| 14-15. | VG2350099007 | [1] | REGULATOR | KOBREGULATOR ASSY |
| 14. | VG2350099006 | [1] | REGULATOR-IC | |
| 15. | VG2316599119 | [1] | WIRE | KOBWIRE ASSY-LEAD |
| 16. | VG2314790007 | [2] | BOLT TEAMINAL BOLT E | BOLT TEAMINAL BOLT E |
| 17. | VG2314899000 | [1] | COVER COVER-TEAMINAL | COVER COVER-TEAMINAL |
| 18. | VG2310799006 | [1] | COVER | |
| 20-22. | VG2311999111 | [1] | COVER ASSY-FRONT | |
| 22. | VG2312199001 | [1] | PACKING | KOBPACKING |
| 23. | VG23151Z9106 | [1] | PULLEY | KOBPULLEY |
| 24. | VG2318199001 | [1] | NUT-PULLEY | |
| 25. | VG2313199019 | [4] | BOLT-THROUH | |
| 26-35. | VG2313199016 | [1] | SCREW SET | |
| 40. | VG2317499001 | [1] | CAP-GREASE | |
| 41. | VG2313999002 | [1] | O-RING | KOBO-RING |
