纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (04-27) - THROTTLE, ELECTRIC New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
250 次

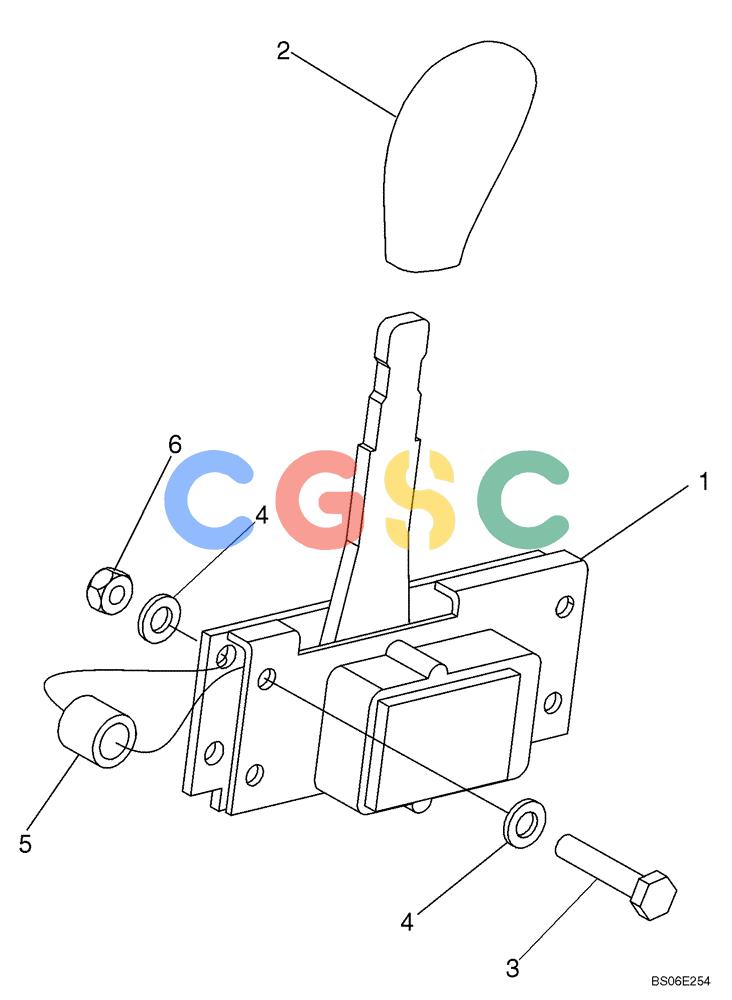

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87270767 | [1] | THROTTLE | BURElectric Throttle, Mounts on Left-Hand Console; See Figure 06-10 for Forward/Reverse Control |
| 2. | 116756A1 | [1] | BUTTON | CASKnob, Throttle Handle |
| 3. | 86508566 | [4] | BOLT,Hex, M5 x 30mm, Cl 8.8 | WIN |
| 4. | 895-11005 | [8] | WASHER,M5 x 10 x 1 | CAS Superseded by part number: 86625261 |
| 5. | 23323H | [4] | SPACER,1/4" Pipe x 1/2" | IH |
| 6. | 832-10405 | [4] | NUT,M5 x .8, Cl 8 | CAS Superseded by part number: 86639241 |
