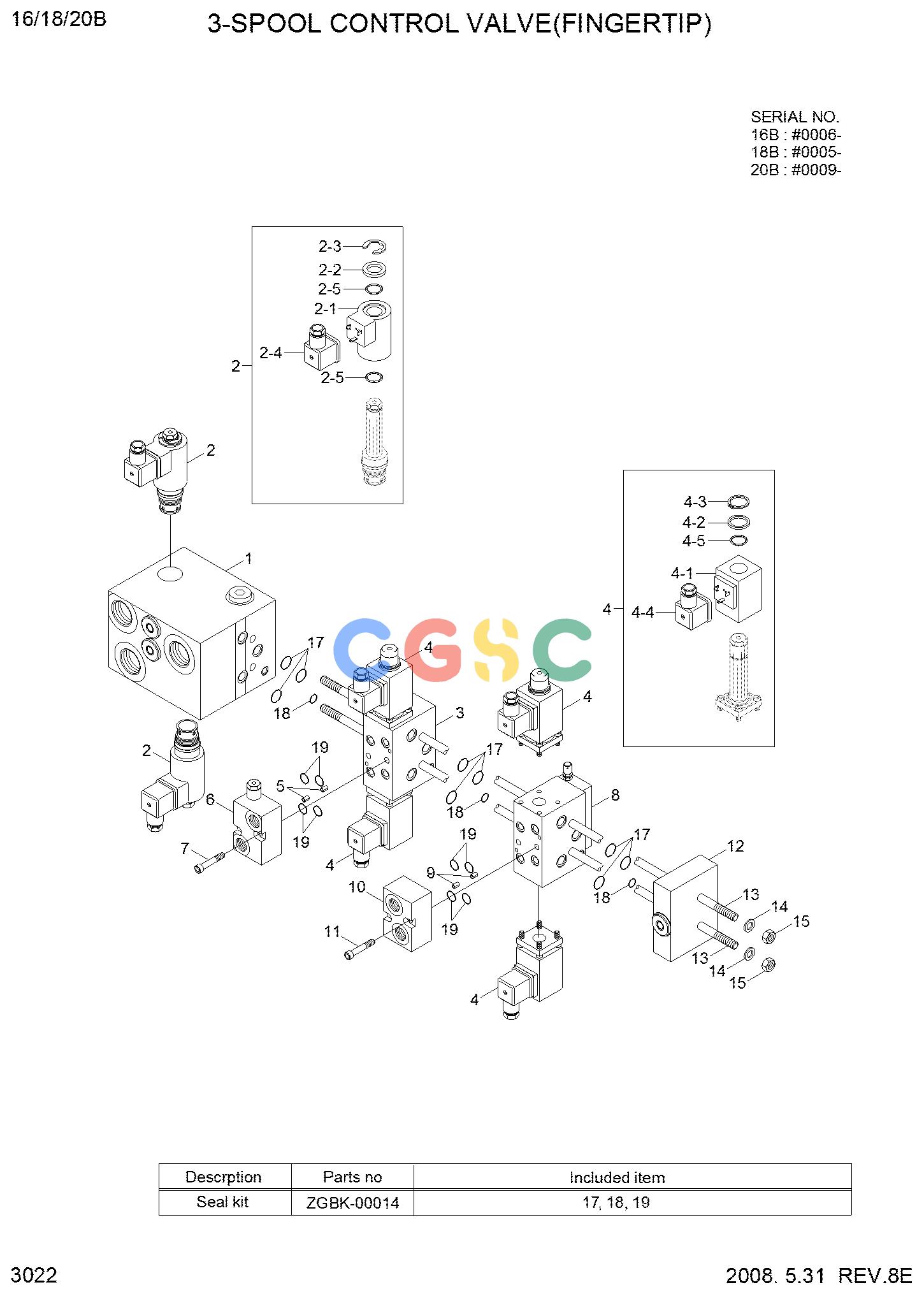

现代零件查询15/18/20BT-7 3-SPOOL CONTROL VALVE(FINGERTIP)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
415 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
32FY-02500
|
[1] |
MCV-3SPOOL
|
|
| . |
32FY-02500
|
[1] |
MCV-3SPOOL
|
|
| . |
32FY-02500
|
[1] |
MCV-3SPOOL
|
|
| 1. |
ZGBK-00001
|
[1] |
BLOCK-MAIN
|
|
| 2. |
ZGBK-00002
|
[2] |
SOLENOID VALVE
|
|
| 2-1. |
ZGBK-00015
|
[1] |
COIL-EVI
|
|
| 2-2. |
ZGBK-00016
|
[1] |
WASHER
|
|
| 2-3. |
ZGBK-00017
|
[1] |
LOCK WASHER
|
|
| 2-4. |
ZGBK-00018
|
[1] |
PLUG-BLACK
|
|
| 2-5. |
ZGBK-00019
|
[2] |
O-RING
|
|
| 3. |
ZGBK-00003
|
[1] |
BLOCK-TILT
|
|
| 4. |
ZGBK-00004
|
[4] |
SOLENOID VALVE
|
|
| 4-1. |
ZGBK-00020
|
[1] |
COIL
|
|
| 4-2. |
ZGBK-00021
|
[1] |
DISC
|
|
| 4-3. |
ZGBK-00022
|
[1] |
CIRCLIP
|
|
| 4-4. |
ZGBK-00018
|
[1] |
PLUG-BLACK
|
|
| 4-5. |
ZGBK-00024
|
[1] |
O-RING
|
|
| 5. |
ZGBK-00005
|
[2] |
PIN-ROLL
|
|
| 6. |
ZGBK-00006
|
[1] |
ADAPTER
|
|
| 7. |
ZGBK-00007
|
[2] |
SCREW-HEAD
|
|
| 8. |
ZGBK-00008
|
[1] |
BLOCK-AUX
|
|
| 9. |
ZGBK-00005
|
[2] |
PIN-ROLL
|
|
| 10. |
ZGBK-00009
|
[1] |
ADAPTER
|
|
| 11. |
ZGBK-00007
|
[2] |
SCREW-HEAD
|
|
| 12. |
ZGBK-00010
|
[1] |
BLOCK-END
|
|
| 13. |
ZGBK-00011
|
[2] |
TENSION ROD
|
|
| 14. |
ZGBK-00012
|
[2] |
WASHER-SHAPE
|
|
| 15. |
ZGBK-00013
|
[2] |
NUT-HEX
|
|
| K17. |
ZGBK-00025
|
[12] |
O-RING
|
|
| K18. |
ZGBK-00026
|
[4] |
O-RING
|
|
| K19. |
ZGBK-00027
|
[12] |
O-RING
|
|
| K. |
ZGBK-00014
|
[1] |
SEAL KIT
|
|
