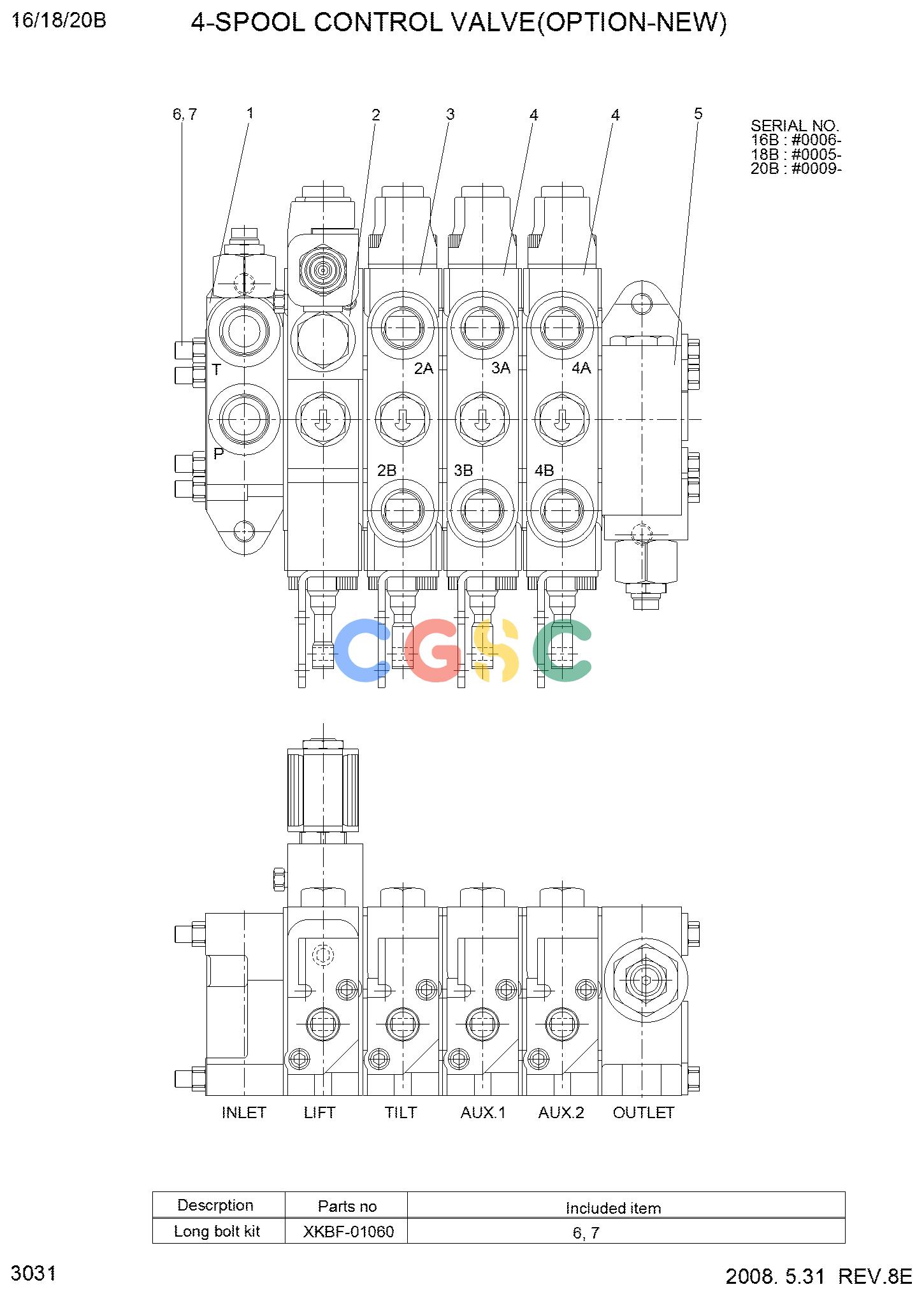

现代零件查询15/18/20BT-7 4-SPOOL CONTROL VALVE(OPTION-NEW)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
717 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
33FH-02500
|
[1] |
MCV-4SP(MAST OPSS)
|
|
| . |
33FH-02500
|
[1] |
MCV-4SP(MAST OPSS)
|
|
| . |
33FH-02500
|
[1] |
MCV-4SP(MAST OPSS)
|
|
| . |
33FH-02300
|
[1] |
MCV-4SP(W/O OPSS)
|
|
| . |
33FH-02300
|
[1] |
MCV-4SP(W/O OPSS)
|
|
| . |
33FH-02300
|
[1] |
MCV-4SP(W/O OPSS)
|
|
| 1. |
@
|
[1] |
SECTION-INLET
|
|
| 2. |
@
|
[1] |
SECTION-LIFT
|
|
| 3. |
@
|
[1] |
SECTION-TILT
|
|
| 4. |
@
|
[2] |
BLOCK ASSY-AUX
|
|
| 5. |
@
|
[1] |
SECTION-OUTLET
|
|
| K6. |
XKBF-01059
|
[4] |
LONG BOLT
|
|
| K7. |
XKBF-00566
|
[4] |
NUT
|
|
| K. |
XKBF-01060
|
[1] |
LONG BOLT KIT
|
|
