神钢零件查询(FD6(T)14) - NISSAN DIESEL ENGINE ASN 050001 - LK400 & LK500A (1/06-12/06) (07-004) - MOTOR STARTING (INNER PARTS) HITACHI MAKE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
545 次

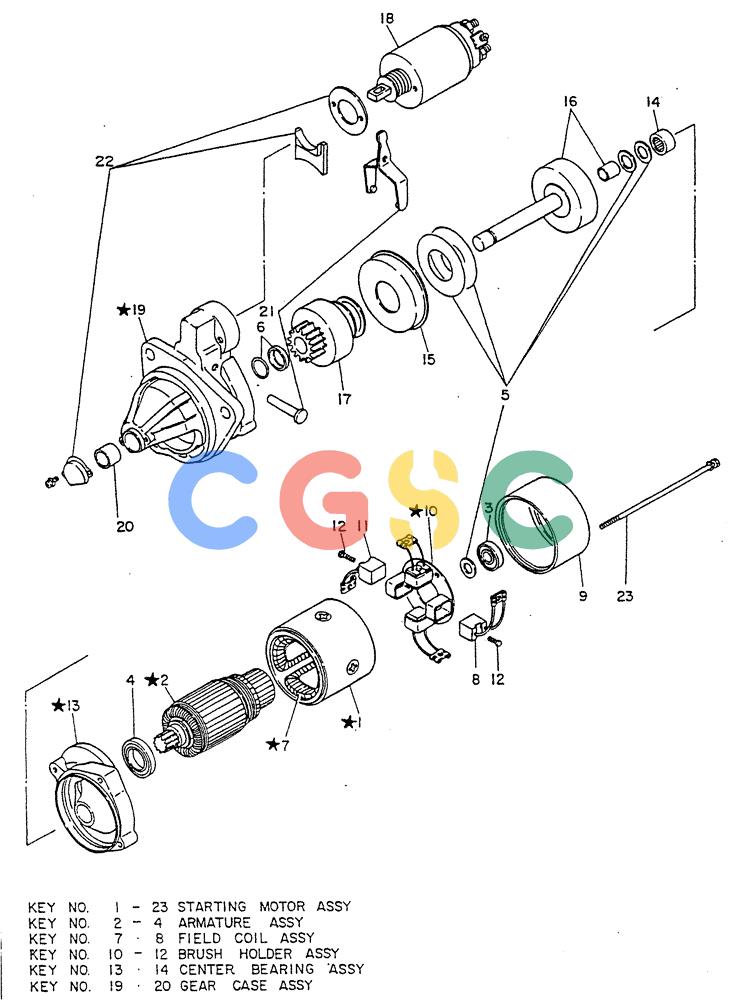

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-23. | VG23300Z5505 | [1] | ENGINE | KOBMOTOR-STARTING "HITACHI MAKE" |
| 2-4. | VG23310Z9001 | [1] | ARMATURE | KOBARMATURE ASSY |
| 3. | VG23383Z9002 | [1] | BEARING BALL BEARING-BALL | BEARING BALL BEARING-BALL |
| 4. | VG2338329003 | [1] | BEARING-BALL | |
| 5. | VG23320Z9002 | [1] | WASHER KIT WASHER KIT THRUST | WASHER KIT WASHER KIT THRUST |
| 6. | VG23369Z9001 | [1] | STOP | KOBSTOPPER SET-PINION Superseded by part number: 76605816 |
| 7-8. | VG23306Z9002 | [1] | COIL | KOBCOIL ASSY-FIELD Superseded by part number: 76605810 |
| 8. | VG23331Z9002 | [2] | BRUSH | KOBBRUSH (+) Superseded by part number: 76605811 |
| 9. | VG23337Z9006 | [1] | COVER | KOBCUVER-REAR |
| 10-12. | VG23330Z9001 | [1] | HOLDER, INJECTOR NOZ | KOBHULDER ASSY-BRUSH Superseded by part number: 76605818 |
| 11. | VG23331Z9003 | [2] | BRUSH BRUSH (-) | BRUSH BRUSH (-) |
| 12. | VG23333Z9001 | [4] | SPRING | KOBSPRING-BRUSH Superseded by part number: 76605819 |
| 13-14. | VG23383Z9001 | [1] | U-BRACKET | KOBBEARING ASSY-CENTER |
| 14. | VG23349Z9000 | [1] | NEEDLE BEARING SEARING-NEEDLE | NEEDLE BEARING SEARING-NEEDLE |
| 15. | VG23350Z9000 | [1] | PLATE | KOBPLATE-CENTER |
| l6. | VG23312Z9003 | [1] | GEAR | KOBSHAFT ASSY-GEAR |
| 17. | VG23314Z9002 | [1] | PINION | KOBPINION ASSY Superseded by part number: 76605824 |
| 18. | VG23343Z9008 | [1] | SWITCH ASSY SWITCH ASSY | SWITCH ASSY SWITCH ASSY |
| 19-20. | VG23318Z9002 | [1] | CASE | KOBCASE ASSY-GEAR |
| 20. | VG23319Z9000 | [1] | SET OF STD MAIN BRGS | KOBMETAL Superseded by part number: 76605828 |
| 21. | VG2332261502 | [1] | LEVER | KOBLEVER SET-SHIFT Superseded by part number: 76605830 |
| 22. | VG23445Z9003 | [1] | COVER | KOBCOVER SET-OUST |
| 23. | VG23340Z9003 | [2] | BOLT BOLT-THROUGH | BOLT BOLT-THROUGH |
