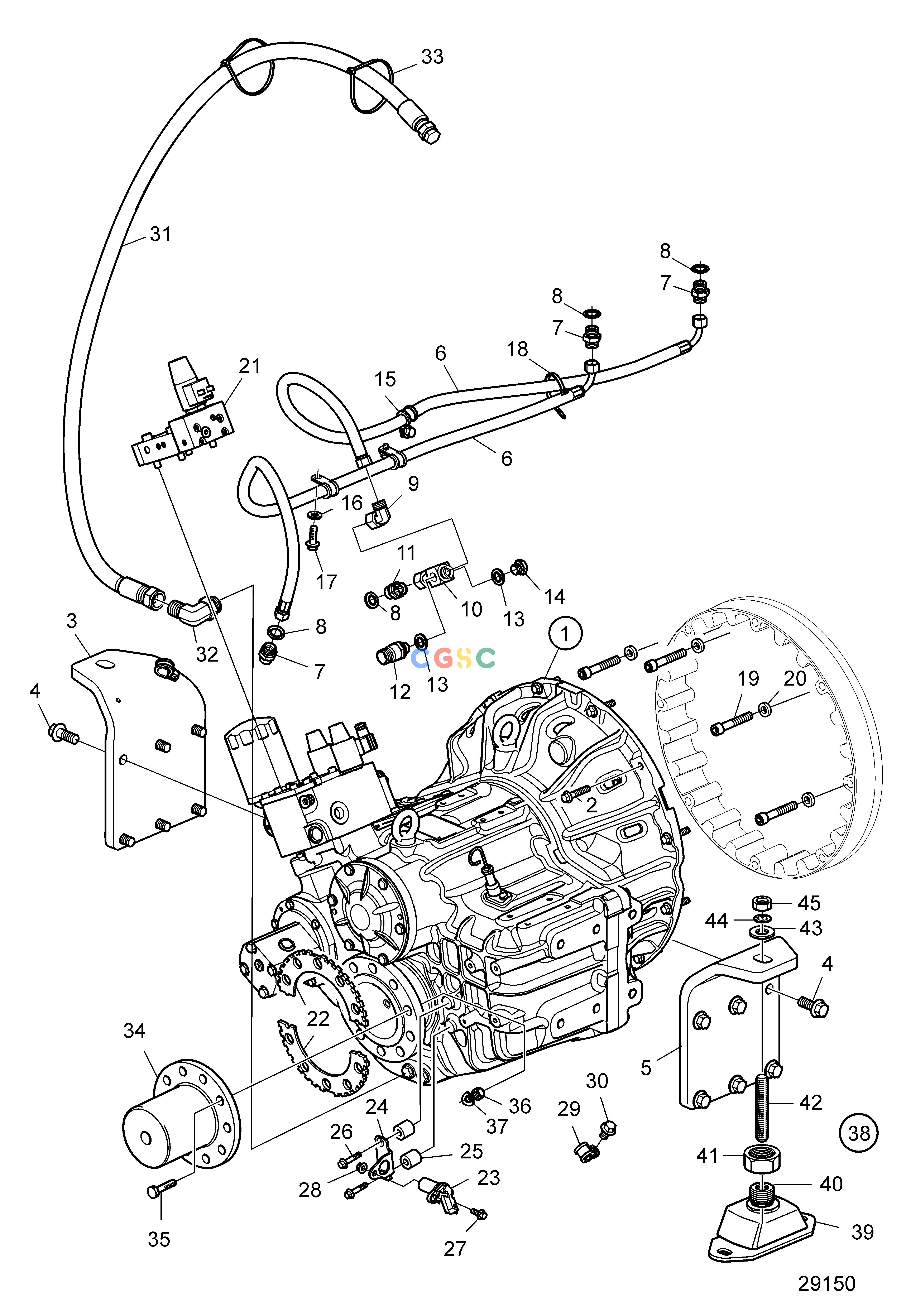

沃尔沃零件查询D13C1-A MP; D13C2-A MP; D13C3-A MP; D13C4-A MP; D13C6-A MPTransmissionsConnecting Components Reverse Gear ZF500-1AEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
245 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Ratio 2.192:1
|
| 2. |
984756
|
[12] |
Flange screw
|
|
| 3. |
22827359
|
[1] |
Engine anchorage
|
|
| 4. |
984834
|
[12] |
Flange screw
|
|
| 5. |
22877681
|
[1] |
Engine anchorage
|
|
| 6. |
21108002
|
[2] |
Oil hose
|
|
| 7. |
943986
|
[3] |
Nipple
|
|
| 8. |
976932
|
[4] |
Gasket
|
|
| 9. |
984804
|
[1] |
Elbow nipple
|
|
| 10. |
21430896
|
[1] |
Connecting block
|
|
| 11. |
990883
|
[1] |
Nipple
|
|
| 12. |
874313
|
[1] |
Sensor
|
|
| 13. |
20883435
|
[1] |
Sealing ring
|
|
| 14. |
960632
|
[1] |
Plug
|
|
| 15. |
945081
|
[3] |
Clamp
|
|
| 16. |
994868
|
[3] |
Washer
|
|
| 17. |
984732
|
[3] |
Flange screw
|
|
| 18. |
1075407
|
[1] |
Cable tie
|
|
| 19. |
959263
|
[8] |
Hex. socket screw
|
For flexible coupling
|
| 20. |
6792860
|
[8] |
Spacer sleeve
|
For flexible coupling
|
| 21. |
3837092
|
[1] |
Slip valve, low speed
|
|
| 22. |
3841413
|
[2] |
Sprocket wheel
|
|
| 23. |
21426987
|
[1] |
Speed monitor, low speed
|
|
| 24. |
21320296
|
[1] |
Bracket
|
|
| 25. |
826652
|
[2] |
Spacer sleeve
|
|
| 26. |
984728
|
[2] |
Flange screw
|
|
| 27. |
984725
|
[1] |
Flange screw
|
|
| 28. |
990949
|
[1] |
Flange lock nut
|
|
| 29. |
984751
|
[1] |
Flange screw
|
|
| 30. |
949746
|
[1] |
Clamp
|
|
| 31. |
3837463
|
[1] |
Hose
|
|
| 32. |
11090362
|
[1] |
Elbow nipple
|
|
| 33. |
948211
|
[2] |
Cable tie
|
|
| 34. |
864087
|
[1] |
Clutch flange
|
|
| 35. |
980253
|
[10] |
Hexagon screw
|
|
| 36. |
943674
|
[10] |
Lock nut
|
|
| 37. |
941913
|
[10] |
Spring washer
|
|
| 38. |
21593939
|
[2] |
Rubber cushion kit
|
|
| 39. |
21586050
|
[1] |
Rubber cushion
|
|
| 40. |
3839411
|
[1] |
Sleeve
|
|
| 41. |
3839409
|
[1] |
Hexagon nut
|
|
| 42. |
3839410
|
[1] |
Adjusting screw
|
|
| 43. |
60113332
|
[1] |
Washer
|
|
| 44. |
847766
|
[1] |
Lock washer
|
|
| 45. |
990973
|
[1] |
Hexagon nut
|
|
