神钢零件查询(FD6(T)14) - NISSAN DIESEL ENGINE ASN 050001 - LK400 & LK500A (1/06-12/06) (02-002[01]) - PULLEY CRANK Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
143 次

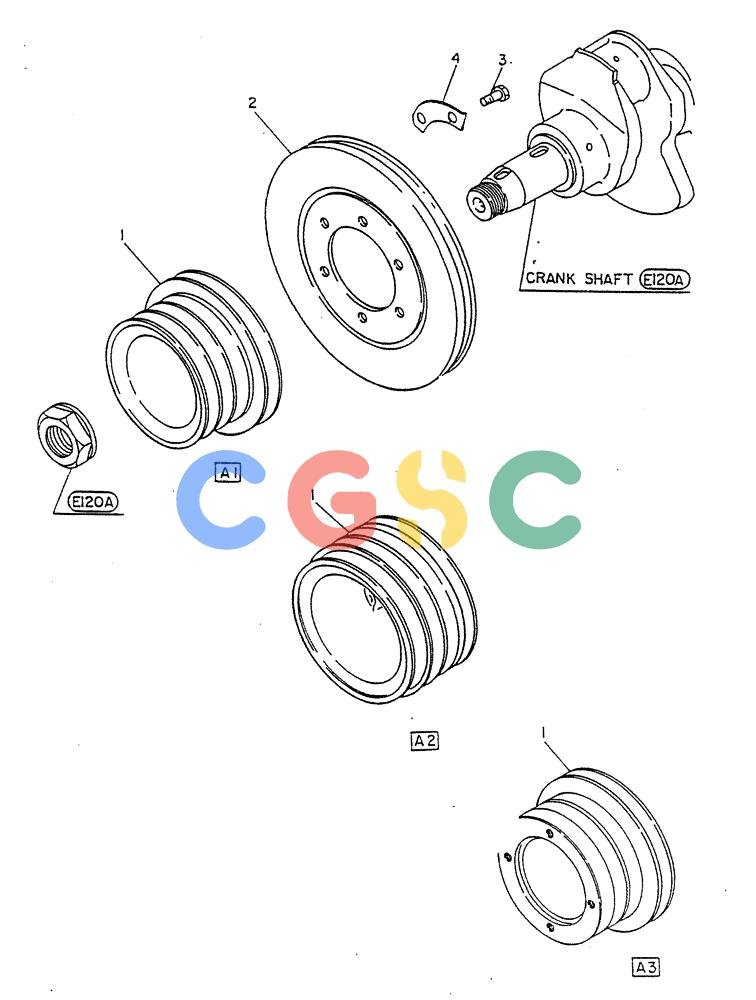

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VG12304Z5575 | [1] | PULLEY | KOBPULLEY-CRANK,FOR A1 ONLY |
| 1. | VG12304Z5576 | [1] | PULLEY-CRANK,FOR A2 ONLY | |
| 1. | VG12304Z5577 | [1] | PULLEY-CRANK,FOR A3 ONLY | |
| 1. | VG12304L9200 | [1] | PULLEY-CRANK,FOR A4 ONLY | |
| 2. | VG12306Z5503 | [1] | DAMPER | KOBDAMPER,FOR A1,A2,A3 ONLY |
| 2. | VG12306L9200 | [1] | DAMPER,FOR A4 ONLY | |
| 3. | VG0810102010 | [6] | BOLT BOLT | BOLT BOLT |
| 4. | VG1229696001 | [3] | LOCK WASHER | KOBWASHER-LOCK |
| 5. | VG0152205104 | [1] | PIN-STRAIGHT,FOR A4 ONLY | |
