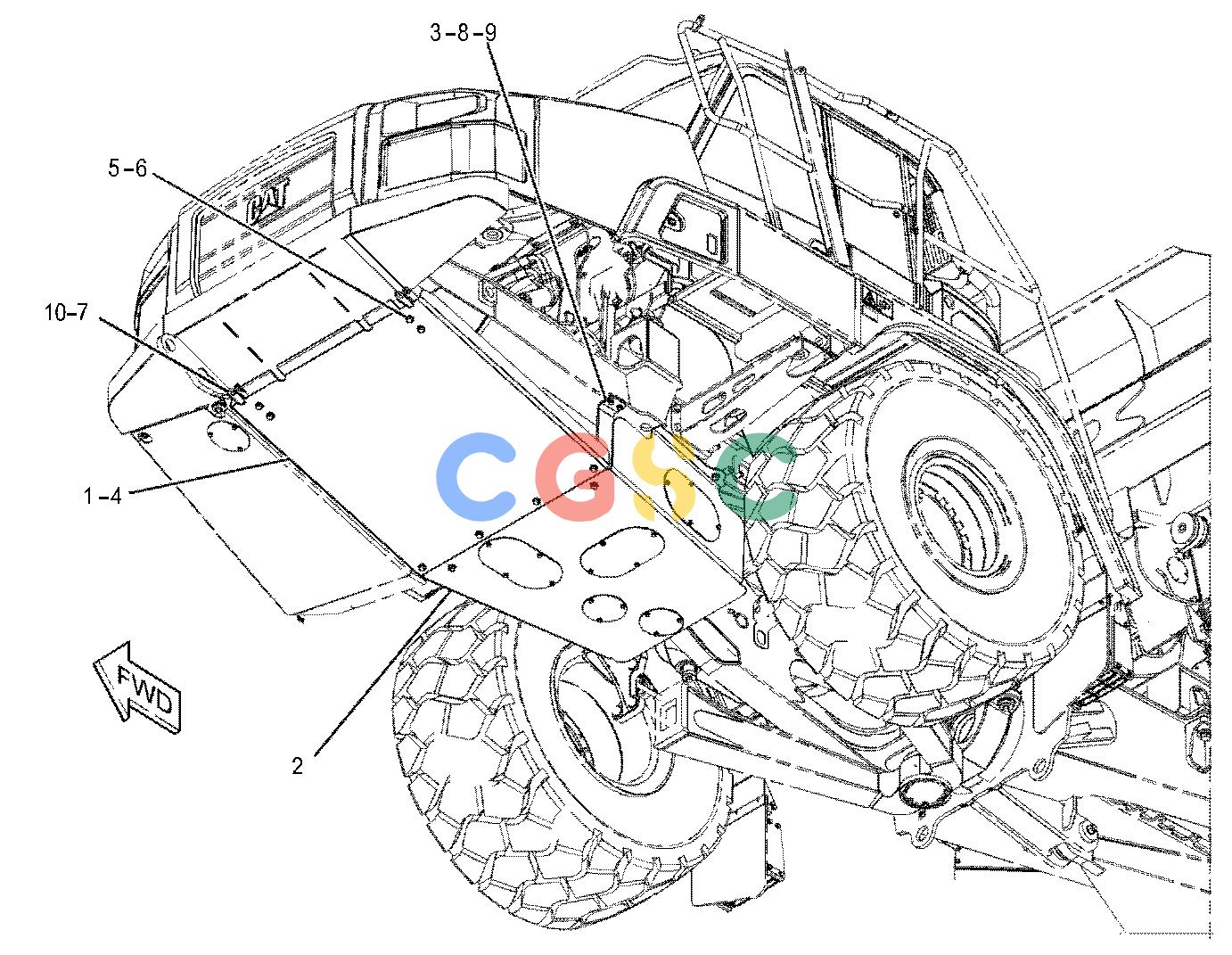

卡特零件查询（725C） 380-7598: GUARD GP-BOTTOM
广数供应链运营团队, 14 02月, 2025，浏览：
916 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5N-1621 | [1] | COVER | |
| 2. | 114-4426 | [2] | MOUNT | |
| 3. | 384-3164 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 4. | 389-2520 | [1] | BRACKET AS | |
| 5. | 459-3939 | [1] | PLATE AS | |
| | 8T-3490M | [7] | NUT-WELD(M10X1.5-THD) | |
| 6. | 446-1876 | [1] | PLATE AS | |
| 7. | 109-6492 | [2] | WASHER(12.2X62X3.5-MM THK) | |
| 8. | 198-4778 | [4] | WASHER-HARD(13.5X30X12-MM THK) | |
| 9. | 5P-1076 | [3] | WASHER-HARD(13.5X30X4-MM THK) | |
| 10. | 7G-8839 | [2] | SPACER(13.5X57X6-MM THK) | |
| 11. | 7X-7729 | [8] | WASHER(11X25X3-MM THK) | |
| 12. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 13. | 8T-4136M | [3] | BOLT(M10X1.5X25-MM) | |
| 14. | 8T-4139M | [3] | BOLT(M12X1.75X30-MM) | |
| 15. | 8T-4176M | [2] | BOLT(M12X1.75X90-MM) | |
| 16. | 8T-4184M | [3] | BOLT(M12X1.75X45-MM) | |
| 17. | 8T-4195M | [8] | BOLT(M10X1.5X30-MM) | |
| 18. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 19. | 459-3897 | [1] | BRACKET AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | M | | METRIC PART |
