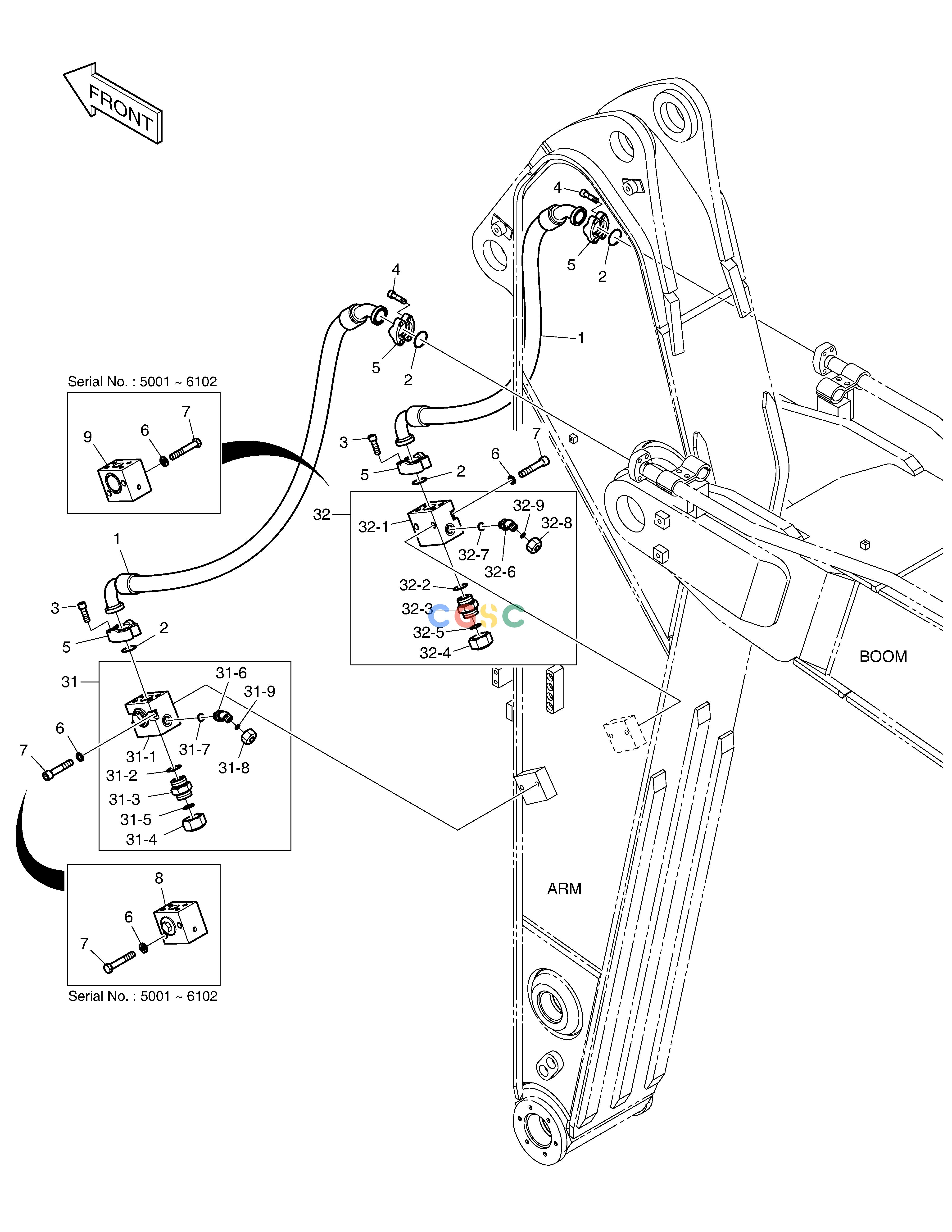

斗山零件查询ARM PIPING - ONE & TWO WAY(ARM 2.6m) DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
514 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1014409
|
[-] |
ARM PIPING-ONE & TWO WAY
|
|
| -. |
420212-01940
|
[-] |
|
|
| 1. |
DS2040495
|
[2] |
HOSE
|
|
| 2. |
2180-1026D23
|
[4] |
O-RING
|
|
| 3. |
S2218566
|
[8] |
BOLT;SOCKET
|
|
| 31. |
410137-00050
|
[1] |
|
|
| 31-1. |
410137-00041
|
[1] |
|
|
| 31-2. |
S8000381
|
[1] |
O-RING
|
|
| 31-3. |
2181-4133D35
|
[1] |
ADAPTER
|
|
| 31-4. |
2181-2817D3
|
[1] |
CAP
|
|
| 31-5. |
2180-1026D37
|
[1] |
O-RING
|
|
| 31-6. |
2181-2816D4
|
[1] |
ELBOW
|
|
| 31-7. |
S8000181
|
[1] |
O-RING
|
|
| 31-8. |
2181-2817D4
|
[1] |
CAP
|
|
| 31-9. |
S8030081
|
[1] |
O-RING
|
|
| 32. |
410137-00051
|
[1] |
|
|
| 32-1. |
410137-00043
|
[1] |
|
|
| 32-2. |
S8000381
|
[1] |
O-RING
|
|
| 32-3. |
2181-4133D35
|
[1] |
ADAPTER
|
|
| 32-4. |
2181-2817D3
|
[1] |
CAP
|
|
| 32-5. |
2180-1026D37
|
[1] |
O-RING
|
|
| 32-6. |
2181-2816D4
|
[1] |
ELBOW
|
|
| 32-7. |
S8000181
|
[1] |
O-RING
|
|
| 32-8. |
2181-2817D4
|
[1] |
CAP
|
|
| 32-9. |
S8030081
|
[1] |
O-RING
|
|
| 4. |
S2218766
|
[8] |
BOLT;SOCKET
|
|
| 5. |
2181-9086
|
[8] |
FLANGE;SPLIT
|
|
| 6. |
S5102903
|
[4] |
WASHER
|
|
| 6. |
S5110903
|
[4] |
WASHER
|
|
| 7. |
S0566266
|
[4] |
BOLT
|
|
| 7. |
S2222366
|
[4] |
|
|
| 8. |
420-00508B
|
[1] |
VALVE;STOP(L.H)
|
|
| 9. |
420-00515B
|
[1] |
VALVE;STOP(R.H)
|
|
