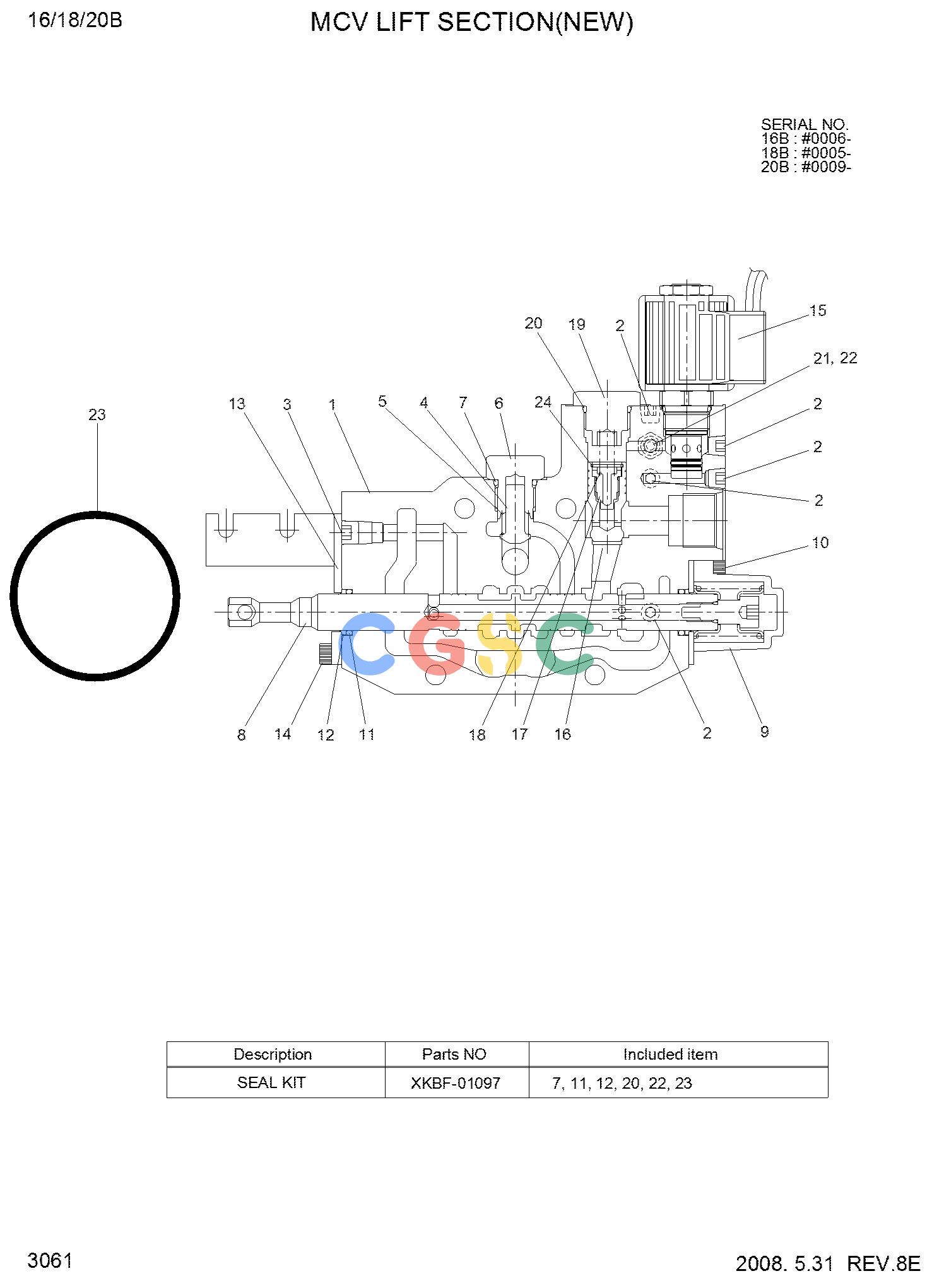

现代零件查询15/18/20BT-7 MCV LIFT SECTION(NEW)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
940 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
XKBF-01160
|
[1] |
BLOCK ASSY-LIFT
|
|
| . |
XKBF-01160
|
[1] |
BLOCK ASSY-LIFT
|
|
| . |
XKBF-01160
|
[1] |
BLOCK ASSY-LIFT
|
|
| N1. |
XKBF-01086
|
[1] |
LIFT BLOCK
|
|
| 2. |
XKBF-00931
|
[5] |
PLUG-SOCKET HEAD
|
|
| 3. |
XKBF-01173
|
[1] |
SET SCREW
|
|
| 4. |
XKBF-00737
|
[1] |
POPPET-CHECK
|
|
| 5. |
XKBF-00736
|
[1] |
SPRING-CHECK
|
|
| N6. |
XKBF-01088
|
[1] |
LOAD CHECK PLUG
|
|
| K7. |
XKBF-01185
|
[1] |
O-RING
|
|
| 8. |
XKBF-01152
|
[1] |
SPOOL ASSY-LIFT
|
|
| 9. |
XKBF-00577
|
[1] |
RETURN CAP
|
|
| 10. |
XKBF-01090
|
[2] |
SOCKET BOLT
|
|
| K11. |
XKBF-01182
|
[1] |
O-RING
|
|
| K12. |
XKBF-00573
|
[1] |
WIPER SEAL
|
|
| 13. |
XKBF-00569
|
[1] |
BRACKET
|
|
| 14. |
XKBF-01092
|
[2] |
SOCKET BOLT
|
|
| 15. |
XKBF-01194
|
[1] |
SOL V/V ON LIFT BLOCK
|
|
| 16. |
XKBF-01094
|
[1] |
LIFT LOCK POPPET
|
|
| 17. |
XKBF-01171
|
[1] |
ORIFICE-LIFT LOCK
|
|
| 18. |
XKBF-00906
|
[1] |
SPRING
|
|
| N19. |
XKBF-01095
|
[1] |
LIFT LOCK PLUG
|
|
| K20. |
XKBF-01177
|
[1] |
O-RING
|
|
| N21. |
XKBF-01172
|
[1] |
PLUG-EMERGENCY
|
|
| K22. |
XKBF-01041
|
[1] |
O-RING
|
|
| K23. |
XKBF-01176
|
[1] |
O-RING
|
|
| N24. |
XKBF-01096
|
[1] |
HOLDING C-RING
|
|
| K. |
XKBF-01097
|
[1] |
SEAL KIT
|
|
