| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

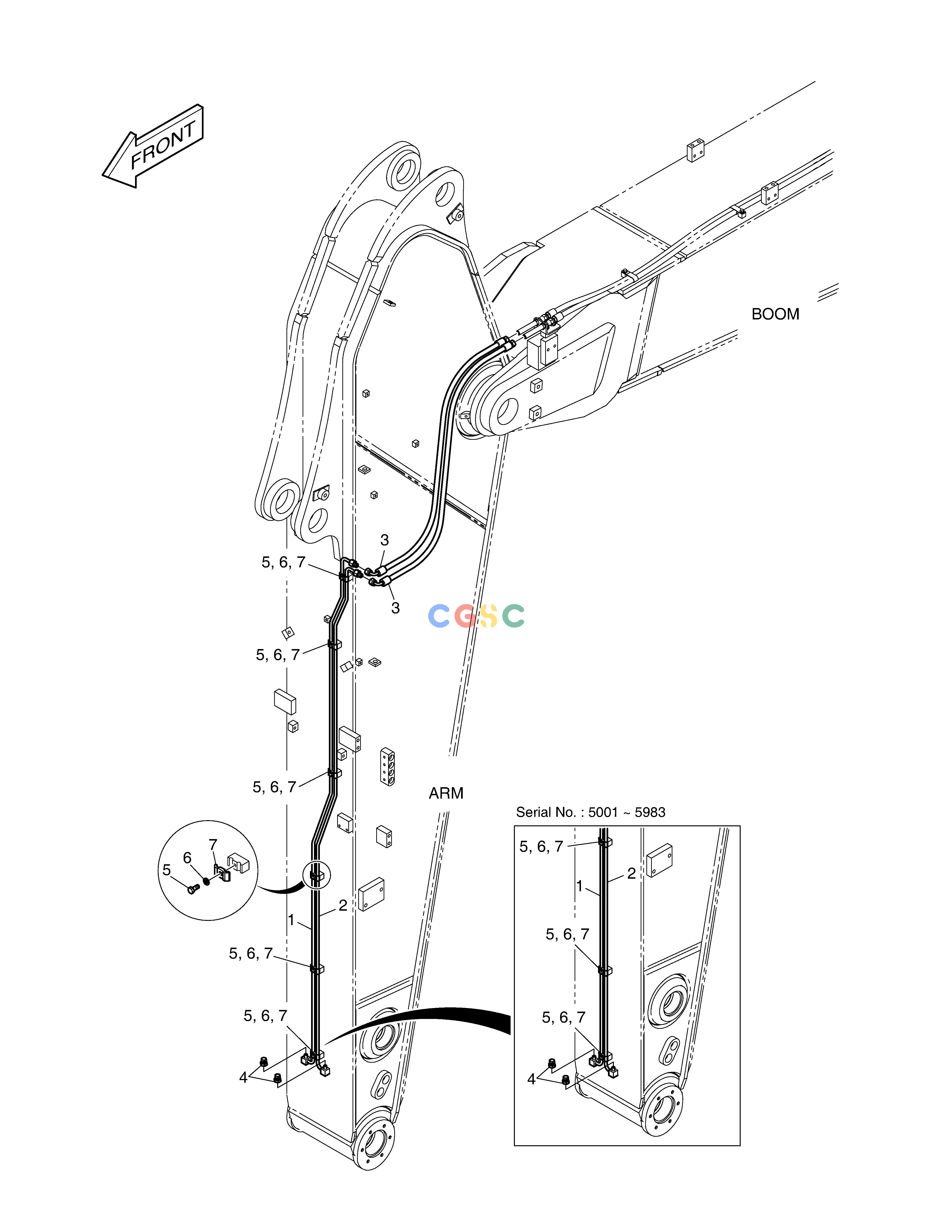

| -. | K1006230A | [-] | ARM PIPING(QUICK CLAMP) | |
| 1. | K1006231 | [1] | PIPE | |
| 1. | K1006231A | [1] | PIPE | |
| 2. | K1006232 | [1] | PIPE | |
| 2. | K1006232A | [1] | PIPE | |
| 3. | DS2055865 | [2] | HOSE | |
| 4. | 2181-2820D1 | [2] | PLUG | |
| 5. | S0508866 | [6] | BOLT | |
| 6. | S5102503 | [6] | . WASHER | |
| 7. | K1004011 | [6] | CLAMP |
