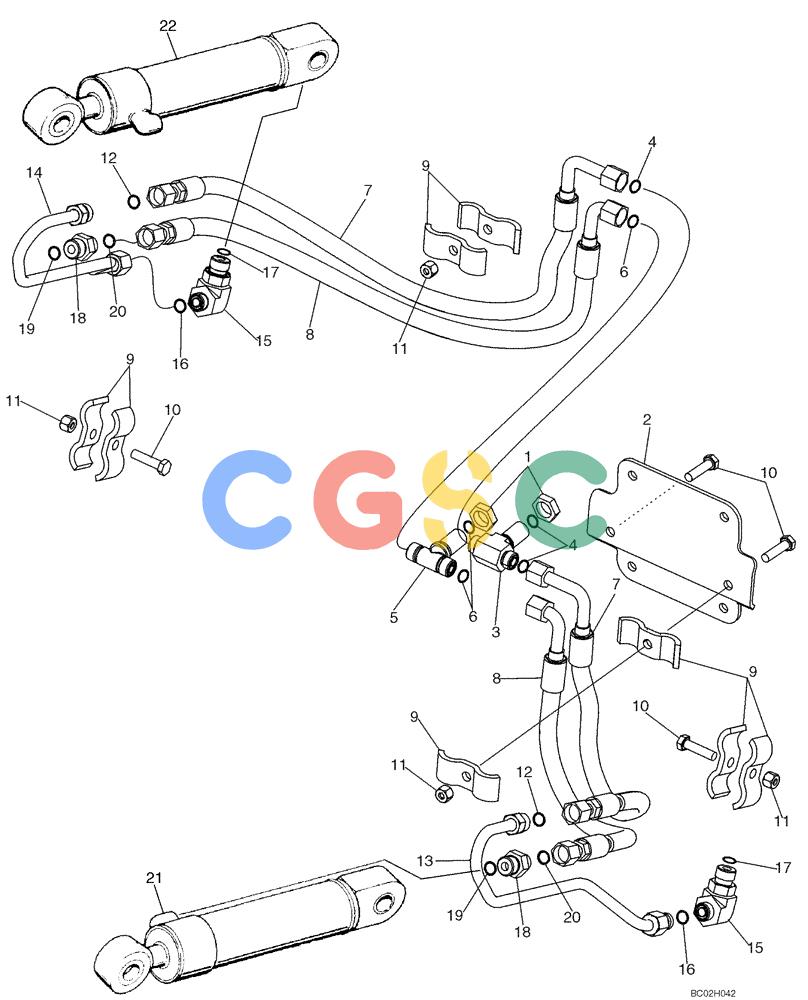

| 1. | 201-903 | [2] | TUBE NUT,Blkhd, 13/16"-16 | CAS |
| 2. | 87436754 | [1] | COVER PLATE | BURUse Existing Hardware |
| 3. | 201-452 | [1] | TEE,13/16"-16, Blkhd Br | BRRIncl. Ref 4; Upper Port Of Control Valve Superseded by part number: 86639082 |
| 4. | 238-6014 | [3] | O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro | CASFace Seal End Superseded by part number: 9992298 |
| 5. | 87408137 | [1] | TEE | BURRestrictor; Incl. Ref 6 |
| 7. | 87405656 | [2] | HOSE ASSY. | BUR794 mm long; Upper; To Closed End Of Cylinder |
| 8. | 87408851 | [2] | HOSE ASSY. | BUR775 mm lg; Lower; To Rod End Of Cylinder |
| 9. | 434130A1 | [8] | HOSE CLAMP | BUR |
| 10. | 614-10040 | [4] | BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd | CAS Superseded by part number: 120112 |
| 11. | 832-10410 | [4] | NUT,M10 x 1.5, Cl 8 | CAS Superseded by part number: 190003888452 |
| 13. | 87405448 | [1] | HYD. TUBE,12.7 mm OD x 257.7, 125.3 mm L | BURRight-Hand Cylinder |
| 14. | 87405449 | [1] | HYD. TUBE,12.7 mm OD x 257.7, 125.3 mm L | BURLeft-Hand Cylinder |
| 15. | 201-326 | [2] | ELBOW,90º, 13/16"-16 x 7/8"-14, Adj, ORFS | CASIncl. Ref 16, 17 Superseded by part number: 85802961 |
| 17. | 237-6010 | [1] | O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro | CASBoss End Superseded by part number: 72186125, 167269 |
| 18. | 201-112 | [2] | HYD CONNECTOR,13/16"-16 ORFS x 7/8"-14 ORB | CASIncludes Ref 19, 20 Superseded by part number: 73338799 |
| 19. | 237-6014 | [1] | O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro | CASBoss End Superseded by part number: 70921886 |
| 21. | 87436768 | [1] | CYLINDER ASSY.,Double Acting, 44.5mm Rod, 213.3mm Stroke | CAS83 ID x 206 mm strk; Right-Hand; Ripper; See Figure 08-14 |
| 21. | 87436768R | [1] | REMAN-HYD CYLINDER | CASD95B TIER 3 (3/08-) |
| 21. | 87436768C | [1] | CORE-HYD CYLINDER | CASReturn Number |
| 22. | 87436767 | [1] | CYLINDER ASSY.,Double Acting, 44.5mm Rod, 213.3mm Stroke | CAS83 ID x 206 mm strk; Left-Hand; Ripper; See Figure 08-14 |
| 22. | 87436767R | [1] | REMAN-HYD CYLINDER | CASD95B TIER 3 (3/08-) |
| 22. | 87436767C | [1] | CORE-HYD CYLINDER | CASReturn Number |
