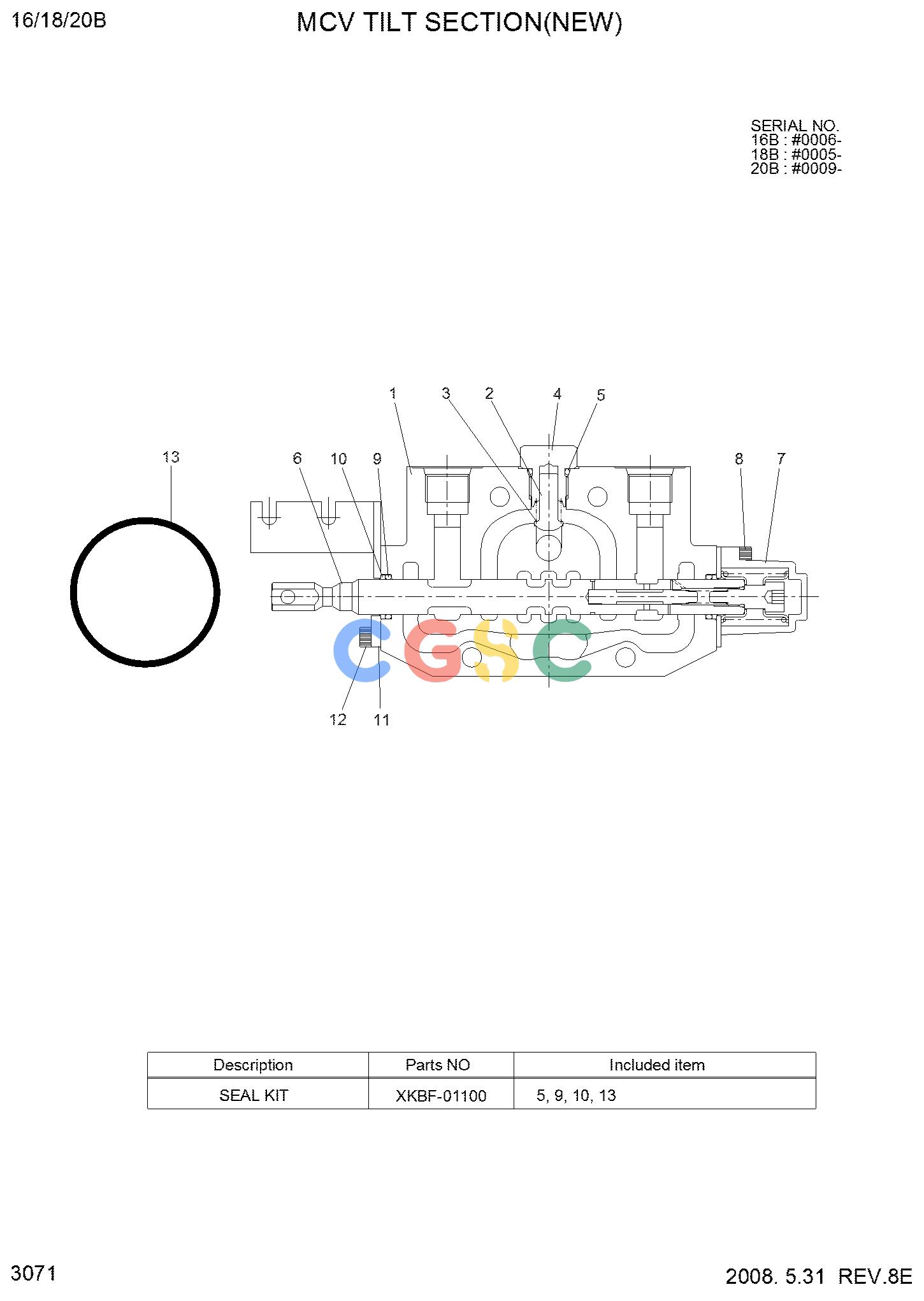

现代零件查询15/18/20BT-7 MCV TILT SECTION(NEW)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
839 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
XKBF-01165
|
[1] |
BLOCK ASSY-TILT
|
|
| . |
XKBF-01165
|
[1] |
BLOCK ASSY-TILT
|
|
| . |
XKBF-01165
|
[1] |
BLOCK ASSY-TILT
|
|
| N1. |
XKBF-01098
|
[1] |
TILT BLOCK
|
|
| 2. |
XKBF-00737
|
[1] |
POPPET-CHECK
|
|
| 3. |
XKBF-00736
|
[1] |
SPRING-CHECK
|
|
| N4. |
XKBF-01088
|
[1] |
LOAD CHECK PLUG
|
|
| K5. |
XKBF-01181
|
[1] |
O-RING
|
|
| 6. |
XKBF-01153
|
[1] |
SPOOL ASSY-TILT
|
|
| 7. |
XKBF-00577
|
[1] |
RETURN CAP
|
|
| 8. |
XKBF-01090
|
[2] |
SOCKET BOLT
|
|
| K9. |
XKBF-01182
|
[1] |
O-RING
|
|
| K10. |
XKBF-00573
|
[1] |
WIPER SEAL
|
|
| 11. |
XKBF-00569
|
[1] |
BRACKET
|
|
| 12. |
XKBF-01092
|
[2] |
SOCKET BOLT
|
|
| K13. |
XKBF-01176
|
[1] |
O-RING
|
|
| K. |
XKBF-01100
|
[1] |
SEAL KIT
|
|
