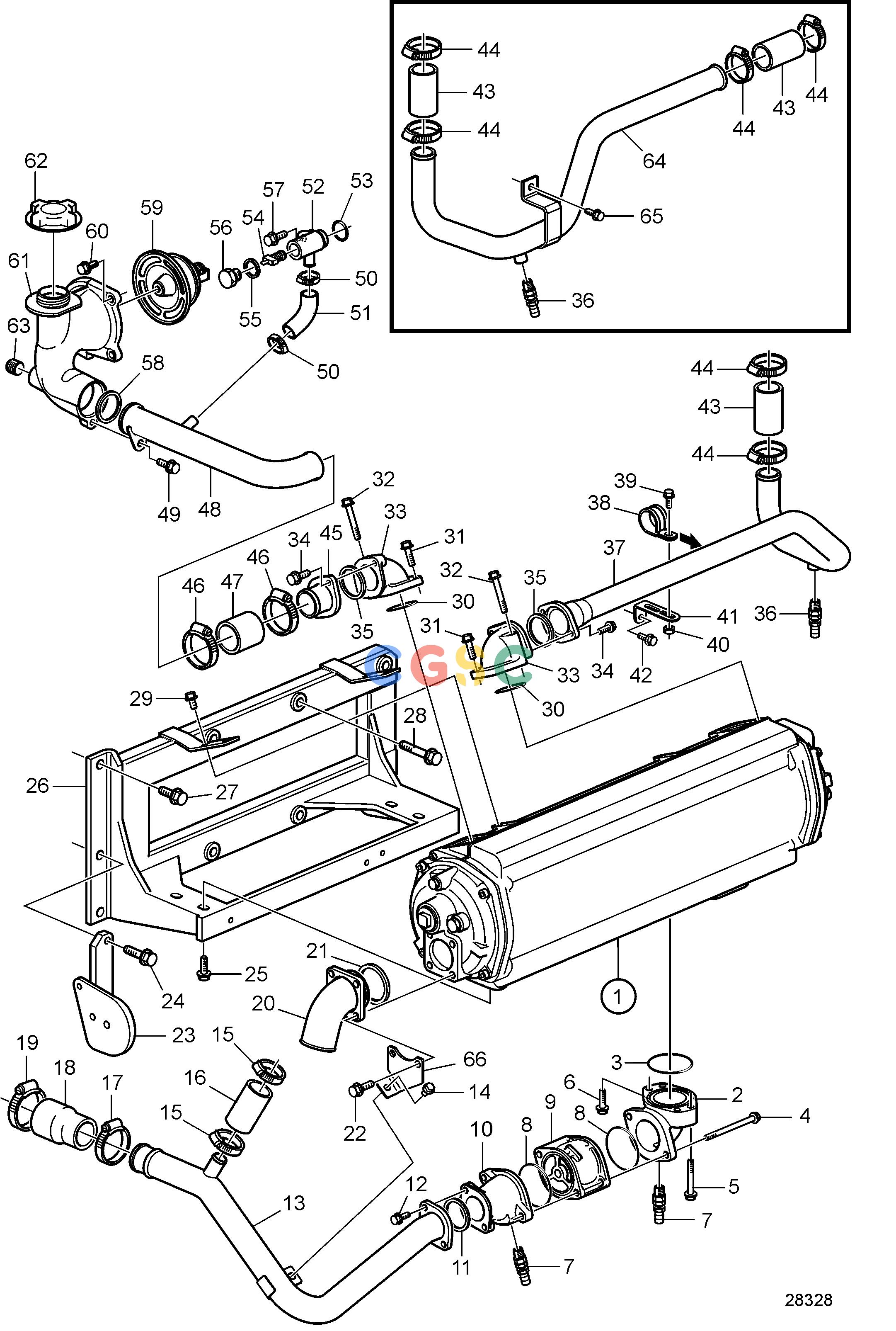

沃尔沃零件查询D16C-A MH; D16C-B MH; D16C-C MHCooling SystemHeat Exchanger with Installation PartsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
245 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3819408
|
[1] |
Heat exchanger
|
|
| 1. |
|
|
|
|
| 2. |
3818808
|
[1] |
Pipe connection
|
|
| 3. |
975675
|
[1] |
O-ring
|
|
| 4. |
984743
|
[2] |
Flange screw
|
|
| 5. |
984736
|
[1] |
Flange screw
|
|
| 6. |
984738
|
[1] |
Flange screw
|
|
| 7. |
949918
|
[2] |
Shut-off cock
|
|
| 8. |
925255
|
[2] |
O-ring
|
|
| 9. |
3812314
|
[1] |
Overflow valve
|
|
| 10. |
3809589
|
[1] |
Adapter
|
|
| 11. |
864491
|
[1] |
Gasket
|
|
| 12. |
984734
|
[2] |
Flange screw
|
|
| 13. |
3807111
|
[1] |
Water pipe
|
|
| 14. |
984732
|
[1] |
Flange screw
|
|
| 15. |
961667
|
[2] |
Hose clamp
|
|
| 16. |
969033
|
[1] |
Rubber hose
|
|
| 17. |
961671
|
[1] |
Hose clamp
|
|
| 18. |
3837438
|
[1] |
Collar
|
|
| 19. |
961672
|
[1] |
Hose clamp
|
|
| 20. |
3830255
|
[1] |
Pipe elbow
|
|
| 21. |
843584
|
[1] |
Gasket
|
|
| 22. |
984735
|
[4] |
Flange screw
|
|
| 23. |
3589160
|
[1] |
Bracket
|
|
| 24. |
990809
|
[2] |
Flange screw
|
|
| 25. |
984753
|
[4] |
Flange screw
|
|
| 26. |
3818684
|
[1] |
Bracket
|
|
| 27. |
946817
|
[1] |
Flange screw
|
|
| 28. |
965194
|
[6] |
Flange screw
|
|
| 29. |
984733
|
[4] |
Flange screw
|
|
| 30. |
925069
|
[2] |
O-ring
|
|
| 31. |
984735
|
[2] |
Flange screw
|
|
| 32. |
984740
|
[2] |
Flange screw
|
|
| 33. |
865821
|
[2] |
Pipe connection
|
|
| 34. |
984733
|
[4] |
Flange screw
|
|
| 35. |
864491
|
[2] |
Gasket
|
|
| 36. |
949918
|
[2] |
Shut-off cock
|
|
| 37. |
3841237
|
[1] |
Water pipe
|
|
| 38. |
952640
|
[1] |
Clamp
|
|
| 39. |
984733
|
[1] |
Flange screw
|
|
| 40. |
990939
|
[1] |
Flange nut
|
|
| 41. |
965558
|
[1] |
Bracket
|
|
| 42. |
994385
|
[2] |
Flange screw
|
|
| 43. |
3808196
|
[3] |
Hose
|
|
| 44. |
961669
|
[6] |
Hose clamp
|
|
| 45. |
3819066
|
[1] |
Adapter
|
|
| 46. |
961671
|
[2] |
Hose clamp
|
|
| 47. |
858471
|
[1] |
Hose
|
|
| 48. |
3589049
|
[1] |
Water pipe
|
|
| 49. |
984733
|
[1] |
Flange screw
|
|
| 50. |
961665
|
[2] |
Hose clamp
|
|
| 51. |
3885219
|
[1] |
Hose
|
|
| 52. |
3841640
|
[1] |
Valve
|
|
| 53. |
1547252
|
[1] |
Sealing ring
|
|
| 54. |
3809467
|
[1] |
By-pass valve
|
|
| 55. |
947625
|
[1] |
Gasket
|
|
| 56. |
|
|
|
|
| 57. |
984733
|
[1] |
Flange screw
|
|
| 58. |
1547253
|
[1] |
Sealing ring
|
|
| 59. |
20560252
|
[1] |
Thermostat
|
Replaced by 21412643
|
| 59. |
21412643
|
[1] |
Thermostat
|
Replaced by 22820752
|
| 59. |
22820752
|
[1] |
Thermostat
|
86 Degrees
|
| 60. |
984734
|
[4] |
Flange screw
|
|
| 61. |
3843110
|
[1] |
Cover
|
|
| 62. |
1674922
|
[1] |
Filler cap
|
|
| 63. |
968146
|
[1] |
Plug
|
|
| 64. |
3841239
|
[1] |
Water pipe
|
|
| 65. |
984733
|
[1] |
Flange screw
|
|
| 66. |
3883586
|
[1] |
Bracket
|
|
