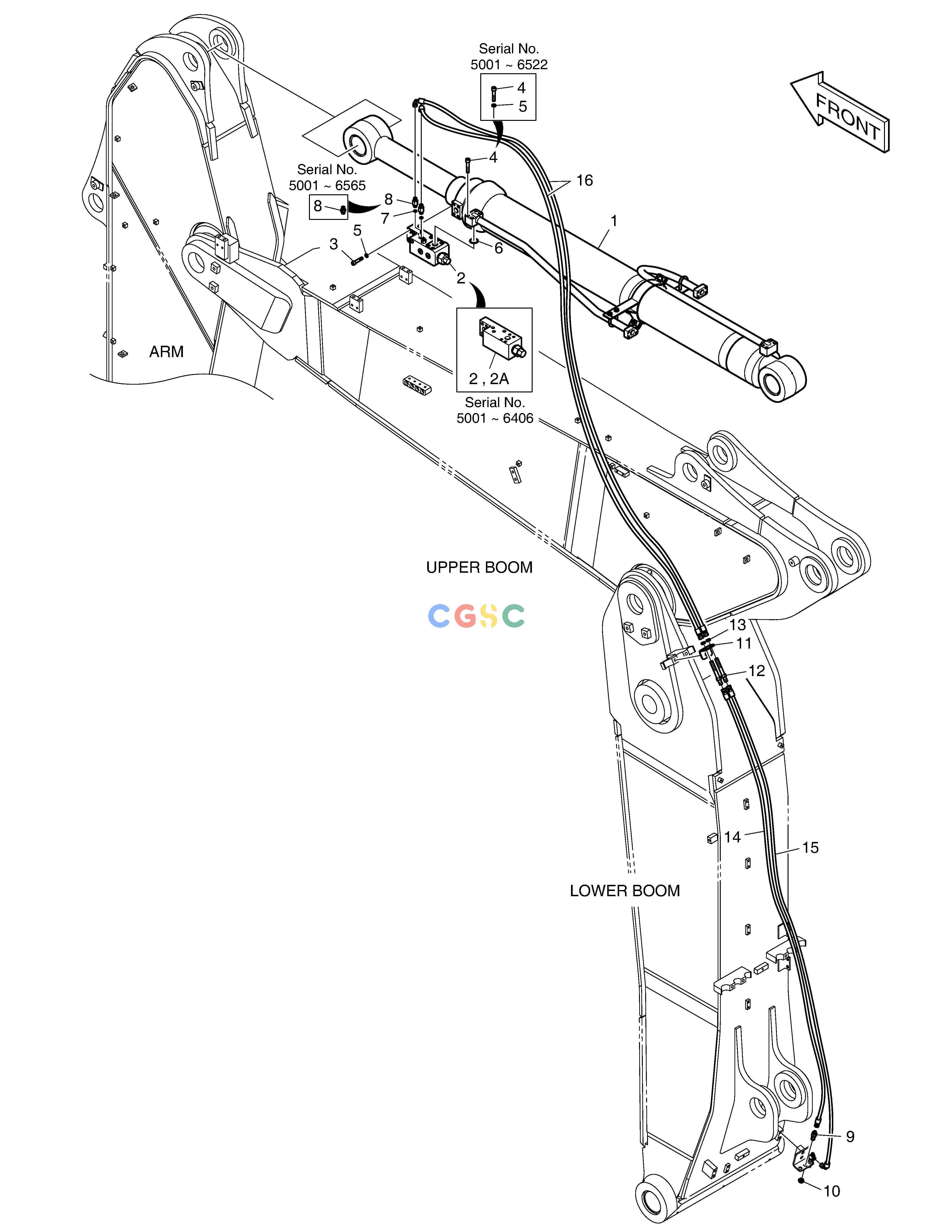

斗山零件查询ARTI. ARM PIPING - LOCK VALVE DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
519 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-02201
|
[-] |
|
|
| 1. |
400306-00017C
|
[1] |
|
|
| 1. |
400306-00017E
|
[1] |
|
|
| 1. |
400306-00017
|
[1] |
|
400306-00017A
|
| 1. |
400306-00017A
|
[1] |
|
400306-00017B
|
| 1. |
400306-00017B
|
[1] |
|
|
| 10. |
121-00010D1
|
[1] |
NUT
|
|
| 11. |
K1030371
|
[1] |
BRACKET
|
|
| 12. |
K1000356
|
[2] |
ADAPTER
|
|
| 13. |
121-00010D7
|
[2] |
NUT
|
|
| 14. |
DS2053986
|
[1] |
HOSE
|
|
| 15. |
DS20551047
|
[1] |
HOSE
|
|
| 16. |
2184-1046D216
|
[2] |
HOSE
|
|
| 2. |
410114-00201A
|
[1] |
|
|
| 2. |
420-00004A
|
[1] |
VALVE;LOCK
|
|
| 2. |
K1052379
|
[1] |
|
|
| 2. |
410114-00201
|
[1] |
|
|
| 2A. |
K9000999
|
[1] |
SEAL KIT
|
|
| 3. |
S2215766
|
[4] |
BOLT
|
|
| 4. |
S2215566
|
[4] |
BOLT;SOCKET
|
|
| 4. |
S2215866
|
[4] |
BOLT;SOCKET M12X1.75X60
|
|
| 5. |
S5110703
|
[8] |
WASHER
|
|
| 5. |
S5110703
|
[4] |
WASHER
|
|
| 6. |
2180-1026D19
|
[1] |
O-RING
|
DS2856003
|
| 6. |
DS2856003
|
[1] |
O-RING
|
|
| 7. |
S8000111
|
[2] |
O-RING
|
|
| 8. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 8. |
2181-1126D75
|
[2] |
ADAPTER
|
|
| 9. |
181-00078D5
|
[1] |
ADAPTER
|
|
